SAP ABAP Table CRMT_6510_SERVICE_UI (Item Data (Grid))

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF (Application Component) Basic Functions for Business Transactions
     ⤷ CRM_USERFACE (Package) User Interface One Order

Basic Data

Table Category	INTTAB	Structure

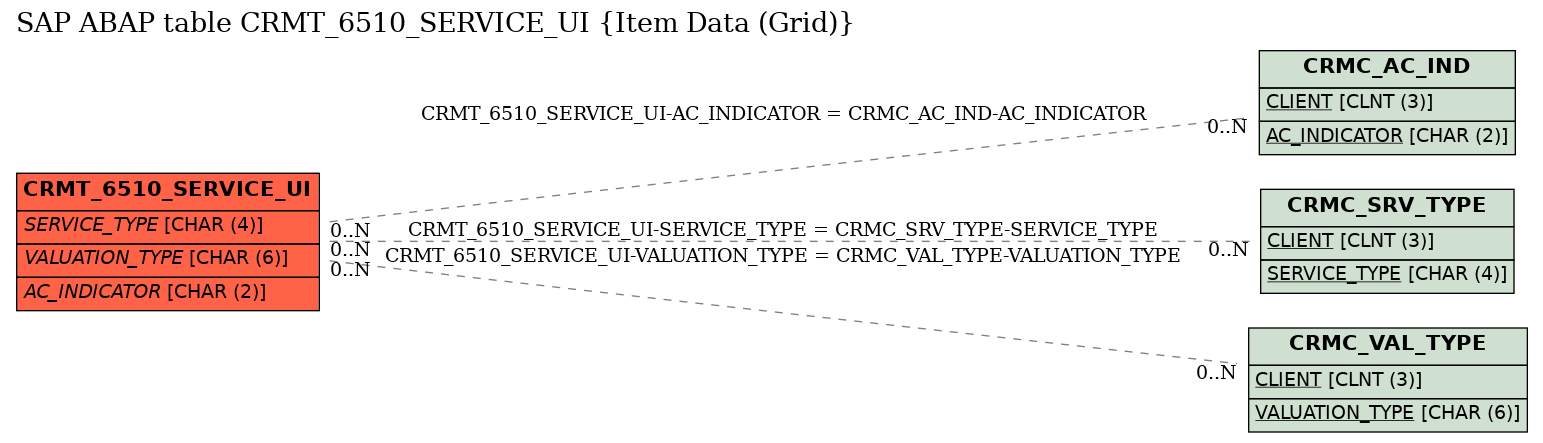

Structure	CRMT_6510_SERVICE_UI	Table Relationship Diagram
Short Description	Item Data (Grid)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Management of Interface Structures
2	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
3	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
4	SCHED_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	NUMBER_INT	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document
6	OSSET_HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
7	OSSET_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
8	SUBJECT_HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
9	SUBJECT_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
10	ORDERED_PROD	☐	CRMT_ORDERED_PROD	CRM_ORDERED_PROD	CHAR	54	0	Product Name Entered
11	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
12	ITM_TYPE	☐	CRMT_ITEM_TYPE	CRM_ITEM_TYPE	CHAR	4	0	Item Category	*
13	QUANTITY	☐	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
14	QTY_UNIT	☐	CRMT_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Which the Product Is Sold	*
15	FROM_TIME_IO	☐	TZTF_IO_FIELD	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
16	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
17	ORDER_QTY	☐	CRMT_QTY_ORDER	MENG13	QUAN	13	3	CRM: Order Quantity
18	CONFIRMED_QTY	☐	CRMT_QTY_CONFIRMED	MENG13	QUAN	13	3	CRM: Confirmed Quantity
19	NUMBER_PARENT	☐	CRMT_ITEM_NO_PARENT	CRM_ITEM_NO	NUMC	10	0	Higher-Level Item Number in Transaction
20	BILLING_BLOCK	☐	CRMT_BILL_BLOCK_TEXT	TEXT20	CHAR	20	0	Billing Block
21	ITEM_TYPE_TEXT	☐	CRMT_ITM_TYPE_DESC	TEXT40	CHAR	40	0	Item Category Text
22	KATALOGART	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	*
23	CODEGRUPPE	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
24	CODE	☐	QCODE	QCODE	CHAR	4	0	Code	*
25	DEFECTCLASS	☐	CRMT_DEFECTCLASS	CRM_DEFECTCLASS	CHAR	2	0	Defect Class	*
26	QUALITY	☐	CRMT_QUALITY	CRM_BOOLEAN	CHAR	1	0	Quality Defect
27	DEFQUANTITY	☐	CRMT_DEFQUANTITY	CRM_DEFQUANTITY	INT4	10	0	Defect Count
28	KURZTEXT	☐	CRMT_DEF_REASON	CHAR80	CHAR	80	0	Error Reason
29	ITM_PROC_IDENT	☐	CRMT_ITM_PROC_IDENT	CRM_ITM_PROC_IDENT	CHAR	4	0	Process Identifier
30	BILLED_QTY	☐	CRMT_BILLED_QTY	CRM_MENGV15	QUAN	15	3	Billed Quantity
31	BILLED_VALUE	☐	CRMT_BILLED_VALUE	CRM_COND_VALUE	CURR	19	2	Billed Value
32	BILL_CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	*
33	STATUS_TXT	☐	J_TXT30	TEXT30	CHAR	30	0	Object status
34	PRODUCT	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
35	SERVICE_TYPE	☐	CRMT_SERVICE_TYPE	CRMT_SERVICE_TYPE	CHAR	4	0	Service Type	CRMC_SRV_TYPE
36	VALUATION_TYPE	☐	CRMT_VALUATION_TYPE	CRMT_VALUATION_TYPE	CHAR	6	0	Valuation Type	CRMC_VAL_TYPE
37	CONFIRM_RELEVANT	☐	CRMT_CONFIRM_RELEVANT	CRM_BOOLEAN	CHAR	1	0	Relevant for Confirmation
38	DISPO_FLG	☐	CRMT_SRV_DISPO_FLG	FLAG	CHAR	1	0	Relevant for Resource Planning
39	BILLING_RELEVANT	☐	CHAR80	CHAR80	CHAR	80	0	Char 80
40	AC_INDICATOR	☐	CRMT_AC_INDICATOR	CRMT_AC_INDICATOR	CHAR	2	0	Accounting Indicator	CRMC_AC_IND
41	QUANTITY_RECEIVED	☐	CRMT_REC_QUAN	MENG13	QUAN	13	3	Quantity Received by Customer
42	QUANTITY_APPROVED	☐	CRMT_APP_QUAN	MENG13	QUAN	13	3	Approved Quantity
43	INVOICE_NO	☐	CRMT_INVOICE_NO	CRM_OBJECT_ID	CHAR	10	0	Billing Document Number
44	INVOICE_POS	☐	CRMT_INV_POS	CRM_OBJECT_ID	CHAR	10	0	Billing Item Number
45	INV_QUAN	☐	CRMT_INV_QTY	CRM_MENGV15	QUAN	15	3	Billing Item Quantity
46	NET_VALUE	☐	CRMT_NET_VALUE	WERTV8	CURR	15	2	Net Value
47	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	*
48	RET_PROC_IND	☐	PROCESS_INDICATOR	PROCESS_INDICATOR	CHAR	1	0	Process Indicator
49	QUANTITY_HU	☐	CRMT_HU_QTY	CRM_MENGV15	QUAN	15	3	HU Quantity

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_6510_SERVICE_UI	AC_INDICATOR	CRMC_AC_IND	AC_INDICATOR
2	CRMT_6510_SERVICE_UI	SERVICE_TYPE	CRMC_SRV_TYPE	SERVICE_TYPE
3	CRMT_6510_SERVICE_UI	VALUATION_TYPE	CRMC_VAL_TYPE	VALUATION_TYPE

History

Last changed by/on	SAP	20130604
SAP Release Created in	30A
