SAP ABAP Table CRMT_5510_ALV_SERVICE_UI (Service Confirmation Service Item Data - Grid Control)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF (Application Component) Basic Functions for Business Transactions
     ⤷ CRM_USERFACE (Package) User Interface One Order

Basic Data

Table Category	INTTAB	Structure

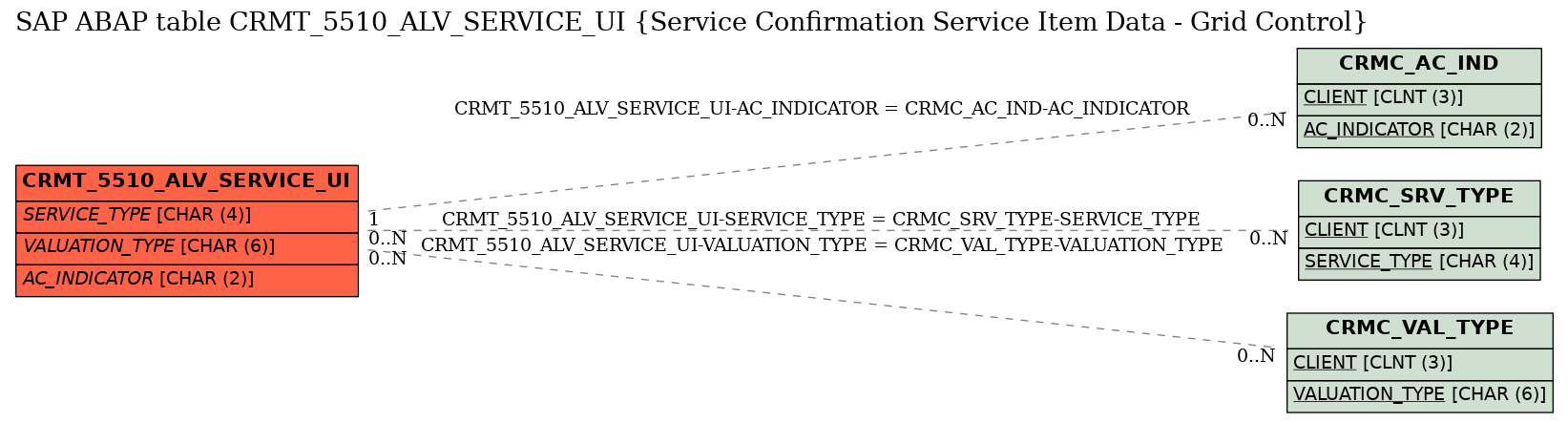

Structure	CRMT_5510_ALV_SERVICE_UI	Table Relationship Diagram
Short Description	Service Confirmation Service Item Data - Grid Control

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Service Confirmation - Service Product Items
2	.INCLUDE	☐				0	0	Management of Interface Structures
3	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
4	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
5	SELECTION_MARK	☐	CRMT_SELECTION_MARK	CRM_SELECTION_MARK	CHAR	1	0	Selection Indicator for Table Controls
6	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
7	OBJECT_TYPE	☐	CRMT_SWO_OBJTYP_PROCESS_ITEM	CRM_OJ_NAME_PROCESS_ITEM	CHAR	10	0	CRM Item Object Type	*
8	SCHED_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
9	ASSIGN_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
10	ORDER_NUMBER	☐	CRMT_OBJECT_ID_SRV	CRM_OBJECT_ID	CHAR	10	0	Service Process Number
11	ORDER_ITEM	☐	CRMT_ITEM_NO_SRV	CRM_ITEM_NO	NUMC	10	0	Transaction Item Number in Document
12	NUMBER_INT	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document
13	NUMBER_PARENT	☐	CRMT_ITEM_NO_PARENT	CRM_ITEM_NO	NUMC	10	0	Higher-Level Item Number in Transaction
14	ORDERED_PROD	☐	CRMT_ORDERED_PROD	CRM_ORDERED_PROD	CHAR	54	0	Product Name Entered
15	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
16	FLG_ASSIGN	☐	CRMT_FLG_ASSIGN	FLAG	CHAR	1	0	Confirmed Item Is an Assignment
17	ITM_TYPE	☐	CRMT_ITEM_TYPE_CONF_SRV	CRM_ITEM_TYPE	CHAR	4	0	Item Category for Service Product	*
18	QUANTITY	☐	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
19	QTY_UNIT	☐	CRMT_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Which the Product Is Sold	*
20	DURATION	☐	CRMT_SRV_CONF_DURATION	DAUER_5_2	QUAN	7	2	Confirmed Duration
21	TIME_UNIT	☐	CRMT_SRV_CONF_TIME_UNIT	MEINS	UNIT	3	0	Time Unit for Confirmed Duration	*
22	TIME_OUT_FROM	☐	CRMT_SRV_BEG_TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Start of Work
23	TIME_OUT_TO	☐	CRMT_SRV_END_TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	End of Work
24	CONTEXT	☐	TIMECONT	TIMECONT	CHAR	12	0	Name of Date Profile
25	SERVICE_TYPE	☐	CRMT_SERVICE_TYPE	CRMT_SERVICE_TYPE	CHAR	4	0	Service Type	CRMC_SRV_TYPE
26	VALUATION_TYPE	☐	CRMT_VALUATION_TYPE	CRMT_VALUATION_TYPE	CHAR	6	0	Valuation Type	CRMC_VAL_TYPE
27	PROC_IDENT	☐	CRMT_ITM_PROC_IDENT	CRM_ITM_PROC_IDENT	CHAR	4	0	Process Identifier
28	AC_INDICATOR	☐	CRMT_AC_INDICATOR	CRMT_AC_INDICATOR	CHAR	2	0	Accounting Indicator	CRMC_AC_IND
29	PRODUCT	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
30	CELL	☐	LVC_T_STYL		TTYP	0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_5510_ALV_SERVICE_UI	AC_INDICATOR	CRMC_AC_IND	AC_INDICATOR		1	CN
2	CRMT_5510_ALV_SERVICE_UI	SERVICE_TYPE	CRMC_SRV_TYPE	SERVICE_TYPE
3	CRMT_5510_ALV_SERVICE_UI	VALUATION_TYPE	CRMC_VAL_TYPE	VALUATION_TYPE

History

Last changed by/on	SAP	20130604
SAP Release Created in	20C
