SAP ABAP Table CRMST_DOCFLOW_BTIL (Attribute Document Flow)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BTIL_OBJ (Package) Objects of the Transaction Interaction Layer

Basic Data

Table Category	INTTAB	Structure

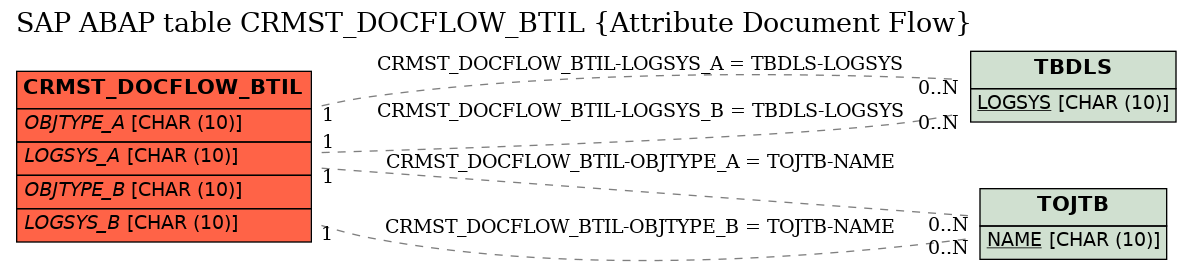

Structure	CRMST_DOCFLOW_BTIL	Table Relationship Diagram
Short Description	Attribute Document Flow

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Object reference structure
2	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
3	.INCLU-_A	☐				0	0	Identification of Transaction Object
4	OBJKEY_A	☐	CRMT_DOC_FLOW_ID_WRK	SWO_TYPEID	CHAR	70	0	Identification of a Reference Object for Header AND Item
5	OBJTYPE_A	☐	SWO_OBJTYP	OJ_NAME	CHAR	10	0	Object Type	TOJTB
6	LOGSYS_A	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	TBDLS
7	.INCLU-_B	☐				0	0	Identification of Transaction Object
8	OBJKEY_B	☐	CRMT_DOC_FLOW_ID_WRK	SWO_TYPEID	CHAR	70	0	Identification of a Reference Object for Header AND Item
9	OBJTYPE_B	☐	SWO_OBJTYP	OJ_NAME	CHAR	10	0	Object Type	TOJTB
10	LOGSYS_B	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	TBDLS
11	VONA_KIND	☐	CRMT_VONA_KIND	CRMT_VONA_KIND	CHAR	1	0	Type of binary relationship types VONA
12	RELTYPE	☐	BINRELTYP	BINRELTYP	CHAR	4	0	Relationship type	*
13	BREL_KIND	☐	CRMT_BREL_KIND	CRMT_BREL_KIND	CHAR	1	0	Type of interlinked objects
14	RELATED_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
15	RELATIONID	☐	BINRELID	SYSUUID_22	CHAR	22	0	Object Relationship Service : GUID binary link
16	POSNO	☐	CRMT_POSNO	NUMC6	NUMC	6	0	Item Number in Document Flow
17	UTCTIME	☐	TZNTSTMPS	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
18	.INCLUDE	☐				0	0	Doc Flow: External Fields
19	.INCLUDE	☐				0	0	Quantity and Value Fields for Item Interlinkage
20	QUANTITY	☐	CRMT_QUANTITY	CRM_MENGV15	QUAN	15	3	Quantity in Doc.Flow
21	QUANTITY_UNIT	☐	CRMT_QUANTITY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Doc.Flow	*
22	VALUE	☐	CRMT_DOC_FLOW_VALUE	CRM_COND_VALUE	CURR	19	2	Value in Document Flow
23	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	*
24	DATE	☐	CRMT_DOC_FLOW_DATE	BCOS_TSTMP	DEC	15	0	Date and Time in Document Flow
25	DOC_INFO	☐	CRMT_DOC_FLOW_DOC_INFO		CHAR	1	0	Additional Information About Billing Transaction
26	QTY_DIFFERENCE	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
27	INVALID	☐	CRMT_INVALID	CRM_INVALID	CHAR	1	0	Document Flow: Invalid Assignment
28	SECONDARY	☐	CRMT_SECONDARY	XFELD	CHAR	1	0	Document Flow: Secondary Object
29	SEQNO	☐	CRMT_SEQNO	CRM_SEQNO	NUMC	4	0	CRM: Sequence Number
30	PLNK_KIND	☐	CRMT_PLNK_KIND	CRM_PLNK_KIND	CHAR	2	0	Type of Binary Relationships: Pool Linkage Types	*
31	DATE_FROM	☐	CRMT_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time)
32	DATE_TO	☐	CRMT_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time)
33	STAT	☐	CRMT_STATUS_DOC_FLOW	CRM_STATUS_DOC_FLOW	CHAR	2	0	Status of Time-Dependent Document Linkage	*
34	PNT_RELTYPE	☐	CRMT_PNT_RELTYPE	CRM_PNT_RELTYPE	CHAR	10	0	Relationship Type	*
35	VOUCHER_CODE	☐	CRM_MKTPL_VOUCHER_CODE	CRM_MKTPL_VOUCHER_CODE	CHAR	30	0	Voucher Code
36	DERIV_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
37	REL_OBJ_ID_EXT	☐	CRMT_EXT_OBJ_NAME	CRM_OBJEXT_NAME	CHAR	30	0	External Name of Object

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMST_DOCFLOW_BTIL	LOGSYS_A	TBDLS	LOGSYS	KEY	1	CN
2	CRMST_DOCFLOW_BTIL	LOGSYS_B	TBDLS	LOGSYS	KEY	1	CN
3	CRMST_DOCFLOW_BTIL	OBJTYPE_A	TOJTB	NAME	KEY	1	CN
4	CRMST_DOCFLOW_BTIL	OBJTYPE_B	TOJTB	NAME	KEY	1	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	310
