SAP ABAP Table CRMS_SSC_SUBJECT_DIS (Subject - displaying structure)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IC-ACO (Application Component) Accounting
     ⤷ CRM_IC_APPL_SSC_APPL_SR_API (Package) SSC - Remote API for the Service Request

Basic Data

Table Category	INTTAB	Structure

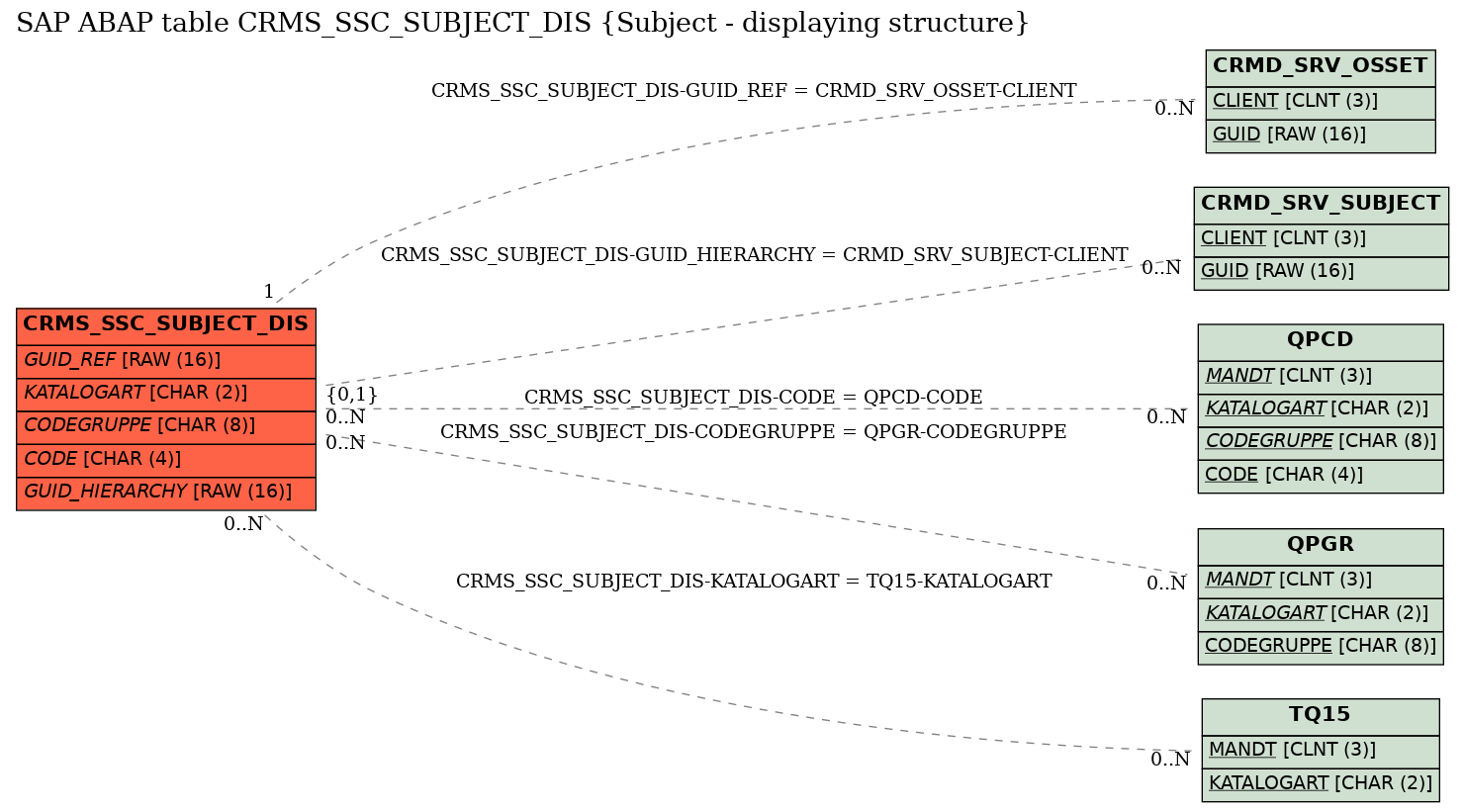

Structure	CRMS_SSC_SUBJECT_DIS	Table Relationship Diagram
Short Description	Subject - displaying structure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	GUID	☐	CRMT_OBJECT_GUID_C	SYSUUID_C	CHAR	32	0	GUID of a CRM Order Object, 32 Bit Characters
2	REF_GUID	☐	CRMT_OBJECT_GUID_C	SYSUUID_C	CHAR	32	0	GUID of a CRM Order Object, 32 Bit Characters
3	REF_KIND	☐	CRMT_OBJECT_KIND	CRM_OBJECTKIND	CHAR	1	0	Object Type
4	SUBJECT_PROFILE	☐	CRMT_SUBJECT_PROFILE	CRM_SUBJECT_PROFILE	CHAR	9	0	Subject Profile	*
5	PROFILE_TYPE	☐	CRMT_SUBJECT_PROFILE_TYPE	CRM_SUBJECT_PROFILE_TYPE	CHAR	2	0	Subject Profile Category
6	GUID_REF	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object	CRMD_SRV_OSSET
7	USERNAME	☐	SYUNAME	SYCHAR12	CHAR	12	0	User Name
8	TIMESTAMP	☐	CRMT_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time)
9	KATALOGART	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	TQ15
10	CODEGRUPPE	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
11	CODE	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
12	DEFECTCLASS	☐	CRMT_DEFECTCLASS	CRM_DEFECTCLASS	CHAR	2	0	Defect Class	*
13	QUALITY	☐	CRMT_QUALITY	CRM_BOOLEAN	CHAR	1	0	Quality Defect
14	DEFQUANTITY	☐	CRMT_DEFQUANTITY	CRM_DEFQUANTITY	INT4	10	0	Defect Count
15	GUID_HIERARCHY	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object	CRMD_SRV_SUBJECT
16	SORT	☐	CRMT_SORT	CRM_SORT	INT2	5	0	Sort Field
17	EXT_CODE	☐	CRMT_TSRV_EXT_CODE	CRMT_TSRV_EXT_CODE	CHAR	40	0	Code in External System
18	ASP_ID	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
19	CAT_ID	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
20	KATALOG_TYPE	☐	CRMT_CATALOGTYPE	CRM_CATALOGTYPE	CHAR	1	0	Catalog Category
21	KATALOGTXT	☐	QTXTCATALG	QKURZTEXT	CHAR	40	0	Short Text for the Catalog
22	SCHLAGWORT	☐	QSWORTPK	QSWORTPK	CHAR	12	0	Keyword for Catalog Type
23	GROUPTEXT	☐	QKTEXTGR	QKURZTEXT	CHAR	40	0	Code Group Description
24	KURZTEXT	☐	QKTEXTGRCD	QKURZTEXT80	CHAR	80	0	Code Group Short Text
25	CODETEXT	☐	QTXT_CODE	QKURZTEXT	CHAR	40	0	Short Text for Code
26	CATALOG_TYPE	☐	CRMT_CATALOGTYPE	CRM_CATALOGTYPE	CHAR	1	0	Catalog Category
27	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
28	SELECT	☐	XFELD	XFELD	CHAR	1	0	Checkbox
29	CODEPROFILE	☐	CRMT_CODEGROUPS	CRM_CODEGROUPS	CHAR	9	0	Code Group Profile for Catalog
30	LISTCODE	☐	CRMT_SRV_SERVICE_CODE_LIST	CHAR14	CHAR	14	0	Code

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMS_SSC_SUBJECT_DIS	CODE	QPCD	CODE
2	CRMS_SSC_SUBJECT_DIS	CODEGRUPPE	QPGR	CODEGRUPPE
3	CRMS_SSC_SUBJECT_DIS	GUID_HIERARCHY	CRMD_SRV_SUBJECT	CLIENT	REF	C	CN
4	CRMS_SSC_SUBJECT_DIS	GUID_REF	CRMD_SRV_OSSET	CLIENT	KEY	1	CN
5	CRMS_SSC_SUBJECT_DIS	KATALOGART	TQ15	KATALOGART

History

Last changed by/on	SAP	20130604
SAP Release Created in	701
