SAP ABAP Table CRMS_SSC_SERVICE_I_INS (Service Item - inserting structure)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IC-ACO (Application Component) Accounting
     ⤷ CRM_IC_APPL_SSC_APPL_SR_API (Package) SSC - Remote API for the Service Request

Basic Data

Table Category	INTTAB	Structure

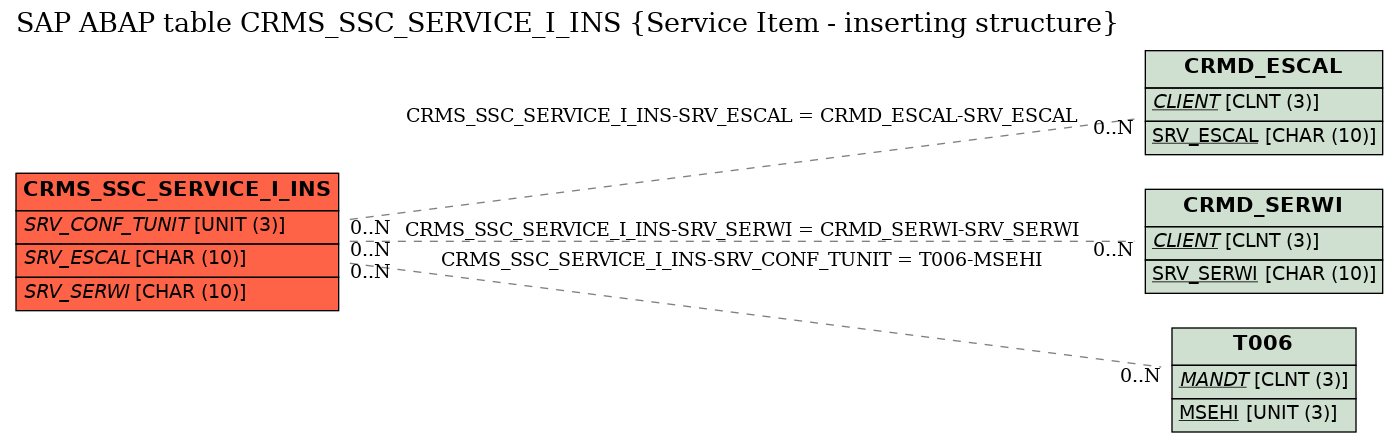

Structure	CRMS_SSC_SERVICE_I_INS	Table Relationship Diagram
Short Description	Service Item - inserting structure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	REF_HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
2	DISPO_FLG	☐	CRMT_SRV_DISPO_FLG	FLAG	CHAR	1	0	Relevant for Resource Planning
3	CONFIRM_RELEVANT	☐	CRMT_CONFIRM_RELEVANT	CRM_BOOLEAN	CHAR	1	0	Relevant for Confirmation
4	INSPEC_RELEVANT	☐	CRMT_INSPECTION_RELEVANT	CRM_BOOLEAN	CHAR	1	0	Relevant for Inspection
5	SRV_CONF_TIME	☐	CRMT_SRV_CONF_DURATION	DAUER_5_2	QUAN	7	2	Confirmed Duration
6	SRV_CONF_TUNIT	☐	CRMT_SRV_CONF_TIME_UNIT	MEINS	UNIT	3	0	Time Unit for Confirmed Duration	T006
7	ASSIGNMENT_GUID	☐	CRMT_OBJECT_GUID_C	SYSUUID_C	CHAR	32	0	GUID of a CRM Order Object, 32 Bit Characters
8	SERVICE_TYPE	☐	CRMT_SERVICE_TYPE	CRMT_SERVICE_TYPE	CHAR	4	0	Service Type	*
9	VALUATION_TYPE	☐	CRMT_VALUATION_TYPE	CRMT_VALUATION_TYPE	CHAR	6	0	Valuation Type	*
10	SRV_ESCAL	☐	CRMT_SRV_ESCAL	CRM_SRV_ESCAL	CHAR	10	0	Response Profile	CRMD_ESCAL
11	SRV_SERWI	☐	CRMT_SRV_SERWI	CRM_SRV_SERWI	CHAR	10	0	Service Profile	CRMD_SERWI
12	SRV_RULE_ID	☐	SC_RULEID	TEXT25	CHAR	25	0	Internal Identification of Rules of Periodic Appointments
13	WARRANTY	☐	COMT_PRODUCT_GUID_C	SYSUUID_C	CHAR	32	0	Unique Indentifier for Product
14	WARRANTY_ID	☐	CRMT_WTY_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Warranty ID
15	SERVICE_I_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
16	REF_GUID	☐	CRMT_OBJECT_GUID_C	SYSUUID_C	CHAR	32	0	GUID of a CRM Order Object, 32 Bit Characters
17	DURATION	☐	CRMT_SRV_DURATION	MENG13	QUAN	13	3	Duration
18	DURATION_UNIT	☐	CRMT_SRV_DURATION_UOM	MEINS	UNIT	3	0	Unit for Duration of Work	*
19	HR_PLVAR	☐	PLVAR	PLVAR	CHAR	2	0	Plan Version	*
20	HR_OTYPE	☐	OTYPE	OTYPE	CHAR	2	0	Object Type	*
21	HR_OBJID	☐	HROBJID	HROBJID	NUMC	8	0	Object ID	*
22	PERSONS	☐	CRMT_SRV_PERSONS	NUMC3	NUMC	3	0	Number of Persons
23	DEMAND_GUID	☐	CRMT_OBJECT_GUID_C	SYSUUID_C	CHAR	32	0	GUID of a CRM Order Object, 32 Bit Characters
24	HR_STEXT	☐	STEXT	TEXT40	CHAR	40	0	Object Name
25	HR_OTEXT	☐	OTEXT	TEXT25	CHAR	25	0	Object Type Text
26	QUANTITY_OLD	☐	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
27	QTY_UNIT_OLD	☐	CRMT_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Which the Product Is Sold	*
28	TIMESTAMP_FROM	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
29	TIMEZONE_FROM	☐	CRMT_TIMEZONE_FROM	TZNZONE	CHAR	6	0	Time Zone for a Start Time	*
30	TIME_OUT_FROM	☐	CRMT_SRV_BEG_TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Start of Work
31	TIMESTAMP_TO	☐	CRMT_DATE_TIMESTAMP_TO	BCOS_TSTMP	DEC	15	0	Time stamp (Date and Time) until a Date/Duration
32	TIMEZONE_TO	☐	CRMT_TIMEZONE_TO	TZNZONE	CHAR	6	0	Time Zone for End Time	*
33	TIME_OUT_TO	☐	CRMT_SRV_END_TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	End of Work
34	TIMEPROFILE	☐	TIMECONT	TIMECONT	CHAR	12	0	Name of Date Profile
35	SCHED_PARAM1	☐	CRM_LRP_SCHEDULING_PARAM_DEF	CRM_LRP_SCHEDULING_PARAM	CHAR	10	0	Definition of Appointment Scheduling Parameters
36	SCHED_PARAM2	☐	CRM_LRP_SCHEDULING_PARAM_DEF	CRM_LRP_SCHEDULING_PARAM	CHAR	10	0	Definition of Appointment Scheduling Parameters
37	SCHED_PARAM3	☐	CRM_LRP_SCHEDULING_PARAM_DEF	CRM_LRP_SCHEDULING_PARAM	CHAR	10	0	Definition of Appointment Scheduling Parameters
38	ORDER_NUMBER	☐	CRMT_OBJECT_ID_SRV	CRM_OBJECT_ID	CHAR	10	0	Service Process Number
39	ORDER_ITEM	☐	CRMT_ITEM_NO_SRV	CRM_ITEM_NO	NUMC	10	0	Transaction Item Number in Document

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMS_SSC_SERVICE_I_INS	SRV_CONF_TUNIT	T006	MSEHI
2	CRMS_SSC_SERVICE_I_INS	SRV_ESCAL	CRMD_ESCAL	SRV_ESCAL
3	CRMS_SSC_SERVICE_I_INS	SRV_SERWI	CRMD_SERWI	SRV_SERWI

History

Last changed by/on	SAP	20130604
SAP Release Created in	701
