SAP ABAP Table CRMS_FS_PROD_PROP_I_EXT (AO FS: Product Proposal Fields)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IFS-BTX (Application Component) Business Transaction
     ⤷ CRM_FS_1O_EXT_NEED (Package) FS Extension for Need Analysis

Basic Data

Table Category	INTTAB	Structure
Structure	CRMS_FS_PROD_PROP_I_EXT	Table Relationship Diagram
Short Description	AO FS: Product Proposal Fields

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	NEED_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object	CRMD_FS_NEED_H
2	NEED_ITEM_ID	☐	CRM_FS_NEED_ITEM_ID	CRM_ITEM_NO	NUMC	10	0	Need Item ID in Banking Opportunity
3	PRODUCT_SELECTED	☐	COMT_BOOLEAN	COM_BOOLEAN	CHAR	1	0	Logical Variable
4	PROD_VALIDITY_START_DATE	☐	DATUM	DATUM	DATS	8	0	Date
5	PROD_VALIDITY_END_DATE	☐	DATUM	DATUM	DATS	8	0	Date
6	INT_RATE_TYPE	☐	CRM_FS_INT_RATE_TYPE	CRM_FS_INT_RATE_TYPE	CHAR	1	0	Interest Rate Type
7	FIN_REQ_VOL1	☐	CRM_FS_AMOUNT	TFM_WRTV12	CURR	23	2	Amount
8	FIN_REQ_VOL2	☐	CRM_FS_AMOUNT	TFM_WRTV12	CURR	23	2	Amount
9	FIN_REQ_VOL_C	☐	CRM_FS_AMOUNT_C	WAERS	CUKY	5	0	Currency	*
10	FIN_REQ_TERM1	☐	CRMT_FS_TERM	CRMT_FS_TERM	NUMC	3	0	Term
11	FIN_REQ_TERM2	☐	CRMT_FS_TERM	CRMT_FS_TERM	NUMC	3	0	Term
12	FIN_REQ_TERMUNIT	☐	CRMT_FS_TIMEUNIT	TIMEUNITNA	CHAR	12	0	Time Unit	*
13	EXP_CONT_START_DATE1	☐	DATUM	DATUM	DATS	8	0	Date
14	EXP_CONT_START_DATE2	☐	DATUM	DATUM	DATS	8	0	Date
15	.INCLUDE	☐				0	0	AO FS: Banking Opportunity extensibility include - Prod Prop
16	CRM_FS_BOP_PROD_PROP_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1

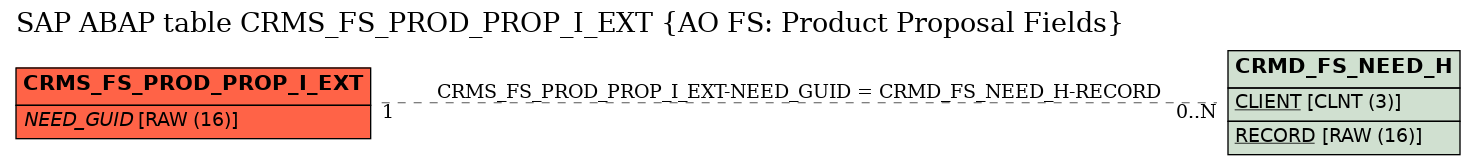

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMS_FS_PROD_PROP_I_EXT	NEED_GUID	CRMD_FS_NEED_H	RECORD	KEY	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	703
