SAP ABAP Table CRMD_UBB_NOTIF_H (Notifications)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-VOL (Application Component) Usage Volumes
     ⤷ CRM_UBB_VOLUME (Package) UBB Volume Document

Basic Data

Table Category	TRANSP	Transparent table

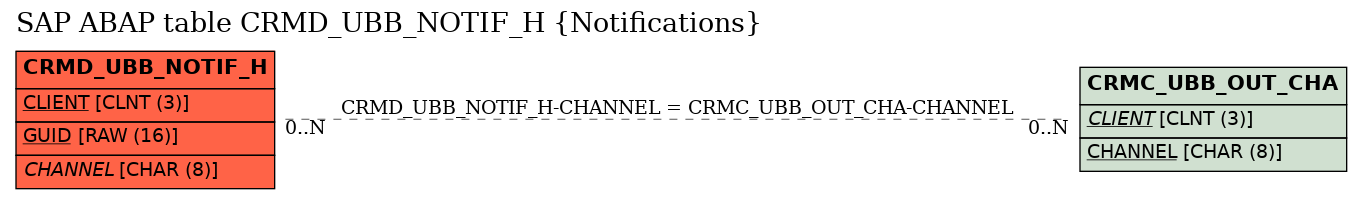

Transparent table	CRMD_UBB_NOTIF_H	Table Relationship Diagram
Short Description	Notifications

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☑				0	0	One Order: Key Fields
2	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
3	GUID	☑	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
4	.INCLUDE	☐				0	0	Notification: Structure of System Fields
5	.INCLUDE	☐				0	0	Time and User of Last Transaction Processing
6	CREATED_AT	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
7	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
8	CHANGED_AT	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
9	CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
10	.INCLUDE	☐				0	0	Notification: Structure of External Fields
11	HEADER	☐	CRMT_ITEM_GUID	SYSUUID	RAW	16	0	Item GUID for a CRM Document
12	ITEM	☐	CRMT_ITEM_GUID	SYSUUID	RAW	16	0	Item GUID for a CRM Document
13	PARTNER_GUID	☐	CRMT_PARTNER_GUID	SYSUUID	RAW	16	0	GUID for an Individual Partner
14	REF_PARTNER_NO	☐	CRMT_PARTNER_NUMBER	CRM_PARTNER_NUMBER	CHAR	20	0	Partner Number for Use Outside Partner Processing
15	.INCLUDE	☐				0	0	Address Data of a Partner
16	ADDR_NR	☐	AD_ADDRNUM	AD_ADDRNUM	CHAR	10	0	Address number	*
17	ADDR_NP	☐	AD_PERSNUM	AD_PERSNUM	CHAR	10	0	Person number	*
18	ADDR_TYPE	☐	AD_ADRTYPE	AD_ADRTYPE	CHAR	1	0	Address type (1=Organization, 2=Person, 3=Contact person)
19	ADDR_ORIGIN	☐	CRMT_ADDR_ORIGIN_MD	CRM_ADDR_ORIGIN_MD	CHAR	1	0	Origin of a Partner Address
20	STD_BP_ADDRESS	☐	CRMT_PARTNER_STD_BP_ADDRESS	XFELD	CHAR	1	0	Standard Business Partner Address (Depending on Addr.Type)
21	ADDR_OPERATION	☐	BU_OPERATION	BU_OPERATION	CHAR	6	0	Transaction for BP Address Determination	*
22	ADDR_NR_SEND	☐	AD_ADDRNUM	AD_ADDRNUM	CHAR	10	0	Address number	*
23	ADDR_NP_SEND	☐	AD_PERSNUM	AD_PERSNUM	CHAR	10	0	Person number	*
24	PRODUCT	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
25	ORDERED_PROD	☐	CRMT_ORDERED_PROD	CRM_ORDERED_PROD	CHAR	54	0	Product Name Entered
26	PARTNER_PROD	☐	CRMT_ITEM_DESCR_PARTNER	PRSHTEXT40	CHAR	40	0	Product Number of Business Partner
27	DATE_FROM	☐	SC_DATEFRO	DATUM	DATS	8	0	Start Date
28	TIMESTAMP_FROM	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
29	TIMEZONE_FROM	☐	CRMT_TIMEZONE_FROM	TZNZONE	CHAR	6	0	Time Zone for a Start Time	*
30	IBIB_GUID	☐	SMO_GUID	SMO_GUID	CHAR	32	0	Global Unique Identifier
31	IBASE	☐	IB_IBASE	IB_INSTANCE	NUMC	18	0	IBase: Number of the Installed Base/IBase
32	IB_COMP_REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
33	IB_INSTANCE	☐	IB_INSTANCE	IB_INSTANCE	NUMC	18	0	IB: Component (instance)
34	IOBJECT_ID	☐	COMT_PRODUCT_OBJECT_ID	COM_PRODUCT_ID	CHAR	40	0	Object ID
35	IOBJECT_GUID	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
36	SETTL_FROM	☐	CRMT_SETTL_FROM	BCOS_TSTMP	DEC	15	0	Start of Settlement for Period
37	SETTL_TO	☐	CRMT_SETTL_TO	BCOS_TSTMP	DEC	15	0	End of Settlement for Period
38	CHANNEL	☐	CRMT_UBB_CHANNEL	CRM_UBB_CHANNEL	CHAR	8	0	Reading Reminder Output Channel	CRMC_UBB_OUT_CHA
39	OUT_MEDIA	☐	CRMT_UBB_OUT_MEDIA	CRM_UBB_OUT_MEDIA	CHAR	8	0	Reading Reminder Messaging Medium
40	PARTNER_FCT	☐	COMT_PARTNER_FCT	COM_PARTNER_FCT	CHAR	8	0	Partner Function
41	FORMNAME	☐	TDSFNAME	TDSFNAME	CHAR	30	0	Smart Forms: Form Name	*
42	PROCESSED	☐	CRMT_UBB_RR_PROCESSED	CRMT_UBB_RR_PROCESSED	CHAR	1	0	Reading Reminder Created
43	PRO_ERROR	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
44	SEQUENCE	☐	CRMT_UBB_SEQUENCE	CRM_UBB_SEQUENCE	CHAR	4	0	Message Sequence for Reading Reminder	*
45	SEQ_ORDER	☐	CRMT_UBB_SEQ_ORDER	CRM_UBB_SEQ_ORDER	NUMC	3	0	Sequence for Reading Reminder
46	CONTRACT_ID	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
47	CONTRACT_ITEM	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document
48	POOL_CONTRACT_ID	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
49	POOL_CONTRACT_IT	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMD_UBB_NOTIF_H	CHANNEL	CRMC_UBB_OUT_CHA	CHANNEL

History

Last changed by/on	SAP	20110908
SAP Release Created in	320
