SAP ABAP Table CRMC_WFDS_PARAM (Mapping of sched. action-params to Rule Engine Customization)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-RPL-SRV (Application Component) Service Resource Planning
     ⤷ CRM_WFDS_RULES (Package) CRM Work Force Deployment Rules

Basic Data

Table Category	TRANSP	Transparent table

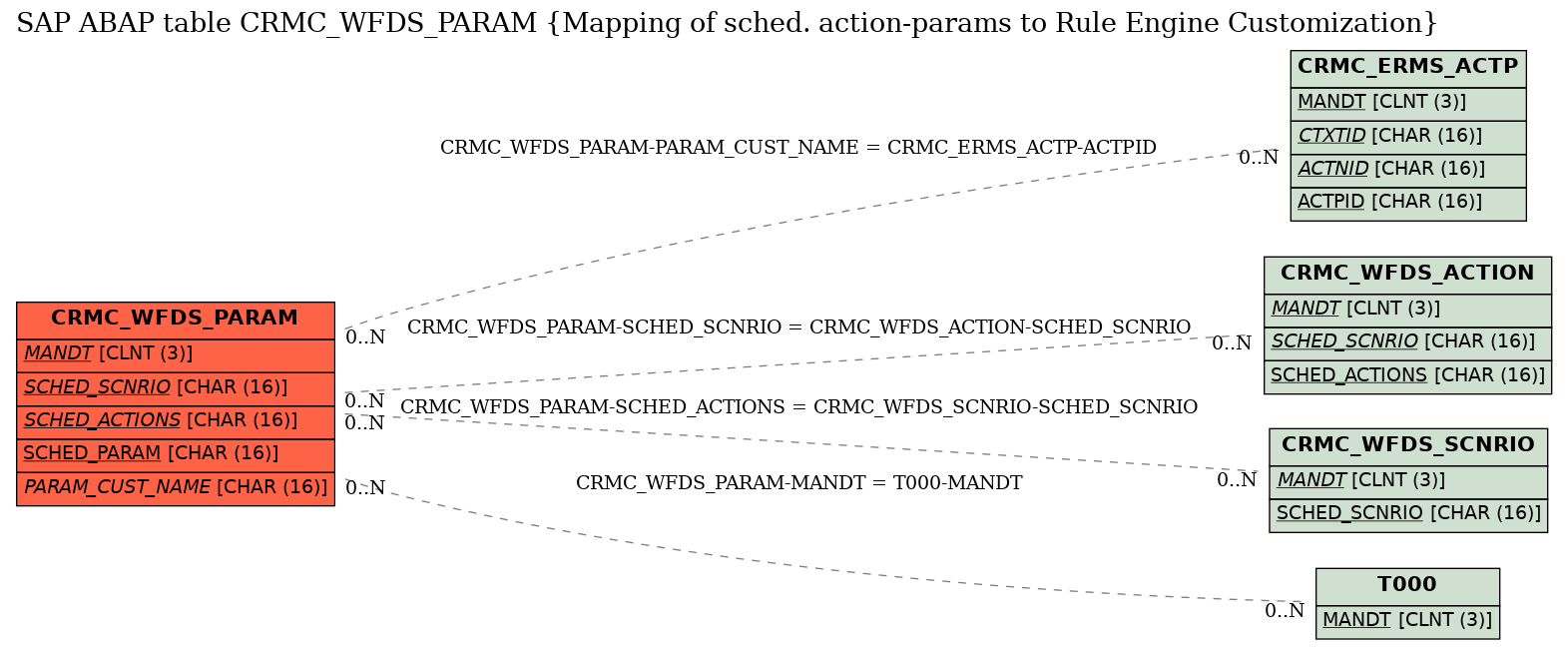

Transparent table	CRMC_WFDS_PARAM	Table Relationship Diagram
Short Description	Mapping of sched. action-params to Rule Engine Customization

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	SCHED_SCNRIO	☑	CRM_ERMS_CTXTID	CRM_ERMS_CHARID	CHAR	16	0	Context	CRMC_WFDS_ACTION
3	SCHED_ACTIONS	☑	CRM_ERMS_ACTNID	CRM_ERMS_CHARID	CHAR	16	0	Action ID	CRMC_WFDS_SCNRIO
4	SCHED_PARAM	☑	CRM_ERMS_ACTPID	CRM_ERMS_ACTPID	CHAR	16	0	Action Parameter ID
5	PARAM_CUST_NAME	☐	CRM_ERMS_ACTPID	CRM_ERMS_ACTPID	CHAR	16	0	Action Parameter ID	CRMC_ERMS_ACTP

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMC_WFDS_PARAM	MANDT	T000	MANDT
2	CRMC_WFDS_PARAM	PARAM_CUST_NAME	CRMC_ERMS_ACTP	ACTPID
3	CRMC_WFDS_PARAM	SCHED_ACTIONS	CRMC_WFDS_SCNRIO	SCHED_SCNRIO
4	CRMC_WFDS_PARAM	SCHED_SCNRIO	CRMC_WFDS_ACTION	SCHED_SCNRIO	KEY

History

Last changed by/on	SAP	20041219
SAP Release Created in	500
