SAP ABAP Table CRMC_ORLALL_BTIL (Customer-defined Object Relations)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BTIL_CUST (Package) Customizing Transaction Object Model

Basic Data

Table Category	TRANSP	Transparent table

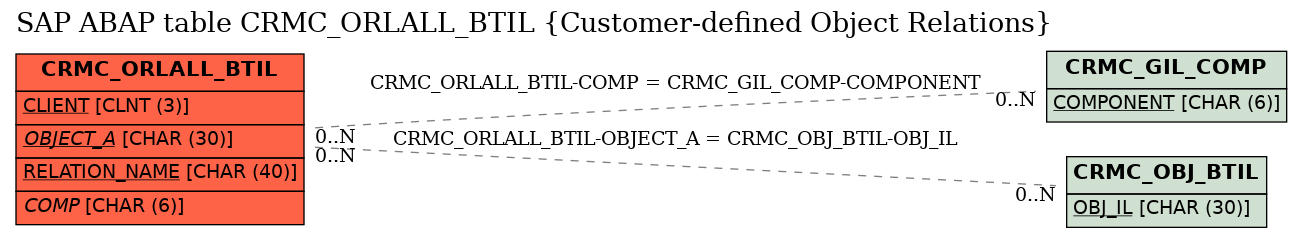

Transparent table	CRMC_ORLALL_BTIL	Table Relationship Diagram
Short Description	Customer-defined Object Relations

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	OBJECT_A	☑	CRMT_EXT_OBJ_A_NAME	CRM_OBJEXT_NAME	CHAR	30	0	External Name of Source Object	CRMC_OBJ_BTIL
3	RELATION_NAME	☑	CRMT_RELATION_NAME	CRM_RELATION_NAME	CHAR	40	0	Relation Name
4	OBJECT_B	☐	CRMT_EXT_OBJ_B_NAME	CRM_OBJEXT_NAME	CHAR	30	0	External Name of Assigned Object
5	CARD_A	☐	CRMT_CARD_A	CRM_CARD	CHAR	1	0	Cardinality of Source Object
6	CARD_B	☐	CRMT_CARD_B	CRM_CARD	CHAR	1	0	Cardinality of the Assigned Object
7	RELATION_KIND	☐	CRMT_RELATION_KIND	CRM_RELATION_KIND	CHAR	1	0	Type of Object Relation
8	COMP	☐	CRMT_COMPONENT_NAME	CRM_COMPONENT_NAME	CHAR	6	0	Component Name	CRMC_GIL_COMP
9	STOREL	☐	CRMDT_ORLSTA_BTIL	CRM_BOOLEAN	CHAR	1	0	Indicator Relating to a Static Relation
10	NOT_WS_ENABLED	☐	CRMT_GENIL_BOOLEAN	CRM_GENIL_BOOLEAN	CHAR	1	0	Logical Variable, Similar To ABAP_BOOL from Type Pool ABAP

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMC_ORLALL_BTIL	COMP	CRMC_GIL_COMP	COMPONENT
2	CRMC_ORLALL_BTIL	OBJECT_A	CRMC_OBJ_BTIL	OBJ_IL

History

Last changed by/on	SAP	20110908
SAP Release Created in	301
