SAP ABAP Table CRM_ISU_EXTENSION_ATTR (Line in a Configuration)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IU-IC (Application Component) Utilities Industry: Interaction Center
     ⤷ CRM_IU_IC_6X_SI_API (Package) Utilities: IC WebClient Sales Integration - API Layer

Basic Data

Table Category	INTTAB	Structure
Structure	CRM_ISU_EXTENSION_ATTR	Table Relationship Diagram
Short Description	Line in a Configuration

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Line in a Configuration
2	.INCLUDE	☐				0	0	Assignment of Master Data Parameters to Customer Enhancemnts
3	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
4	ATTR_NAME	☐	CRM_ISU_ATTR_NAME	CRMT_ISU_ATTR_NAME	CHAR	30	0	Assigned Parameter Name	*
5	OBJECTNAME	☐	CRMT_OBJECT_NAME_EEW	CRM_OBJECTNAME	CHAR	30	0	Business Transaction Component	*
6	FIELDNAME	☐	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*
7	DATA_ELEMENT	☐	ROLLNAME	ROLLNAME	CHAR	30	0	Data element (semantic domain)	DD04L
8	ATTR_USAGE	☐	CRM_ISU_ATTR_USAGE	CRM_ISU_ATTR_USAGE	CHAR	1	0	Changeability/Visibility of an Attribute
9	ATTR_CHANGEABLE	☐	CRM_ISU_ATTR_CHANGEABLE	CRM_ISU_ATTR_CHANGEABLE	CHAR	1	0	Changeability of an Attribute
10	ATTR_PREFILL	☐	CRM_ISU_ATTR_VALUE_PROP	CRM_ISU_ATTR_VALUE_PROP	CHAR	1	0	Default
11	GENVIEW	☐	CRM_IU_GENVIEW	CRM_IU_GENVIEW	CHAR	1	0	Generic Display in IC WebClient
12	VIEW_ID	☐	COMT_PR_VIEW_ID	CHAR16	CHAR	16	0	View ID	*
13	SORT	☐	CRMT_REPORT_DYN_SORT_VALUE	INT1	INT1	3	0	Sort Value
14	MANDATORY	☐	CRMT_ISU_ATTR_MANDATORY	AS4FLAG	CHAR	1	0	Field Is Required (Must Not Be Blank)
15	ATTR_NAME_REF	☐	CRM_ISU_ATTR_NAME_REF	CRMT_ISU_ATTR_NAME	CHAR	30	0	Assigned Parameter Name	CRMC_IU_FLDMAP
16	MULTILINE_VALUE	☐	CRM_ISU_MULTILINE	NUMC2	NUMC	2	0	Multi-Select
17	TIME_DEPENDANT	☐	CRM_ISU_TIMEDEP	CHECKBOX	CHAR	1	0	Time-Dependent
18	VERS_DEPENDANT	☐	CRM_ISU_VERSDEP	CHECKBOX	CHAR	1	0	Version-Dependent
19	APPT_TYPE	☐	CRMT_APPTYPE	SC_APPTTYP	CHAR	12	0	Technical Name for Date Type	*
20	TRANSIENT_VALUE	☐	CRMT_ISU_ATTR_TRANSIENT	CHECKBOX	CHAR	1	0	Value Is not Intended to Be Stored to the Database
21	BRF_RELEVANT	☐	CRMT_ISU_ATTR_BRF_RELEVANT	CHECKBOX	CHAR	1	0	BRFplus-Relevant Value
22	CURRENCY_KEY	☐	WAERS	WAERS	CUKY	5	0	Currency Key	TCURC
23	BASE_UNIT	☐	ISOCD_UNIT	ISOCD_UNIT	CHAR	3	0	ISO code for unit of measurement	*
24	BRF_HELP_VALUES	☐	CRMT_ISU_BRF_VALUE_HELP_NAME	CRMT_ISU_BRF_FUNCTION	CHAR	30	0	BRFplus Function Name
25	BRF_VALUE_CHECKN	☐	CRMT_ISU_BRF_VALUE_CHECK_NAME	CRMT_ISU_BRF_FUNCTION	CHAR	30	0	BRFplus Function Name
26	ISU_COND_TYPE	☐			CHAR	4	0		*
27	ISU_COND_LINE	☐	ISU_PR_COND_LINE	ISU_PR_COND_LINE	INT2	5	0	Price Condition Line
28	REF_FIELD	☐	CRMT_ISU_REFFIELD	CRMT_ISU_ATTR_NAME	CHAR	30	0	Reference Field for Currency and Quantity Fields	CRMC_IU_FLDMAP
29	EXT_VISIBILITY	☐	CRM_ISU_EXT_VISIBILITY	CRM_ISU_EXT_VISIBILITY	CHAR	1	0	Visibility in external services
30	ELEMLENGTH	☐	SWC_LENGTH	SWC_LENGTH	NUMC	3	0	Length of the field in bytes
31	TYPE	☐	SWC_TYPE	INTTYPE	CHAR	1	0	ABAP Type of Element
32	TABNAME	☐	TABNAME	AS4TAB	CHAR	30	0	Table Name	*
33	ROLLNAME	☐	ROLLNAME	ROLLNAME	CHAR	30	0	Data element (semantic domain)	*
34	DOMNAME	☐	DOMNAME	DOMNAME	CHAR	30	0	Domain name	*
35	KIND	☐	ECRM_VALUE_KIND	ECRM_VALUE_KIND	CHAR	1	0	Parameter Type
36	DESCRIPTION	☐	TEXT30	TEXT30	CHAR	30	0	Text (30 Characters)
37	FRGTYPE_ID	☐	COMT_FRGTYPE_ID	CHAR16	CHAR	16	0	Identification of a Set Type
38	VIEW_TEXT	☐	COMT_PR_VIEW_TEXT	COMT_TXT40	CHAR	40	0	Description for Defined Views
39	DISPLAY_ONLY	☐	CRMT_DISPLAY_ONLY	CRM_BOOLEAN	CHAR	1	0	Display only
40	INVISIBLE	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
41	NAME_WRK_STRUC	☐	TYPENAME	OBJECTNAME	CHAR	30	0	Name of Dictionary Type
42	NAME_WRK_TAB	☐	TYPENAME	OBJECTNAME	CHAR	30	0	Name of Dictionary Type
43	VIEW_POSITION	☐	COMT_VIEW_POS	INT2	INT2	5	0	Position of View in Product Maintenance
44	GUID_I	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
45	ITM_TYPE	☐	CRMT_ITM_TYPE	CRMD_ITEM_TYPE	CHAR	4	0	CRM Item Category
46	PRODUCT	☐	GUID_16	SYSUUID	RAW	16	0	GUID in 'RAW' format
47	ATTR_VALUE	☐	CRM_ISU_STRING		STRG	0	0	STRING
48	ATTR_VALUE_TXT	☐			CHAR	70	0
49	VALUE_ERROR	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
50	ATTR_VALUE_OLD	☐			CHAR	40	0
51	NOCOND	☐	CRM_ISU_ATTR_NOCOND	CRM_ISU_ATTR_NOCOND	CHAR	1	0	Not Relevant for Condition Determination
52	BRF_VALS	☐	CRM_ISU_COND_BRF_VAL	CRM_ISU_COND_BRF_VAL	CHAR	32	0	GUID of BRF Function
53	DEF_VALUE_TYPE	☐	CRM_ISU_TARGET_VALTY2	CRM_ISU_TARGET_VALTY2	CHAR	1	0	Value Determination Type
54	DEF_VALUE	☐	CRM_ISU_ATTR_VALUE_	CRM_ISU_ATTR_VALUE_	CHAR	40	0	Default Parameter Value
55	COPY_VALUE	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
56	INVALID	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
57	ISURSLT_MSGTY	☐	MSGTY	MSGAR	CHAR	1	0	Message Type
58	ISURSLT_REASON_TEXT	☐	CRMT_ISU_BRF_ATTR_INVALID_RSN	CRMT_ISU_UPPER_LOWER_STRING	STRG	0	0	Free Text Message
59	BRF_VALUE_CHECK	☐	CRM_ISU_PROD_BRF_VALUE_CHECK	CRM_ISU_COND_BRF_VAL	CHAR	32	0	BRFplus Value Check/ Dynamic Information Function
60	DESCRIPTION_LONG	☐	CRMT_ISU_BRF_ATTR_INVALID_RSN	CRMT_ISU_UPPER_LOWER_STRING	STRG	0	0	Free Text Message
61	FALLBACK	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
62	RENDER_TYPE	☐	CRM_ISU_ATTR_RENDER_TYPE	CRM_ISU_ATTR_RENDER_TYPE	CHAR	1	0	Render Type
63	RANGE_MIN	☐			D34R	34	0
64	RANGE_MAX	☐			D34R	34	0
65	RANGE_STEP	☐			D34R	34	0
66	COMBINE_ATTR	☐	CRM_ISU_STRING		STRG	0	0	STRING
67	ADD_INFO	☐	CRM_ISU_STRING		STRG	0	0	STRING

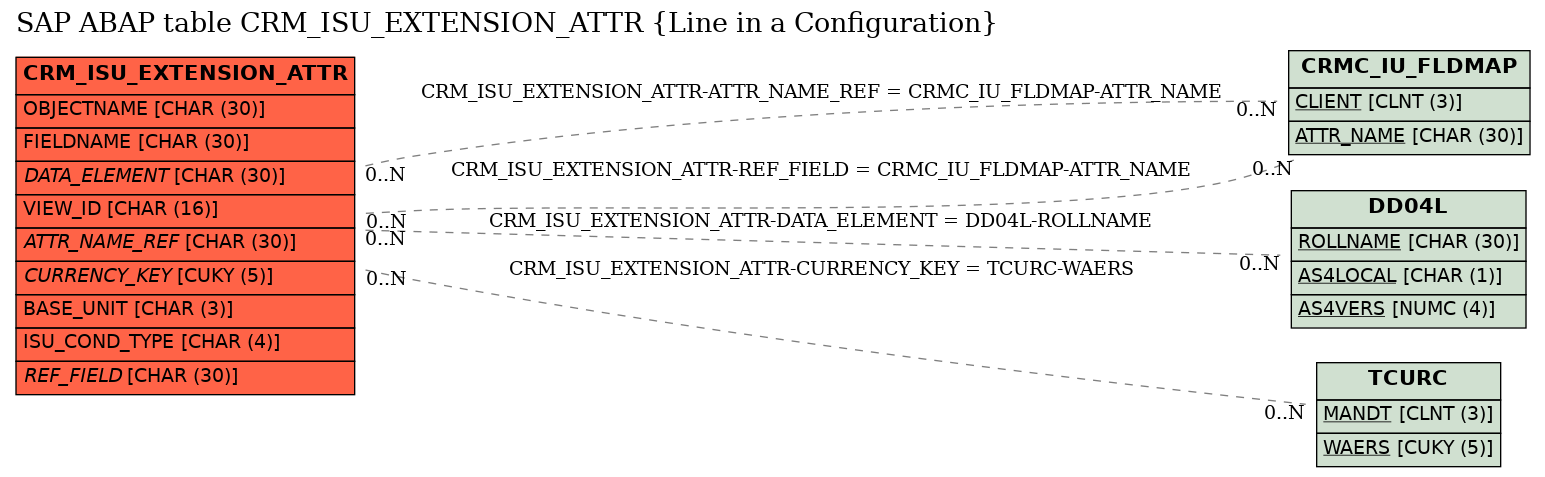

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRM_ISU_EXTENSION_ATTR	ATTR_NAME_REF	CRMC_IU_FLDMAP	ATTR_NAME
2	CRM_ISU_EXTENSION_ATTR	CURRENCY_KEY	TCURC	WAERS
3	CRM_ISU_EXTENSION_ATTR	DATA_ELEMENT	DD04L	ROLLNAME
4	CRM_ISU_EXTENSION_ATTR	REF_FIELD	CRMC_IU_FLDMAP	ATTR_NAME

History

Last changed by/on	SAP	20140117
SAP Release Created in	000
