SAP ABAP Table COM_BSP_BUS1006002_CENTRAL (SAP BP, CP Rel.: BAPI Structure for Central Data)

Hierarchy

☛ SAP_ABA (Software Component) Cross-Application Component
   ⤷ CA-GTF-PCU-BP (Application Component) Dialog People-Centric UI for Business Partner
     ⤷ COM_BSP_MODEL_IL_BP (Package) Central Parts of BP from the BSP Development

Basic Data

Table Category	INTTAB	Structure
Structure	COM_BSP_BUS1006002_CENTRAL	Table Relationship Diagram
Short Description	SAP BP, CP Rel.: BAPI Structure for Central Data

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	FUNCTIONNAME	☐	COMT_BSP_BP_FUNC_DESC	TEXT40	CHAR	40	0	Function Description
2	FUNCTION	☐	BU_PAFKT	BU_PAFKT	CHAR	4	0	Function of partner	TB912
3	DEPARTMENTNAME	☐	COMT_BSP_BP_DEPT_DESC	TEXT40	CHAR	40	0	Department Description
4	DEPARTMENT	☐	BU_ABTNR	BU_ABTNR	CHAR	4	0	Department	TB910
5	AUTHORITY	☐	BU_PAAUTH	BU_PAAUTH	CHAR	1	0	Partner's Authority	TB914
6	VIP	☐	BU_PAVIP	BU_PAVIP	CHAR	1	0	VIP Partner	TB916
7	COMMENTS	☐	BU_PAREM	TEXT40	CHAR	40	0	Notes for Partner
8	TEL1_NUMBR	☐	AD_TLNMBR1	CHAR30	CHAR	30	0	First telephone no.: dialling code+number
9	TEL1_EXT	☐	AD_TLXTNS1	CHAR10	CHAR	10	0	First Telephone No.: Extension
10	FAX_NUMBER	☐	AD_FXNMBR1	CHAR30	CHAR	30	0	First fax no.: dialling code+number
11	FAX_EXTENS	☐	AD_FXXTNS1	CHAR10	CHAR	10	0	First fax no.: extension
12	E_MAIL	☐	AD_SMTPADR	AD_SMTPADR	CHAR	241	0	E-Mail Address

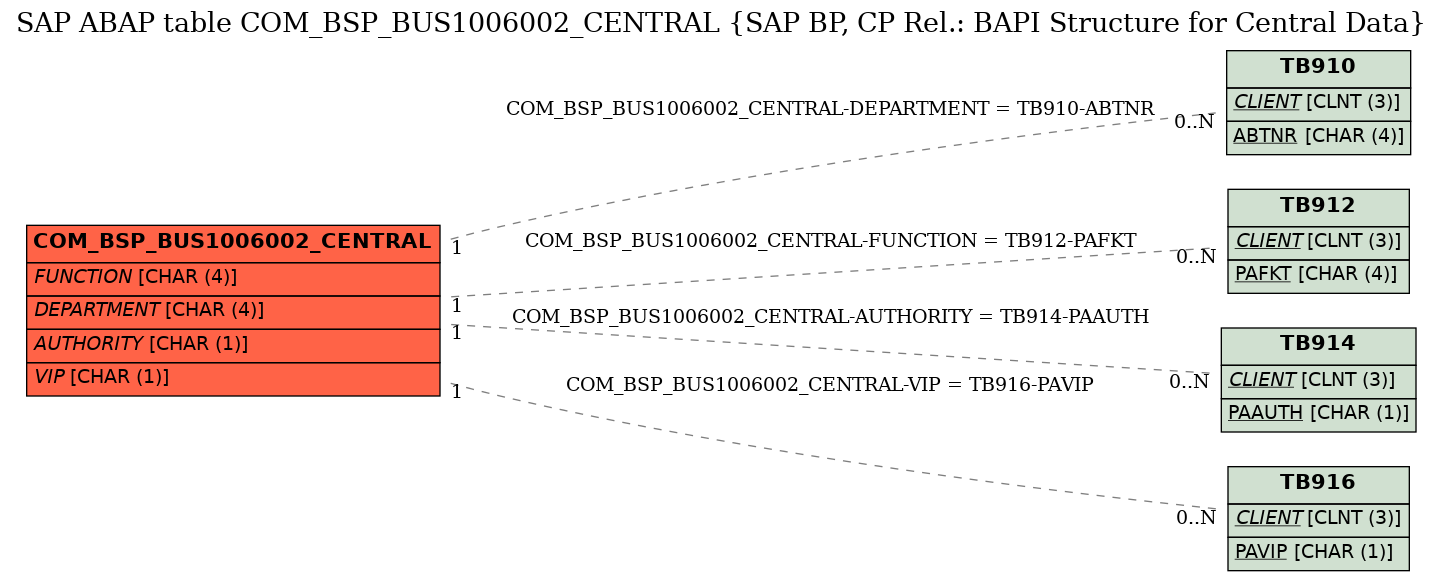

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	COM_BSP_BUS1006002_CENTRAL	AUTHORITY	TB914	PAAUTH	REF	1	CN
2	COM_BSP_BUS1006002_CENTRAL	DEPARTMENT	TB910	ABTNR	REF	1	CN
3	COM_BSP_BUS1006002_CENTRAL	FUNCTION	TB912	PAFKT	REF	1	CN
4	COM_BSP_BUS1006002_CENTRAL	VIP	TB916	PAVIP	REF	1	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	400
