SAP ABAP Table CMSC_CM_MODEL (BOL Model table for Cascade Manager)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-CHM-POS (Application Component) Point of Sale
     ⤷ CMS_CASCADE (Package) Master Data Cascade

Basic Data

Table Category	TRANSP	Transparent table

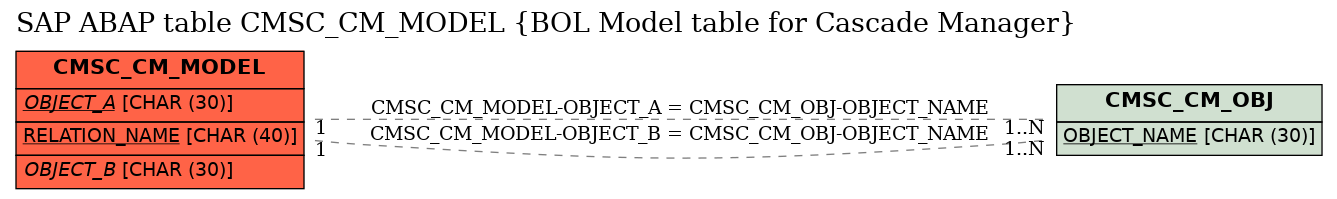

Transparent table	CMSC_CM_MODEL	Table Relationship Diagram
Short Description	BOL Model table for Cascade Manager

Delivery and Maintenance

Pool/cluster
Delivery Class	S	System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_A	☑	CRMT_EXT_OBJ_A_NAME	CRM_OBJEXT_NAME	CHAR	30	0	External Name of Source Object	CMSC_CM_OBJ
2	RELATION_NAME	☑	CRMT_RELATION_NAME	CRM_RELATION_NAME	CHAR	40	0	Relation Name
3	OBJECT_B	☐	CRMT_EXT_OBJ_B_NAME	CRM_OBJEXT_NAME	CHAR	30	0	External Name of Assigned Object	CMSC_CM_OBJ
4	CARD_A	☐	CRMT_CARD_A	CRM_CARD	CHAR	1	0	Cardinality of Source Object
5	CARD_B	☐	CRMT_CARD_B	CRM_CARD	CHAR	1	0	Cardinality of the Assigned Object
6	RELATION_KIND	☐	CRMT_RELATION_KIND	CRM_RELATION_KIND	CHAR	1	0	Type of Object Relation
7	DO_NOT_BUFFER	☐	CRMT_GENIL_BOOLEAN	CRM_GENIL_BOOLEAN	CHAR	1	0	Logical Variable, Similar To ABAP_BOOL from Type Pool ABAP

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CMSC_CM_MODEL	OBJECT_A	CMSC_CM_OBJ	OBJECT_NAME	KEY	1	N
2	CMSC_CM_MODEL	OBJECT_B	CMSC_CM_OBJ	OBJECT_NAME	REF	1	N

History

Last changed by/on	SAP	20070729
SAP Release Created in	510
