SAP ABAP Table CCGLV_BASIC (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

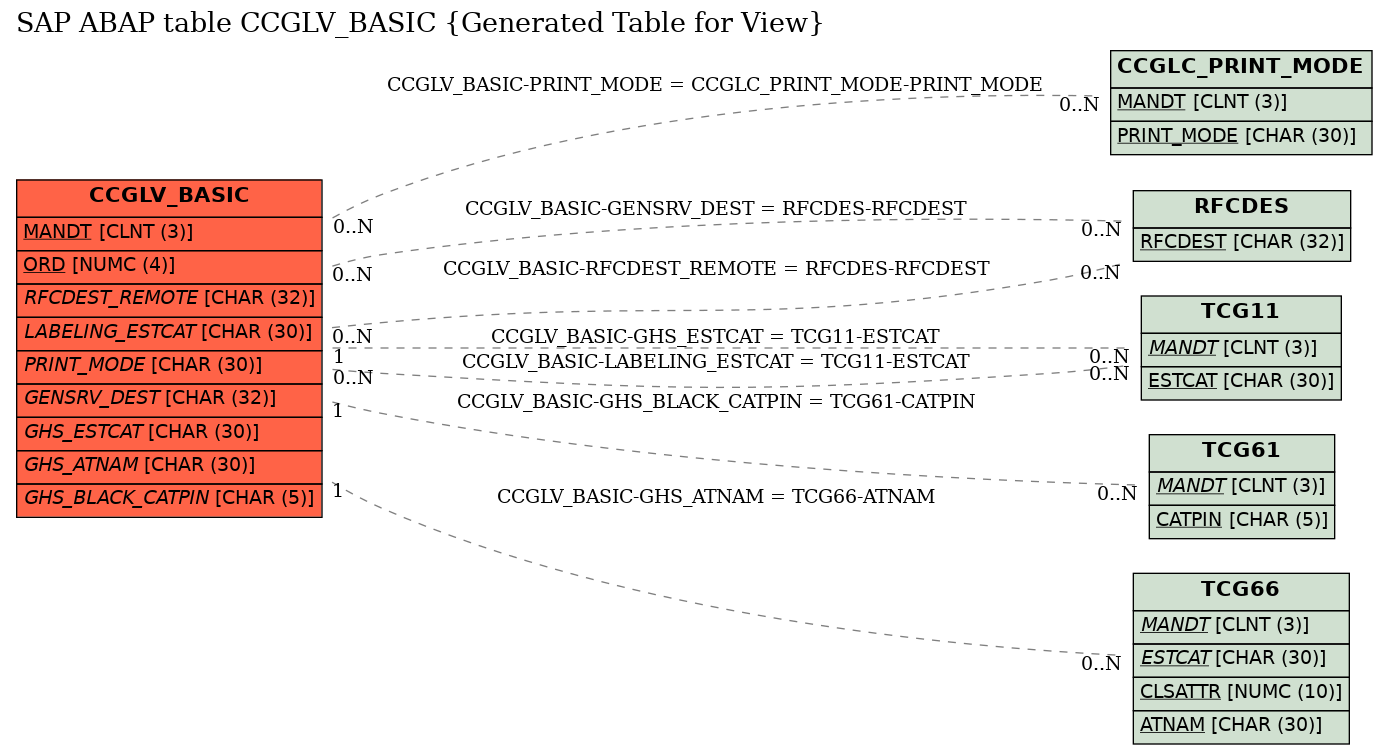

General view structure	CCGLV_BASIC	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client
2	ORD	☑	ESEORD	NUMC4	NUMC	4	0	Sort Sequence
3	RFCDEST_REMOTE	☐	CBGLE_RFC_DEST_MPD	RFCDEST	CHAR	32	0	RFC Destination for "Label Printing" Transaction	RFCDES
4	CHECK_BATCH	☐	CBGLE_CHECK_BATCH	ESDBOOLE	CHAR	1	0	Batch Check
5	LABELING_ESTCAT	☐	CBGLE_LABELING_ESTCAT	ESDESTCAT	CHAR	30	0	Value Assignment Type for Determining No. Hazard Pictograms	TCG11
6	SPEC_POPUP	☐	CBGLE_SPEC_POPUP	ESDBOOLE	CHAR	1	0	Dialog Box for Selecting Specifications
7	VAR_DET	☐	CBGLE_VAR_DET	ESDBOOLE	CHAR	1	0	Determine Suitable Generation Variants
8	PRINT_MODE	☐	CBGLE_PRINT_MODE	CHAR30	CHAR	30	0	Print Mode	CCGLC_PRINT_MODE
9	GENSRV_DEST	☐	CBGLE_GLM_GENSRV_DEST	RFCDEST	CHAR	32	0	RFC Destination for Synchronous WWI Server	RFCDES
10	GENSRV_PATH	☐	CBGLE_GLM_GENSRV_PATH		CHAR	132	0	Temporary Directory for Synchronous WWI Server
11	GHS_ESTCAT	☐	CBGLE_GHS_ESTCAT	ESDESTCAT	CHAR	30	0	Value Assignment Type for GHS Labeling	TCG11
12	GHS_ATNAM	☐	CBGLE_GHS_ATNAM	ATNAM	CHAR	30	0	Characteristic of Pictograms for GHS Labeling	TCG66
13	GHS_BLACK_CATPIN	☐	CBGLE_GHS_BLACK_CATPIN	ESDCATPIN	CHAR	5	0	Phrase Library: Blackening the Pictogram Template	TCG61
14	GHS_BLACK_PHRID	☐	CBGLE_GHS_BLACK_PHRID	ESDPHRID	CHAR	15	0	Phrase ID: Blackening Pictogram Template
15	DELETEDELAY_PRB	☐	CBGLE_DELETEDELAY_PRB	CBGLD_DELETEDELAY_PRB	INT4	10	0	Validity of Print Request Body in Days
16	DELETEDELAY_CHGLOG	☐	CBGLE_DELETEDELAY_CHGLOG	CBGLD_DELETEDELAY_CHGLOG	INT4	10	0	Validity of Audit Data in Days
17	DEF_REPLANGU	☐	CBGLE_DEF_REPLANGU	SPRAS	LANG	1	0	Default Report Language
18	DEF_SYSTEMNAME	☐	CBGLE_SYSNAME		CHAR	8	0	Name of SAP System
19	DEF_CLNT	☐	CBGLE_CLIENT	CBGLD_CLIENT	NUMC	3	0	Client
20	BGP_MAX_PROCESS_JOBS	☐	CBGLE_PFW_PROCESSING_JOBS	CBGLD_BGR_JOBS_NUM	NUMC	2	0	Number of Background Jobs for Processing Print Requests
21	BGP_MAX_PRINT_JOBS	☐	CBGLE_PFW_PRINTING_JOBS	CBGLD_BGR_JOBS_NUM	NUMC	2	0	Number of Background Jobs for Printing Print Requests

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CCGLV_BASIC	GENSRV_DEST	RFCDES	RFCDEST
2	CCGLV_BASIC	GHS_ATNAM	TCG66	ATNAM	REF	1	CN
3	CCGLV_BASIC	GHS_BLACK_CATPIN	TCG61	CATPIN	REF	1	CN
4	CCGLV_BASIC	GHS_ESTCAT	TCG11	ESTCAT	REF	1	CN
5	CCGLV_BASIC	LABELING_ESTCAT	TCG11	ESTCAT
6	CCGLV_BASIC	PRINT_MODE	CCGLC_PRINT_MODE	PRINT_MODE
7	CCGLV_BASIC	RFCDEST_REMOTE	RFCDES	RFCDEST

History

Last changed by/on	SAP	20130529
SAP Release Created in
