SAP ABAP Table BAPIBUS20001_PAYPLAN_CARD_DIS (BO BusProcessND: Payment plan-date-payment card)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF (Application Component) Basic Functions for Business Transactions
     ⤷ CRM_ORDER (Package) CRM Order: General Order Processing

Basic Data

Table Category	INTTAB	Structure

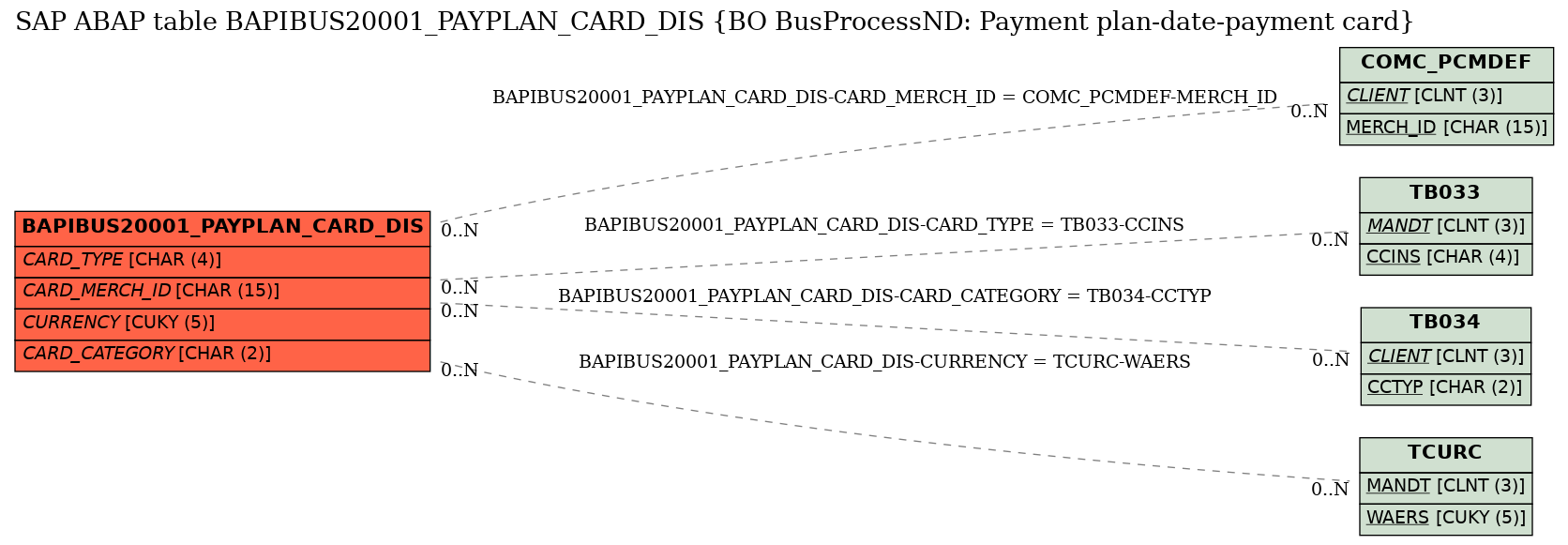

Structure	BAPIBUS20001_PAYPLAN_CARD_DIS	Table Relationship Diagram
Short Description	BO BusProcessND: Payment plan-date-payment card

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	REF_GUID	☐	GUID_32	SYSUUID_C	CHAR	32	0	GUID in 'CHAR' Format in Uppercase
2	REF_KIND	☐	CRMT_OBJECT_KIND	CRM_OBJECTKIND	CHAR	1	0	Object Type
3	GUID	☐	CRMT_SET_GUID_32	SYSUUID_C	CHAR	32	0	Set GUID in Format CHAR32
4	CARD_TYPE	☐	CC_INSTITUTE	CC_INSTITUTE	CHAR	4	0	Payment card type	TB033
5	CARD_NO	☐	CCNUM	CCNUM	CHAR	25	0	Payment cards: Card number	*
6	CARD_SUFFIX	☐	COMT_CARD_SUFFIX	CHAR10	CHAR	10	0	Sequential Number of Payment Card
7	CARD_REF_NO	☐	COMT_CARD_REF_NO	COM_CARD_REF_NO	CHAR	25	0	Payment Cards: Reference Number of a Payment Card
8	CARD_EXP_DATE	☐	CC_DATBI	DATUM	DATS	8	0	Payment Cards: Valid To
9	CARD_HOLDER	☐	CCNAME	TEXT40	CHAR	40	0	Payment Cards: Name of Cardholder
10	CARD_MERCH_ID	☐	COMT_CARD_MERCH_ID	COM_MERCH_ID_CC	CHAR	15	0	Identification of Merchant at Clearing House	COMC_PCMDEF
11	CURRENCY	☐	COMT_PAYPLAN_CURRENCY	WAERS	CUKY	5	0	Currency in Payment Plan	TCURC
12	CURRENCY_ISO	☐	ISOCD	ISOCD	CHAR	3	0	ISO currency code
13	AUTH_LIMIT	☐	BAPICUREXT	BAPICUREXT	DEC	28	9	Currency amount for BAPIS (with 9 decimal places)
14	AUTH_AMOUNT	☐	BAPICUREXT	BAPICUREXT	DEC	28	9	Currency amount for BAPIS (with 9 decimal places)
15	AUTH_NO	☐	COMT_AUTH_NO	CHAR10	CHAR	10	0	Payment Cards: Authorization Number
16	AUTH_REF	☐	COMT_AUTH_REF	CHAR30	CHAR	30	0	Authorization Reference Number of Clearing House
17	AUTH_PRE	☐	COMT_AUTH_PRE	XFELD	CHAR	1	0	Payment Cards: Preauthorization
18	AUTH_TIMESTAMP	☐	COMT_AUTH_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Date and Time of Authorization
19	AUTH_CALL_STATUS	☐	COMT_AUTH_CALL_STATUS	COM_AUTH_CALL_STATUS	CHAR	1	0	Payment Cards: Status when Calling Clearing House
20	AUTH_RESP	☐	COMT_AUTH_RESP	COM_AUTH_RESP	CHAR	1	0	Response to Authorization Result
21	AUTH_REQ_AMOUNT	☐	BAPICUREXT	BAPICUREXT	DEC	28	9	Currency amount for BAPIS (with 9 decimal places)
22	AUTH_TIMESTAMPIO	☐	COMT_AUTH_TIMESTAMPIO	TZTF_IO_FIELD	CHAR	26	0	Date and Time of Authorization in Display Format
23	AUTH_RESP_RC_AR	☐	COMT_AUTH_RESP_RC_AR	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Address Check (Address Result)
24	AUTH_RESP_RC_AP	☐	COMT_AUTH_RESP_RC_AP	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Address Check (Address Approval)
25	AUTH_RESP_RC_ZR	☐	COMT_AUTH_RESP_RC_ZR	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Address Check (ZIP Code Result)
26	AUTH_RESP_RC_CC	☐	COMT_AUTH_RESP_RC_CC	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result of Card Check (Response Code)
27	AUTH_RESP_RC_CVV	☐	COMT_AUTH_RESP_RC_CVV	COM_AUTH_CHECK_RESULT	CHAR	4	0	Payment Cards: Result Check of the Card Verification Code
28	AUTH_RESP_CODE	☐	COMT_AUTH_RESP_CODE	TEXT40	CHAR	40	0	Results Text of Authorization
29	CARD_ORIG	☐	COMT_CARD_ORIG	COM_CARD_ORIG	CHAR	1	0	Payment Cards: Data Origin
30	CARD_CATEGORY	☐	CC_CCTYP	CCTYPE	CHAR	2	0	Payment cards: Card category	TB034
31	AUTH_TYPE	☐	COMT_AUTH_TYPE	COM_AUTH_TYPE	CHAR	1	0	Authorization Type for Payment Cards
32	AUTH_EXP	☐	COMT_AUTH_EXP	XFELD	CHAR	1	0	Payment Cards: Authorization Expired
33	PAYPLAN_D_C_GUID	☐	GUID_32	SYSUUID_C	CHAR	32	0	GUID in 'CHAR' Format in Uppercase
34	CARD_NO_MASK_FLAG	☐	COMT_CARD_NO_MASK_FLAG	XFELD	CHAR	1	0	Payment Cards: Format Flag of Card Number

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAPIBUS20001_PAYPLAN_CARD_DIS	CARD_CATEGORY	TB034	CCTYP
2	BAPIBUS20001_PAYPLAN_CARD_DIS	CARD_MERCH_ID	COMC_PCMDEF	MERCH_ID
3	BAPIBUS20001_PAYPLAN_CARD_DIS	CARD_TYPE	TB033	CCINS
4	BAPIBUS20001_PAYPLAN_CARD_DIS	CURRENCY	TCURC	WAERS

History

Last changed by/on	SAP	20130604
SAP Release Created in	20C
