SAP ABAP Table BAPI_RE_PL_SLIDE (Parcel Map Overlay)
Hierarchy
☛ EA-FIN (Software Component) EA-FIN
   ⤷ RE-FX-LM (Application Component) Land Use Management
     ⤷ RE_LM_PL (Package) RE: Parcel of Land
Basic Data
Table Category INTTAB    Structure

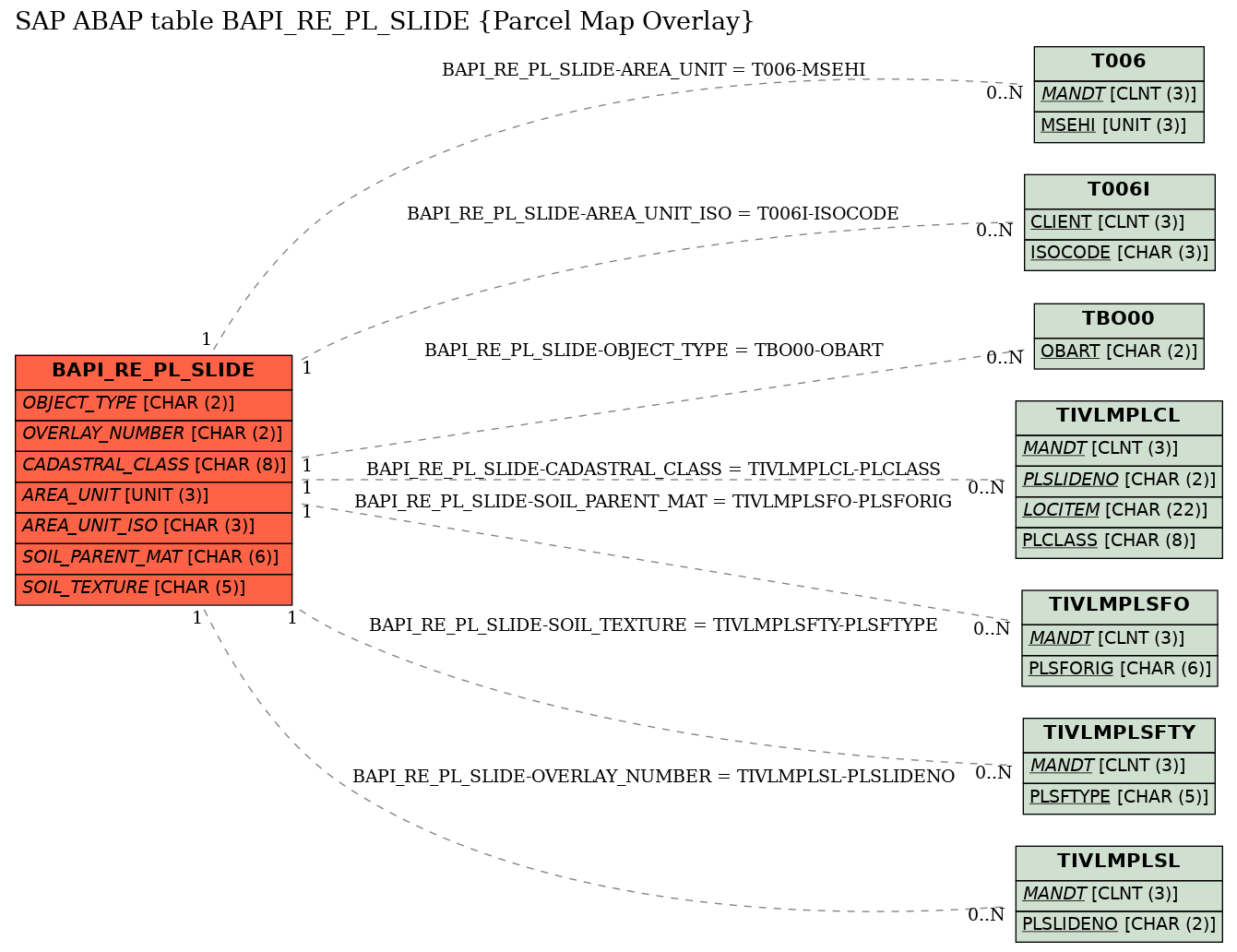

Structure BAPI_RE_PL_SLIDE   Table Relationship Diagram
Short Description Parcel Map Overlay
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 OBJECT_TYPE RECABUSOBJTYPE J_OBART CHAR 2   0   Business Object Type of Object TBO00
2 OBJECT_ID RECABUSOBJID CHAR45 CHAR 45   0   ID of Object
3 OVERLAY_NUMBER RELMPLSLIDENO RELMPLSLIDENO CHAR 2   0   Overlay Number TIVLMPLSL
4 CADASTRAL_CLASS RELMPLCLASS RELMPLCLASS CHAR 8   0   Cadastral Classification TIVLMPLCL
5 CADASTRAL_USAGE RELMXPLSLLOC RECAXLDESCRIPTION CHAR 60   0   Location - Cadastral Usage
6 AREA_VALUE RELMPLSLAREA REBDMEASVALUE QUAN 17   4   Area Measurement
7 AREA_UNIT RELMPLSLAREAUNIT MEINS UNIT 3   0   Area Unit T006
8 AREA_UNIT_ISO ISOCD_UNIT ISOCD_UNIT CHAR 3   0   ISO code for unit of measurement T006I
9 VALID_FROM RECADATEFROM RECADATEBEG DATS 8   0   Date: Valid From
10 VALID_TO RECADATETO RECADATEEND DATS 8   0   Date: Valid To
11 SOIL_PARENT_MAT RELMPLSFORIG RELMPLSFORIG CHAR 6   0   Soil Parent Material TIVLMPLSFO
12 SOIL_TEXTURE RELMPLSFTYPE RELMPLSFTYPE CHAR 5   0   Soil Texture TIVLMPLSFTY
13 SOIL_CONDITION RELMPLSFSTATE RELMPLSFSTATE CHAR 2   0   Soil Condition
14 YIELD_INDEX RELMPLSFYIELDINDX RELMPLSFYIELDINDX DEC 10   0   Yield Index
15 LAND_QUALITY_INDICATOR RELMPLSFLANDQUIND RELMPLSFLANDQUIND NUMC 5   0   Land Quality Indicator
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 BAPI_RE_PL_SLIDE AREA_UNIT T006 MSEHI REF 1 CN
2 BAPI_RE_PL_SLIDE AREA_UNIT_ISO T006I ISOCODE REF 1 CN
3 BAPI_RE_PL_SLIDE CADASTRAL_CLASS TIVLMPLCL PLCLASS KEY 1 CN
4 BAPI_RE_PL_SLIDE OBJECT_TYPE TBO00 OBART KEY 1 CN
5 BAPI_RE_PL_SLIDE OVERLAY_NUMBER TIVLMPLSL PLSLIDENO KEY 1 CN
6 BAPI_RE_PL_SLIDE SOIL_PARENT_MAT TIVLMPLSFO PLSFORIG REF 1 CN
7 BAPI_RE_PL_SLIDE SOIL_TEXTURE TIVLMPLSFTY PLSFTYPE REF 1 CN
History
Last changed by/on SAP  20060208
SAP Release Created in 600
