SAP ABAP Table BAPI_RE_NUMBER_RANGE (Number Range of Architectural Object)

Hierarchy

☛ EA-FIN (Software Component) EA-FIN
   ⤷ RE-FX-BD (Application Component) Basic Data
     ⤷ RE_BD_AO (Package) RE: Arch. Object (Master Data of Architectural Object)

Basic Data

Table Category	INTTAB	Structure

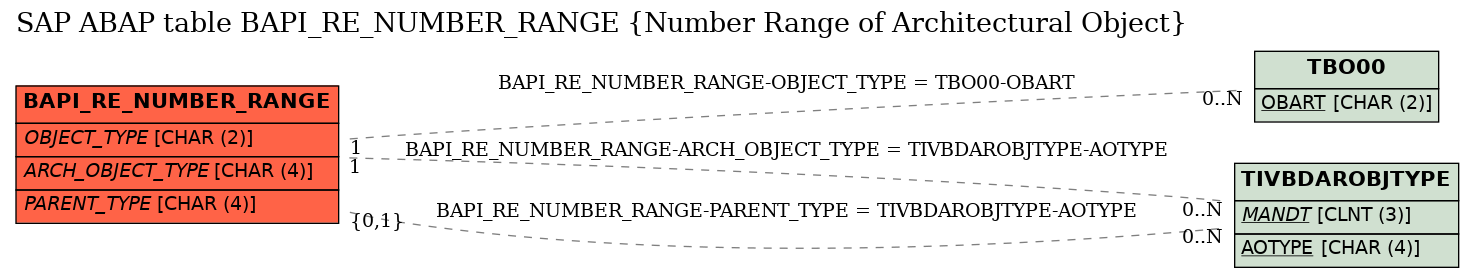

Structure	BAPI_RE_NUMBER_RANGE	Table Relationship Diagram
Short Description	Number Range of Architectural Object

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_TYPE	☐	RECABUSOBJTYPE	J_OBART	CHAR	2	0	Business Object Type of Object	TBO00
2	OBJECT_ID	☐	RECABUSOBJID	CHAR45	CHAR	45	0	ID of Object
3	ARCH_OBJECT_TYPE	☐	REBDAOTYPE	REBDAOTYPE	CHAR	4	0	Architectural Object Type	TIVBDAROBJTYPE
4	PARENT_TYPE	☐	REBDPARENTTYPE	REBDAOTYPE	CHAR	4	0	Higher-Level Architectural Object Type	TIVBDAROBJTYPE
5	IS_BY_ROOT	☐	REBDISBYROOT	RECABOOL	CHAR	1	0	Number Assignment According to Top Object
6	IS_BY_PARENT	☐	REBDISBYPARENT	RECABOOL	CHAR	1	0	Number Assignment by Higher-Level Object
7	IS_EXTERNAL	☐	REBDISEXTERNAL	RECABOOL	CHAR	1	0	External Number Range Indicator
8	RANGE_FROM	☐	REBDRANGEFROM	CHAR13	CHAR	13	0	First Number
9	RANGE_TO	☐	REBDRANGETO	CHAR13	CHAR	13	0	Last number

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAPI_RE_NUMBER_RANGE	ARCH_OBJECT_TYPE	TIVBDAROBJTYPE	AOTYPE	KEY	1	CN
2	BAPI_RE_NUMBER_RANGE	OBJECT_TYPE	TBO00	OBART	KEY	1	CN
3	BAPI_RE_NUMBER_RANGE	PARENT_TYPE	TIVBDAROBJTYPE	AOTYPE	REF	C	CN

History

Last changed by/on	SAP	20040819
SAP Release Created in	200
