SAP ABAP Table BAD_SRV_REFOBJ (BAD - Reference Object - object assignment.)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF (Application Component) Basic Functions for Business Transactions
     ⤷ BAD_ORDER (Package) CRM Order: BAD Objects - General Order Processing

Basic Data

Table Category	TRANSP	Transparent table

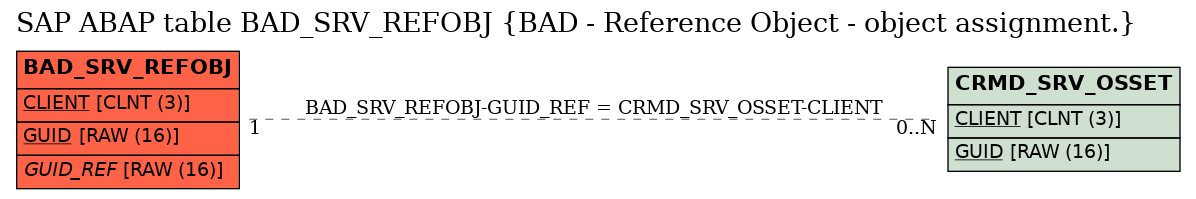

Transparent table	BAD_SRV_REFOBJ	Table Relationship Diagram
Short Description	BAD - Reference Object - object assignment.

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	GUID	☑	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
3	.INCLUDE	☐				0	0	CRM Service: Structure Reference Object Internal Fields
4	GUID_REF	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object	CRMD_SRV_OSSET
5	.INCLUDE	☐				0	0	CRM Service :Structure Reference Object External Fields
6	TYPE_OBJECT	☐	CRMT_TYPE_OBJECT	TYPE_OBJECT	CHAR	1	0	Object Type for Reference Object in Subject Set
7	GUID_OBJECT	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
8	PRODUCT_ID	☐	COMT_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Product ID
9	IB_COMP_REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
10	IB_COMP_VALID	☐	TZNTSTMPS	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
11	IB_TZONE	☐	SYSTZONLO	SYCHAR06	CHAR	6	0	Time Zone
12	MAIN_OBJECT	☐	CRMT_SRV_MAIN_OBJECT	BOOLEAN	CHAR	1	0	Main Reference Object
13	PART_CAUS_FAIL	☐	CRMT_SRV_PART_CAUSING_FAILURE	BOOLEAN	CHAR	1	0	Part Causing Defect
14	INST_DISM_INFO	☐	CRMT_INSTALL_DISMANTLE_INFO	CRMT_INSTALL_DISMANTLE_INFO	CHAR	1	0	Installation Information/Dismantling Information
15	PRODUCT_GUID	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
16	SERIAL_NUMBER	☐	CRMT_SERIAL_NUMBER	CHAR40	CHAR	40	0	Product Serial Number
17	EXT_REFOBJ	☐	CRMT_EXT_REFOBJ	CHAR40	CHAR	40	0	External Reference Object
18	.INCLUDE	☐				0	0	CRM Service: Structure Areas External Fields
19	ALTID_TYPE	☐	COMT_ALTID_TYPE	CHAR16	CHAR	16	0	ID Type for Alternative IDs
20	ID_FROM	☐	CRMT_ID_FROM_VALUE	CHAR255	CHAR	255	0	Object ID 'FROM' Value for Area Specification
21	ID_TO	☐	CRMT_ID_TO_VALUE	CHAR255	CHAR	255	0	Object ID 'TO' Value for Area Specification
22	TEXT_OBJECT	☐	CRMT_TEXT_OBJECT	SM_CHAR40	CHAR	40	0	Reference Object Text
23	IB_IBASE	☐	IB_IBASE	IB_INSTANCE	NUMC	18	0	IBase: Number of the Installed Base/IBase
24	IB_INSTANCE	☐	IB_INSTANCE	IB_INSTANCE	NUMC	18	0	IB: Component (instance)
25	TEXT_IB_COMP	☐	IB_INST_DESCR	TEXT40	CHAR	40	0	IB: Component Description

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAD_SRV_REFOBJ	GUID_REF	CRMD_SRV_OSSET	CLIENT	KEY	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	20C
