SAP ABAP Table BAD_ATTACHMENTS_MESS (Messaging structure - Attachments)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MSA (Application Component) Mobile Sales
     ⤷ CRM_DATAEXCHANGE (Package) Data Exchange in CRM

Basic Data

Table Category	INTTAB	Structure
Structure	BAD_ATTACHMENTS_MESS	Table Relationship Diagram
Short Description	Messaging structure - Attachments

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Common structure for all segment structures
2	TR_STATUS	☐			CHAR	4	0
3	BEF_IMG	☐			INT1	3	0
4	TASK	☐			INT1	3	0
5	SENDBITS	☐			RAW	32	0
6	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
7	ORDERADM_H_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
8	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
9	REF_KIND	☐	CRMT_OBJECT_KIND	CRM_OBJECTKIND	CHAR	1	0	Object Type
10	.INCLUDE	☐				0	0	Structure for Replication of Document Content
11	GUID	☐	CGPL_GUID16	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16-Character GUID for Projects and Activts
12	.INCLUDE	☐				0	0	SDOK: BOR key for information object
13	CLASS	☐	SDOK_CLASS	SDOK_CLASS	CHAR	10	0	Document class	SDOKIOCL
14	OBJID	☐	SDOK_DOCID	SDOK_DOCID	CHAR	32	0	ID for documents and relations
15	PROPERTIES	☐	SDOKPROPTYS		TTYP	0	0
16	CONTENT	☐	SDOKCNTBINS		TTYP	0	0
17	CHANGE	☐	CHAR1	CHAR1	CHAR	1	0	Single-Character Flag
18	FILESIZE	☐	SDOK_FSIZE	SDOK_FSIZE	NUMC	12	0	File size (in bytes)

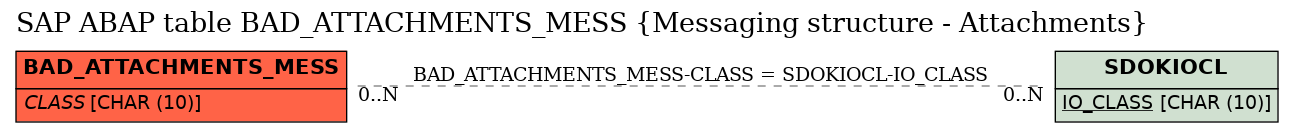

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAD_ATTACHMENTS_MESS	CLASS	SDOKIOCL	IO_CLASS

History

Last changed by/on	SAP	20141013
SAP Release Created in	301
