SAP ABAP Table ALRT_LOG_DISPLAY (Display structure for log display)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-MON-ALR-CLC (Application Component) Alert Calculation Engine
     ⤷ AI_SOLMAN_ALRT_LOG (Package) Alerting: Logging

Basic Data

Table Category	INTTAB	Structure

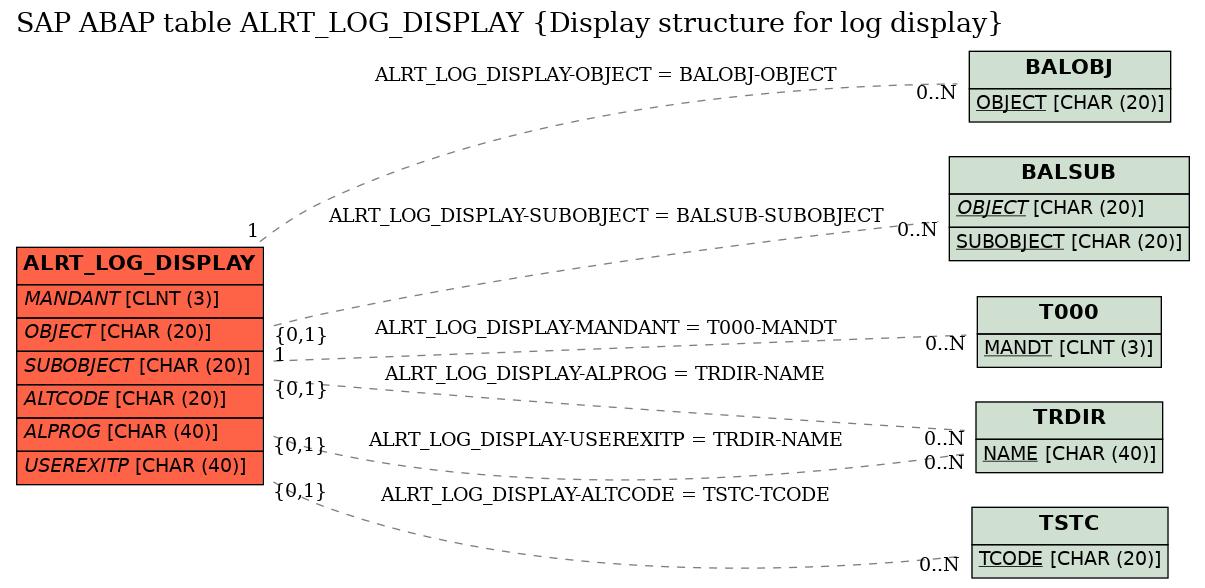

Structure	ALRT_LOG_DISPLAY	Table Relationship Diagram
Short Description	Display structure for log display

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Application log: log header
2	MANDANT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	LOGNUMBER	☐	BALOGNR	BALOGNR	CHAR	20	0	Application log: log number	*
4	OBJECT	☐	BALOBJ_D	BALOBJ	CHAR	20	0	Application log: Object name (Application code)	BALOBJ
5	SUBOBJECT	☐	BALSUBOBJ	BALSUBOBJ	CHAR	20	0	Application Log: Subobject	BALSUB
6	EXTNUMBER	☐	BALNREXT	BALNREXT	CHAR	100	0	Application Log: External ID
7	ALDATE	☐	BALDATE	DATUM	DATS	8	0	Application log: date
8	ALTIME	☐	BALTIME	UZEIT	TIMS	6	0	Application log: time
9	ALUSER	☐	BALUSER	XUBNAME	CHAR	12	0	Application log: user name	*
10	ALTCODE	☐	BALTCODE	TCODE	CHAR	20	0	Application Log: Transaction code	TSTC
11	ALPROG	☐	BALPROG	PROGNAME	CHAR	40	0	Application log: Program name	TRDIR
12	ALMODE	☐	BALMODE	BALMODE	CHAR	1	0	Application Log: Operating mode (Batch,Batch Input,Dialog)
13	ALTEXT	☐	BALTEXT	CHAR28	CHAR	28	0	Application log: Standard text
14	USEREXITP	☐	BALUEP	PROGNAME	CHAR	40	0	Application Log: Callback: Program name	TRDIR
15	USEREXITF	☐	BALUEF	CHAR30	CHAR	30	0	Application Log: Callback: Routine name
16	PROBCLASS	☐	BALPROBCLH	BALPROBCL	CHAR	1	0	Application Log: Log problem class
17	ALDATE_DEL	☐	ALDATE_DEL	DATUM	DATS	8	0	Application log: expiry date
18	DEL_BEFORE	☐	DEL_BEFORE	BALDELBEF	CHAR	1	0	Application Log: Keep log until expiry
19	ALSTATE	☐	ALSTATE	ALSTATE	CHAR	1	0	Application log: processing status
20	USEREXITT	☐	BALUET	BALUET	CHAR	1	0	Application Log: Callback: Type (Ext. Perform, FM, etc.)
21	ALCHDATE	☐	BALCHDATE	DATUM	DATS	8	0	Application Log: Date of last change
22	ALCHTIME	☐	BALCHTIME	UZEIT	TIMS	6	0	Application Log: Time of last change
23	ALCHUSER	☐	BALCHUSER	XUBNAME	CHAR	12	0	Application Log: User that changed the log	*
24	LOG_HANDLE	☐	BALLOGHNDL	SYSUUID_22	CHAR	22	0	Application Log: Log Handle
25	TABNAME	☐	BALTABNAME	AS4TAB	CHAR	30	0	Application Log: Context: DDIC structure name	*
26	MSG_CNT_AL	☐	BALDBCNTAL		NUMC	6	0	Application Log: Total Number of Messages
27	MSG_CNT_A	☐	BALDBCNTA		NUMC	6	0	Application Log: Number of A Messages
28	MSG_CNT_E	☐	BALDBCNTE		NUMC	6	0	Application Log: Number of E Messages
29	MSG_CNT_W	☐	BALDBCNTW		NUMC	6	0	Application Log: Number of W Messages
30	MSG_CNT_I	☐	BALDBCNTI		NUMC	6	0	Application Log: Number of I Messages
31	MSG_CNT_S	☐	BALDBCNTS		NUMC	6	0	Application Log: Number of S Messages
32	LAST_MSGNR	☐	BAL_LASTNR	BALMNR	NUMC	6	0	ApplicationLog: Last message serial number assigned	*
33	TIM_STMP	☐	BALCONTSMP	TZNTSTMPS	DEC	15	0	Application log: Time basis for context nametab
34	DB_VERSION	☐	BALDBVER	BALDBVER	CHAR	4	0	Application Log: Database repository format
35	MSG_CNT_P1	☐	BALDBCNTP1		NUMC	6	0	Application Log: Number of messages with problem class 1
36	MSG_CNT_P2	☐	BALDBCNTP2		NUMC	6	0	Application Log: Number of messages with problem class 2
37	MSG_CNT_P3	☐	BALDBCNTP3		NUMC	6	0	Application Log: Number of messages with problem class 3
38	MSG_CNT_P4	☐	BALDBCNTP4		NUMC	6	0	Application Log: Number of messages with problem class 4
39	CLIENT_CRE	☐	BALCLIENTC	MANDT	CLNT	3	0	Application Log: Client in which a log was created	*
40	CHAR_SIZE	☐	BALCHARSIZ	NUMC1	NUMC	1	0	Application Log: Size of a Character in Bytes
41	SUBOBJECT_TEXT	☐	BALSUBOBJT	TEXT60	CHAR	60	0	Application log: sub-object text
42	OBJECT_TEXT	☐	BALOBJT_D	TEXT60	CHAR	60	0	Application log: Object text
43	LOGTYPEICON	☐	ICON_D	ICON	CHAR	4	0	Icon in text fields (substitute display, alias)	*
44	PROBCLASS_TEXT	☐	BALTPROBCL	AS4TEXT	CHAR	60	0	Application Log: Problem class
45	TIMESTAMP	☐			STRG	0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	ALRT_LOG_DISPLAY	ALPROG	TRDIR	NAME	REF	C	CN
2	ALRT_LOG_DISPLAY	ALTCODE	TSTC	TCODE	REF	C	CN
3	ALRT_LOG_DISPLAY	MANDANT	T000	MANDT	KEY	1	CN
4	ALRT_LOG_DISPLAY	OBJECT	BALOBJ	OBJECT	KEY	1	CN
5	ALRT_LOG_DISPLAY	SUBOBJECT	BALSUB	SUBOBJECT	REF	C	CN
6	ALRT_LOG_DISPLAY	USEREXITP	TRDIR	NAME	REF	C	CN

History

Last changed by/on	SAP	20111123
SAP Release Created in	402
