SAP ABAP Table ALQRFCMON (Define Additional Message Container for qRFC Queue Mon.)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-CCM-MON (Application Component) Monitoring
     ⤷ SMOI (Package) CCMS: Monitoring Architecture

Basic Data

Table Category	TRANSP	Transparent table

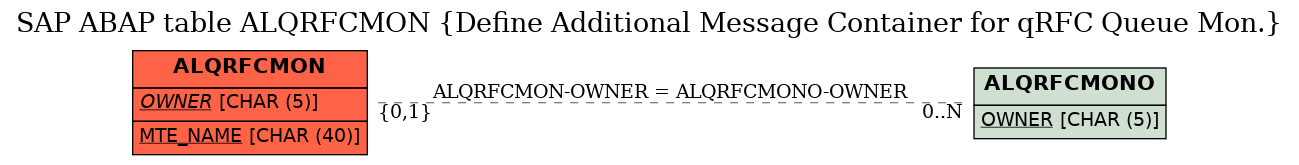

Transparent table	ALQRFCMON	Table Relationship Diagram
Short Description	Define Additional Message Container for qRFC Queue Mon.

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OWNER	☑	ALQRFCOWNR	CHAR5	CHAR	5	0	Owner of Queue Monitoring Group Customizing Settings	ALQRFCMONO
2	MTE_NAME	☑	ALQRFCNAM	TEXT40	CHAR	40	0	MTE Name for qRFC Queue Monitoring Groups
3	MTE_CLASS	☐	ALMTECLASS	TEXT40	CHAR	40	0	CCMS Monitoring Architecture: Name of MTE class
4	F1MSGID_MT	☐	ALQRFCMSID	ARBGB	CHAR	20	0	Message ID for F1 Documenation for CCMS qRFC Queue Groups	*
5	F1MSGNO_MT	☐	ALQRFCMSNO	SYMSGNO	NUMC	3	0	Messsage Number for F1 Documenation for CCMS qRFC Queue Grps
6	COLL_METH	☐	ALTOOLKEY	TEXT40	CHAR	40	0	Alert: Logical Name of Tool
7	ANLY_METH	☐	ALTOOLKEY	TEXT40	CHAR	40	0	Alert: Logical Name of Tool
8	AUTO_METH	☐	ALTOOLKEY	TEXT40	CHAR	40	0	Alert: Logical Name of Tool
9	CLLBK_FUBA	☐	ALQRFCFUBA	FUNCNAME	CHAR	30	0	Exit Function Module for qRFC Monitoring in Alert Monitor	*
10	PARNAME1	☐	ALQRFCPNAM	CHAR20	CHAR	20	0	Parameters for qRFC Exit Function Modules
11	PARVALUE1	☐	ALQRFCPVAL	TEXT40	CHAR	40	0	Parameter Value for qRFC Exit Function Modules
12	PARNAME2	☐	ALQRFCPNAM	CHAR20	CHAR	20	0	Parameters for qRFC Exit Function Modules
13	PARVALUE2	☐	ALQRFCPVAL	TEXT40	CHAR	40	0	Parameter Value for qRFC Exit Function Modules
14	PARNAME3	☐	ALQRFCPNAM	CHAR20	CHAR	20	0	Parameters for qRFC Exit Function Modules
15	PARVALUE3	☐	ALQRFCPVAL	TEXT40	CHAR	40	0	Parameter Value for qRFC Exit Function Modules
16	QTYPE	☐	ALQRFCQTYP	CHAR1	CHAR	1	0	qRFC Queue Type (Inbound/Outbound)
17	CLLPERCLNT	☐	CHAR1	CHAR1	CHAR	1	0	Single-Character Flag

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	ALQRFCMON	OWNER	ALQRFCMONO	OWNER		C	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	620
