SAP ABAP Table AGSTWB_STRUC_ATTR (Structure Attributes)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-IMP (Application Component) Solution Manager Implementation
     ⤷ AGS_APPL_MGNT (Package) Application Management

Basic Data

Table Category	INTTAB	Structure

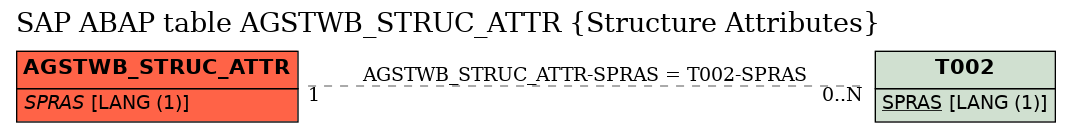

Structure	AGSTWB_STRUC_ATTR	Table Relationship Diagram
Short Description	Structure Attributes

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Attributes of a Structure
2	STRUCTURE_ID	☐	HIER_TREEG	SYCHAR32	CHAR	32	0	GUID for Structure
3	STRUCTURE_TYPE	☐	HIER_TREET	HIER_TREET	CHAR	5	0	Structure Type	*
4	STRUCTURE_STATUS	☐	TWB_STAT	TWB_STAT	CHAR	1	0	Status Structure
5	RELSTAT_SCHEMA	☐	TWB_RELSTAT_SCHEMA	TWB_RELSTAT_SCHEMA	CHAR	8	0	Status Schema for Test Workbench Objects
6	RELSTAT	☐	TWB_RELSTAT	TWB_RELSTAT	CHAR	15	0	Status
7	WF_ACTIVE	☐	TWB_WF_ACTIVE	HIER_YESNO	CHAR	1	0	TWB Workflow Active - Yes/No
8	RESPONSIBLE	☐	UNAME	UNAME	CHAR	12	0	User Name
9	COMP_ID	☐	UFFCTR	UFFCTR	CHAR	20	0	Application Component	*
10	COMPONENT	☐	UFPS_POSID	UFPS_POSID	CHAR	24	0	Application Component ID
11	TEST_SEQUENCE	☐	TWB_SRCH_S	TWB_SRCH_S	CHAR	20	0	Test sequence	*
12	SM_PROJECT_ID	☐	PROJECT_ID	PROJECT_ID	CHAR	10	0	Project name	*
13	SM_SOLUTION_ID	☐	TWB_SOLUTION_ID	TWB_SOLUTION_ID	NUMC	15	0	Solution Identification Number
14	SY_ROLE	☐	TWB_SY_ROLE	TWB_SY_ROLE	CHAR	1	0	System Role
15	CPROJECT_ID	☐	PAK_PROJECT_GUID	PAK_PROJECT_GUID	RAW	16	0	GUID for cPro Project
16	CNT_RED	☐	INT2	INT2	INT2	5	0	2 byte integer (signed)
17	CNT_YELLOW	☐	INT2	INT2	INT2	5	0	2 byte integer (signed)
18	CNT_GREEN	☐	INT2	INT2	INT2	5	0	2 byte integer (signed)
19	P_RED	☐	CHAR3	CHAR3	CHAR	3	0	3-Byte field
20	P_YELLOW	☐	CHAR3	CHAR3	CHAR	3	0	3-Byte field
21	P_GREEN	☐	CHAR3	CHAR3	CHAR	3	0	3-Byte field
22	CNT_MESSAGES	☐	INT2	INT2	INT2	5	0	2 byte integer (signed)
23	SDATE	☐	TWB_SDATE	SYDATS	DATS	8	0	Date of last status analysis
24	STIME	☐	TWB_STIME	SYTIME	TIMS	6	0	Time of last status analysis
25	S_OBS	☐	TWB_SOBS	HIER_YESNO	CHAR	1	0	Status Not Current
26	SYSID	☐	SYSYSID	SYCHAR08	CHAR	8	0	Name of SAP System
27	LUSER	☐	HIER_LUSER	HIER_USER	CHAR	12	0	Last changed by
28	LDATE	☐	HIER_LDATE	SYDATS	DATS	8	0	Last Changed On
29	LTIME	☐	HIER_LTIME	SYTIME	TIMS	6	0	Time of Last Change
30	.INCLUDE	☐				0	0	Name of a structure
31	SPRAS	☐	HIER_LAN	SPRAS	LANG	1	0	Documentation language	T002
32	ID	☐	HIER_TREEG	SYCHAR32	CHAR	32	0	GUID for Structure
33	TEXT	☐	HIER_TEXT	HIER_TEXT	CHAR	75	0	Explanatory text
34	TEXT_CAP	☐	HIER_TEXTC	HIER_TEXTC	CHAR	75	0	Description - only uppercase

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	AGSTWB_STRUC_ATTR	SPRAS	T002	SPRAS		1	CN

History

Last changed by/on	SAP	20100705
SAP Release Created in	400
