SAP ABAP Table AFFVD (Dialog Table for Process Instruction Values in Orders)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM (Application Component) Customer Relationship Management
     ⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
       ⤷ COCR (Package) R/3 Application Development: PP-PI-POR, Process Orders

Basic Data

Table Category	INTTAB	Structure

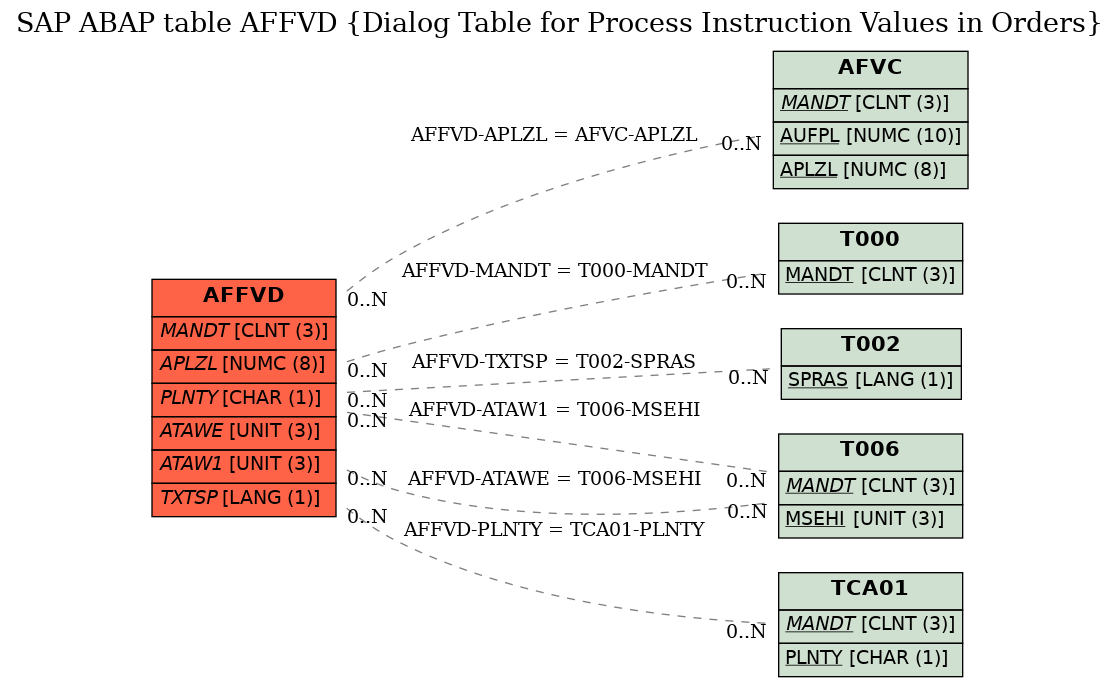

Structure	AFFVD	Table Relationship Diagram
Short Description	Dialog Table for Process Instruction Values in Orders

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Order - Process Instruction Values
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	AUFPL	☐	CO_AUFPL	AUFPL	NUMC	10	0	Routing number of operations in the order
4	APLZL	☐	CO_APLZL	CO_APLZL	NUMC	8	0	General counter for order	AFVC
5	APHZL	☐	PLNPH	NUMC8	NUMC	8	0	Internal Sub-Calculation Number
6	AFTZL	☐	PLNFT	NUM8	NUMC	8	0	Internal process instruction number
7	AFVZL	☐	PLNFV	NUMC8	NUMC	8	0	Internal PI characteristic/characteristic value number
8	PLNTY	☐	PLNTY	PLNTY	CHAR	1	0	Task List Type	TCA01
9	PLNNR	☐	PLNNR	PLNNR	CHAR	8	0	Key for Task List Group
10	PLNKN	☐	PLNKN	KNTNR	NUMC	8	0	Number of the task list node
11	PLNPH	☐	PLNPH	NUMC8	NUMC	8	0	Internal Sub-Calculation Number
12	PLNFT	☐	PLNFT	NUM8	NUMC	8	0	Internal process instruction number
13	PLNFV	☐	PLNFV	NUMC8	NUMC	8	0	Internal PI characteristic/characteristic value number
14	ZAEHL	☐	CIM_COUNT	CIM_COUNT	NUMC	8	0	Internal counter
15	FVLNR	☐	R_FVNR	VORNR	CHAR	4	0	Line Number of Process Instruction Characteristic
16	ATINN	☐	ATINN	ATINN	NUMC	10	0	Internal characteristic	*
17	ATZHL	☐	ATZHL	ATZHL	NUMC	4	0	Int counter
18	ATWRT	☐	ATWRT	ATWRT	CHAR	30	0	Characteristic Value
19	ATFLV	☐	ATFLV	FLTP	FLTP	16	16	Internal floating point from
20	ATFLB	☐	ATFLB	FLTP	FLTP	16	16	Internal floating point value to
21	ATCOD	☐	ATCOD	ATCOD	CHAR	1	0	Code for value dependency
22	ATAWE	☐	ATAWE	MEINS	UNIT	3	0	Alternative unit	T006
23	ATAW1	☐	ATAWE	MEINS	UNIT	3	0	Alternative unit	T006
24	ATFOR	☐	ATFOR	ATFOR	CHAR	4	0	Data type of characteristic
25	WRTKZ	☐	CO_WRTKZ	XFELD	CHAR	1	0	Indicator: Characteristic value assigned
26	TXTSP	☐	LANGU	SPRAS	LANG	1	0	Language Key	T002
27	AENNR	☐	AENNR	AENNR	CHAR	12	0	Change Number	*
28	LOEKZ	☐	LOEKZ	XFELD	CHAR	1	0	Asset class marked for deletion
29	INDEX_AFFV	☐	INDEX_PLFV	TABIX	INT4	10	0	Index referring to PI characteristic buffer table
30	MKMZL	☐	PLNFV	NUMC8	NUMC	8	0	Internal PI characteristic/characteristic value number
31	FLG_MARK	☐	FLG_SEL	XFELD	CHAR	1	0	Selection indicator
32	ATNAM	☐	ATNAM	ATNAM	CHAR	30	0	Characteristic Name
33	ATBEZ	☐	ATBEZ	TEXT30	CHAR	30	0	Characteristic description
34	AUTOV	☐	CO_AUTOVAL	FLAG	CHAR	1	0	Ind.: Characteristic value can be assigned automatically
35	ATOBL	☐	CO_ATOBL	XFELD	CHAR	1	0	Indicator: Automatic value assignment only
36	LTEXT	☐	FLAG	FLAG	CHAR	1	0	General Flag

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	AFFVD	APLZL	AFVC	APLZL
2	AFFVD	ATAW1	T006	MSEHI
3	AFFVD	ATAWE	T006	MSEHI
4	AFFVD	MANDT	T000	MANDT
5	AFFVD	PLNTY	TCA01	PLNTY
6	AFFVD	TXTSP	T002	SPRAS

History

Last changed by/on	SAP	20130529
SAP Release Created in
