SAP ABAP Table /SDF/CMO_VXSEOTYPE (delta structure for VSEOTYPE)

Hierarchy

☛ ST-PI (Software Component) SAP Solution Tools Plug-In
   ⤷ SV-SMG-SDD (Application Component) Service Data Download
     ⤷ /SDF/STPI_DDIC (Package) DDIC for /SDF/STPI Development

Basic Data

Table Category	INTTAB	Structure
Structure	/SDF/CMO_VXSEOTYPE	Table Relationship Diagram
Short Description	delta structure for VSEOTYPE

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Delta flag for version administration
2	VRSFLAG	☐	SYCHAR04	SYCHAR04	CHAR	4	0	CHAR04 data element for SYST
3	.INCLUDE	☐				0	0	Generated Table for View
4	CLSNAME	☐	SEOCLSNAME	SEOCLSNAME	CHAR	30	0	Object Type Name	SEOCLASS
5	CMPNAME	☐	SEOCMPNAME	CHAR30	CHAR	30	0	Component name
6	VERSION	☐	SEOVERSION	SEOVERSION	NUMC	1	0	Version indicator (active/inactive)
7	LANGU	☐	LANGU	SPRAS	LANG	1	0	Language Key	T002
8	DESCRIPT	☐	SEODESCR	AS4TEXT	CHAR	60	0	Short Description
9	ALIAS	☐	SEOALIAS	CHAR1_X	CHAR	1	0	Indicator alias component
10	EXPOSURE	☐	SEOEXPOSE	SEOEXPOSE	NUMC	1	0	Visibility of a class or component
11	STATE	☐	SEOSTATE	SEOSTATE	NUMC	1	0	Status of a class or component
12	EDITORDER	☐	SEOORDER		INT4	10	0	Editing sequence
13	AUTHOR	☐	CNAM	SYCHAR12	CHAR	12	0	Author
14	CREATEDON	☐	RDIR_CDATE	SYDATS	DATS	8	0	Created on
15	CHANGEDBY	☐	UNAM	SYCHAR12	CHAR	12	0	Last changed by
16	CHANGEDON	☐	RDIR_UDATE	SYDATS	DATS	8	0	Changed On
17	TYPTYPE	☐	SEOTYPTYPE	SEOTYPTYPE	NUMC	1	0	Typing
18	TYPE	☐	RS38L_TYP	RS38L_TYP	CHAR	132	0	Associated Type of an Interface Parameter
19	TABLEOF	☐	SEOTABLEOF	CHAR1_X	CHAR	1	0	Table indicator
20	SRCROW1	☐	TOKEN_ROW	SABP_INT4	INT4	10	0	Number of source line where token appears (>= 1)
21	SRCCOLUMN1	☐	TOKEN_COL	SABP_INT2	INT2	5	0	Column position of token (>= 0)
22	SRCROW2	☐	TOKEN_ROW	SABP_INT4	INT4	10	0	Number of source line where token appears (>= 1)
23	SRCCOLUMN2	☐	TOKEN_COL	SABP_INT2	INT2	5	0	Column position of token (>= 0)
24	R3RELEASE	☐	SAPRELEASE	CHAR10	CHAR	10	0	SAP Release
25	LOCKED	☐	SEOLOCKED	CHAR1_X	CHAR	1	0	Indicator is locked and cannot be changed
26	REFCLSNAME	☐	SEOCLSNAME	SEOCLSNAME	CHAR	30	0	Object Type Name	SEOCLASS
27	REFINTNAME	☐	SEOCLSNAME	SEOCLSNAME	CHAR	30	0	Object Type Name
28	REFCMPNAME	☐	SEOCMPNAME	CHAR30	CHAR	30	0	Component name	SEOCOMPO
29	TYPESRC_LENG	☐			INT2	5	0
30	TYPESRC	☐			LCHR	9999	0

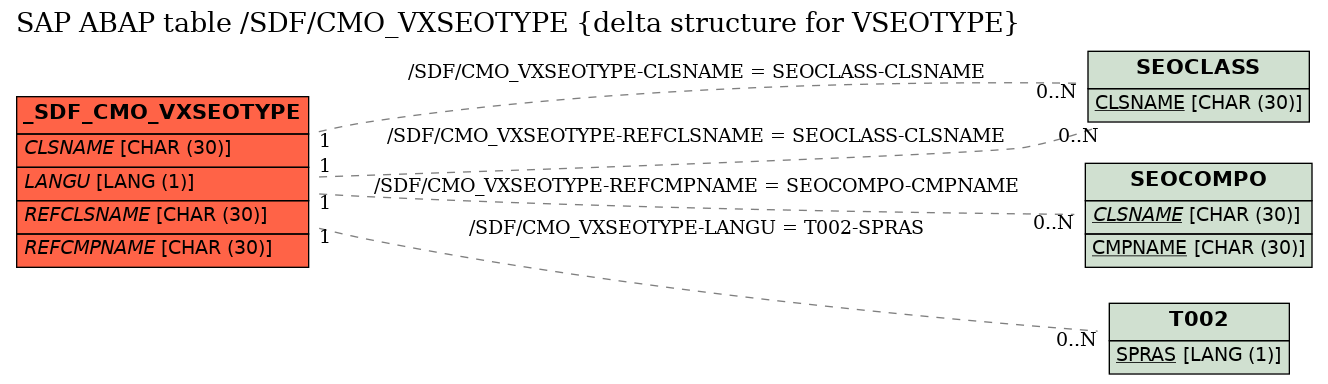

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/SDF/CMO_VXSEOTYPE	CLSNAME	SEOCLASS	CLSNAME	KEY	1	CN
2	/SDF/CMO_VXSEOTYPE	LANGU	T002	SPRAS	KEY	1	CN
3	/SDF/CMO_VXSEOTYPE	REFCLSNAME	SEOCLASS	CLSNAME		1	CN
4	/SDF/CMO_VXSEOTYPE	REFCMPNAME	SEOCOMPO	CMPNAME	REF	1	CN

History

Last changed by/on	SAP	20141013
SAP Release Created in	2005_1_46C
