SAP ABAP Table /NFM/NEB_ORG_VB (Update Structure /NFM/TNEB_ORG (Different Base Key))

Hierarchy

☛ ECC-DIMP (Software Component) DIMP
   ⤷ IS-MP-NF (Application Component) Non-Ferrous Metal enhancements
     ⤷ /NFM/DDIC (Package) NF Metal Processing: DDIC Objects

Basic Data

Table Category	INTTAB	Structure

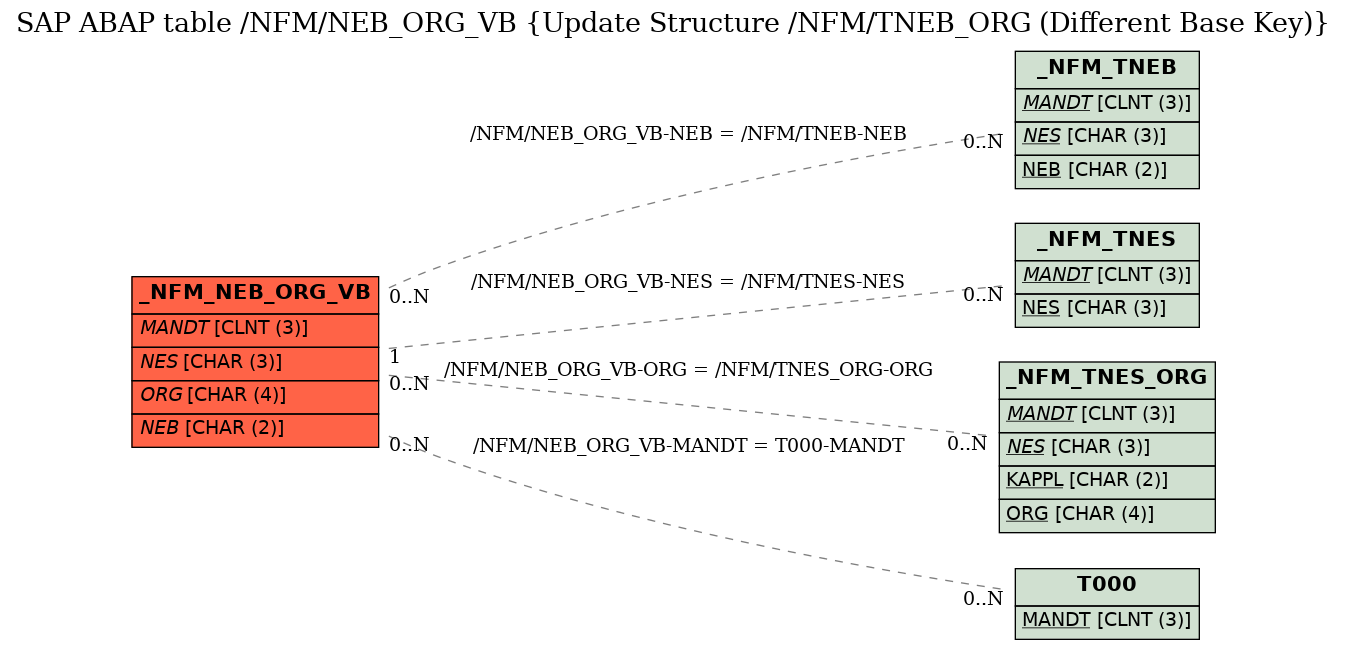

Structure	/NFM/NEB_ORG_VB	Table Relationship Diagram
Short Description	Update Structure /NFM/TNEB_ORG (Different Base Key)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Different Base Key on Organizational Level
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	NES	☐	/NFM/NES	/NFM/NES	CHAR	3	0	NF Key	/NFM/TNES
4	KAPPL	☐	KAPPL	KAPPL	CHAR	2	0	Application	*
5	ORG	☐	/NFM/ORG	CHAR4	CHAR	4	0	Organizational unit to which NF data refer	/NFM/TNES_ORG
6	NEB	☐	/NFM/NEB	CHAR002	CHAR	2	0	Base Key	/NFM/TNEB
7	.INCLUDE	☐				0	0	Base Key and Currencies: Detail Fields
8	BWR	☐	/NFM/BWB	WERTV8	CURR	15	2	Base value in base value currency
9	BCU	☐	/NFM/BKW	WAERS	CUKY	5	0	Base Value Currency Key	*
10	ERNAM	☐	ERNAM	USNAM	CHAR	12	0	Name of Person who Created the Object
11	ERDAT	☐	ERDAT	DATUM	DATS	8	0	Date on which the record was created
12	ERZET	☐	ERZET	UZEIT	TIMS	6	0	Entry time
13	AENAM	☐	AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
14	AEDAT	☐	AEDAT	DATUM	DATS	8	0	Last Changed On
15	AEZET	☐	AEZET	UZEIT	TIMS	6	0	Time last change was made
16	AKT	☐	/NFM/AKT	CHAR001	CHAR	1	0	Active Indicator for Different NF Base Value
17	UPDKZ	☐	UPDKZ_D	UPDKZ	CHAR	1	0	Update indicator

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/NFM/NEB_ORG_VB	MANDT	T000	MANDT
2	/NFM/NEB_ORG_VB	NEB	/NFM/TNEB	NEB
3	/NFM/NEB_ORG_VB	NES	/NFM/TNES	NES	KEY	1	CN
4	/NFM/NEB_ORG_VB	ORG	/NFM/TNES_ORG	ORG

History

Last changed by/on	SAP	20050301
SAP Release Created in
