SAP ABAP Table /ISDFPS/LM_FPLAN_ALV (Flight Plan: ALV Structure)

Hierarchy

☛ EA-DFPS (Software Component) SAP Enterprise Extension Defense Forces & Public Security
   ⤷ IS-DFS-LM (Application Component) Line Maintenance
     ⤷ /ISDFPS/LM_PM_ADDON (Package) Enhancement for Line Maintenance in PM Area

Basic Data

Table Category	INTTAB	Structure

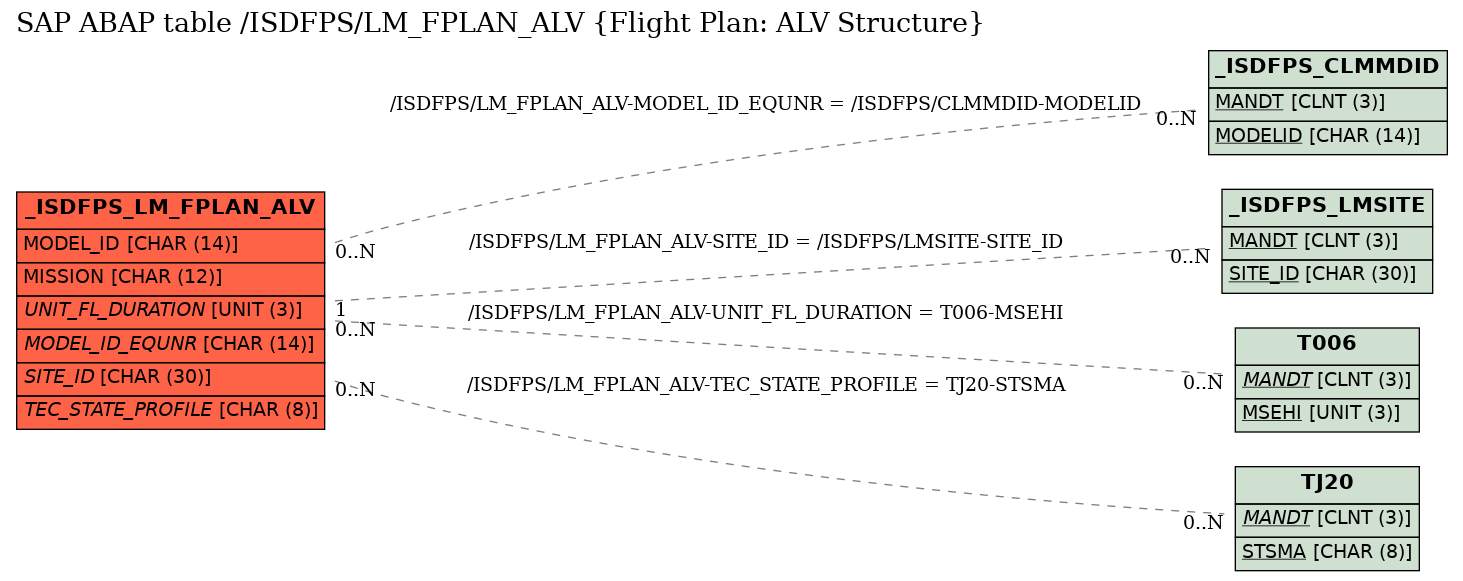

Structure	/ISDFPS/LM_FPLAN_ALV	Table Relationship Diagram
Short Description	Flight Plan: ALV Structure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	AUFNR	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	*
2	.INCLUDE	☐				0	0	Structure: Flight Without Order Number
3	ARM_SETUP	☐	/ISDFPS/LM_ARM_SETUP	/ISDFPS/DO_LM_SETUP	CHAR	30	0	Configuration Code
4	MODEL_ID	☐	/ISDFPS/DE_LM_MODEL_ID	/ISDFPS/DO_LM_MODEL_ID	CHAR	14	0	Model ID/Weapon System	*
5	NUM_PERSONS	☐	/ISDFPS/LM_NUM_PERS		NUMC	3	0	Number of Persons
6	KRYPTOSTATUS	☐	/ISDFPS/LM_KRYPTO		CHAR	1	0	Crypto Status
7	LANDING_LOC	☐	/ISDFPS/LM_LOCATION	TEXT40	CHAR	40	0	Destination
8	CALL_SIGN	☐	/ISDFPS/LM_CALL_SIGN		CHAR	12	0	Call Sign
9	TIME_OVER_TARGET	☐	/ISDFPS/LM_TIME_OT		TIMS	6	0	Time Over Target
10	TARGET_LOC	☐	/ISDFPS/LM_LOCATION	TEXT40	CHAR	40	0	Destination
11	ZULU_TNZONE	☐	TZNZONE	TZNZONE	CHAR	6	0	Time Zone	*
12	START_TNZONE	☐	/ISDFPS/LM_TIME		TIMS	6	0	Takeoff/Landing Time in the Zulu Time Zone
13	START_DATE	☐	/ISDFPS/LM_DATE		DATS	8	0	Date
14	LANDING_TNZONE	☐	/ISDFPS/LM_TIME		TIMS	6	0	Takeoff/Landing Time in the Zulu Time Zone
15	LANDING_DATE	☐	/ISDFPS/LM_DATE		DATS	8	0	Date
16	F_OBJNR	☐	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	*
17	OPERATION_ID	☐	/ISDFPS/FORCE_ID	SYSUUID_C	CHAR	32	0	Internal Key for Force Element
18	OPERATION_CNT	☐	/ISDFPS/FORCE_CNT	NUMC6	NUMC	6	0	Internal (Version) Counter
19	MISSION	☐	/ISDFPS/DE_LM_MISSION	/ISDFPS/DO_LM_MISSION	CHAR	12	0	Mission	*
20	EXTERNAL_ID	☐	/ISDFPS/DE_LM_EXTERNAL_ID	CHAR12	CHAR	12	0	External ID
21	LATEST_TAKE_OFF	☐	/ISDFPS/DE_LM_LATEST_TAKE_OFF		TIMS	6	0	Latest Takeoff
22	LAUNCHING_PAD	☐	/ISDFPS/DE_LM_LAUNCHING_PAD		CHAR	5	0	Runway
23	FLIGHT_DURATION	☐	/ISDFPS/FLIGHT_DURATION	DEC9_2	DEC	11	2	Planned Flight Time
24	UNIT_FL_DURATION	☐	/ISDFPS/FLIGHT_DURATION_UNIT	MEINS	UNIT	3	0	Time Unit for Planned Flight Duration	T006
25	FLIGHT_STATUS	☐	/ISDFPS/LM_FLIGHT_STATUS	CHAR40	CHAR	40	0	Flight Status
26	KTEXT	☐	AUFTEXT	TEXT40	CHAR	40	0	Description
27	LTEXT	☐	AUFLTEXT	XFELD	CHAR	1	0	Long Text Exists
28	VAPLZ	☐	GEWRK	ARBPL	CHAR	8	0	Main work center for maintenance tasks
29	WAWRK	☐	WERGW	WERKS	CHAR	4	0	Plant associated with main work center	*
30	PSPEL	☐	PS_PSP_PNR	PS_POSNR	NUMC	8	0	Work Breakdown Structure Element (WBS Element)	*
31	TPLNR	☐	TPLNR	TPLNR	CHAR	30	0	Functional Location	*
32	PLTXT	☐	PLTXT	TEXT40	CHAR	40	0	Description of functional location
33	EQUNR	☐	EQUNR	EQUNR	CHAR	18	0	Equipment Number	*
34	SHTXT	☐	KTX01	TEXT40	CHAR	40	0	Description of technical object
35	STTXT	☐	CO_STTXT	CHAR40	CHAR	40	0	System Status
36	FOREIGN_OBJ	☐	/ISDFPS/DE_LM_FOREIGN_OBJECT	/ISDFPS/DO_LM_XFELD	CHAR	1	0	Foreign Equipment
37	PRIO_TYPE	☐	/ISDFPS/DE_LM_USAGE_PRIO_TYPE	/ISDFPS/DO_LM_USAGE_PRIO_TYPE	CHAR	1	0	Prioritization Category
38	PRIO	☐	/ISDFPS/DE_LM_USAGE_PRIO	/ISDFPS/DO_LM_PRIO	CHAR	1	0	Usage Preference Priority	*
39	OBJNR	☐	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	*
40	D_OBJNR	☐	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	*
41	T_OBJNR	☐	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	*
42	MODEL_ID_EQUNR	☐	/ISDFPS/DE_LM_MODEL_ID	/ISDFPS/DO_LM_MODEL_ID	CHAR	14	0	Model ID/Weapon System	/ISDFPS/CLMMDID
43	.INCLUDE	☐				0	0	Operation Equipment ID
44	DEVICE_ID	☐	/ISDFPS/DE_LM_DEVICE_ID	/ISDFPS/DO_LM_DEVICE_ID	CHAR	14	0	Tail Number / Identifier
45	FORCE_ID	☐	/ISDFPS/DE_LM_FORCE_ID	OBJID	CHAR	10	0	Force Element
46	FORCE_DESCR	☐	STEXT	TEXT40	CHAR	40	0	Object Name
47	SITE_ID	☐	/ISDFPS/DE_LM_SITE_ID	/ISDFPS/DO_LM_SITE_ID	CHAR	30	0	Site	/ISDFPS/LMSITE
48	SITE_DESCR	☐	/ISDFPS/DE_LM_SITE_DESCR	/ISDFPS/DO_LM_TEXT60	CHAR	60	0	Site Description
49	.INCLUDE	☐				0	0	Condition of the Operation Equipment
50	TEC_STATE	☐	/ISDFPS/DE_LM_TEC_STATE	/ISDFPS/DO_LM_TEXT40	CHAR	40	0	Technical Status
51	TEC_STATE_PROFILE	☐	/ISDFPS/DE_LM_TEC_STATE_PROFIL	J_STSMA	CHAR	8	0	Technical Status Profile	TJ20
52	DEP_STATE	☐	/ISDFPS/DE_LM_DEP_STATE	/ISDFPS/DO_LM_TEXT40	CHAR	40	0	Operational Status
53	SETUP	☐	/ISDFPS/DE_LM_CURRENT_SETUP	/ISDFPS/DO_LM_SETUP	CHAR	30	0	Actual Configuration
54	REMARK	☐	/ISDFPS/DE_LM_REMARK	/ISDFPS/DO_LM_TEXT60	CHAR	60	0	Remark
55	TEC_STATE_ICON	☐	/ISDFPS/DE_LM_ICON_TEC_STATE	TV_IMAGE	CHAR	46	0	Icon: Technical Status of Operational Equipment
56	DEP_STATE_ICON	☐	/ISDFPS/DE_LM_ICON_DEP_STATE	TV_IMAGE	CHAR	46	0	Icon: Operational Status of Operational Equipment
57	AUART	☐	AUFART	AUFART	CHAR	4	0	Order Type	*
58	IWERK	☐	IWERK	WERKS	CHAR	4	0	Maintenance Planning Plant	*
59	BUKRS	☐	BUKRS	BUKRS	CHAR	4	0	Company Code	*
60	KOKRS	☐	KOKRS	CACCD	CHAR	4	0	Controlling Area	*
61	KOSTV	☐	AUFKOSTV	KOSTL	CHAR	10	0	Responsible cost center	*
62	KOSTL	☐	KOSTL	KOSTL	CHAR	10	0	Cost Center	*
63	AUFPL	☐	CO_AUFPL	AUFPL	NUMC	10	0	Routing number of operations in the order
64	WAERS	☐	WAERS	WAERS	CUKY	5	0	Currency Key	*
65	EINSATZ_STEXT	☐	STEXT	TEXT40	CHAR	40	0	Object Name
66	UPRIO_TEXT	☐	/ISDFPS/DE_LM_DESCR	/ISDFPS/DO_LM_TEXT40	CHAR	40	0	Description
67	LTEXT_ICON	☐	/ISDFPS/DE_LM_ICON_LTEXT	TV_IMAGE	CHAR	46	0	Icon: Long Text Exists?
68	MODEL_LENGTH	☐	FELDL	NUM02	NUMC	2	0	Field Length
69	SETUP_POOL	☐	/ISDFPS/DE_LM_SETUP_POOL	/ISDFPS/DO_LM_SETUP_POOL	CHAR	20	0	Operational Role	*
70	SETUP_POOL_TXT	☐	/ISDFPS/DE_LM_DESCR60	TEXT60	CHAR	60	0	Description
71	SELBOX	☐	CHAR1	CHAR1	CHAR	1	0	Single-Character Flag
72	XUPDATED	☐	UPDATE_FLAG	XFELD	CHAR	1	0	Database Update? ('X'/' ')
73	COLINFO	☐	LVC_T_SCOL		TTYP	0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/ISDFPS/LM_FPLAN_ALV	MODEL_ID_EQUNR	/ISDFPS/CLMMDID	MODELID
2	/ISDFPS/LM_FPLAN_ALV	SITE_ID	/ISDFPS/LMSITE	SITE_ID	REF	1	CN
3	/ISDFPS/LM_FPLAN_ALV	TEC_STATE_PROFILE	TJ20	STSMA
4	/ISDFPS/LM_FPLAN_ALV	UNIT_FL_DURATION	T006	MSEHI	REF

History

Last changed by/on	SAP	20130529
SAP Release Created in	470
