SAP ABAP Table /BOBF/S_CONF_UI_MAPPING (Mapping)
Hierarchy
☛ SAP_BS_FND (Software Component) SAP Business Suite Foundation
   ⤷ AP-RC-BOF-CFN (Application Component) Business Object Processing Framework Configuration
     ⤷ /BOBF/CONFIGURATION (Package) Business Object Processing Configuration
Basic Data
Table Category INTTAB    Structure

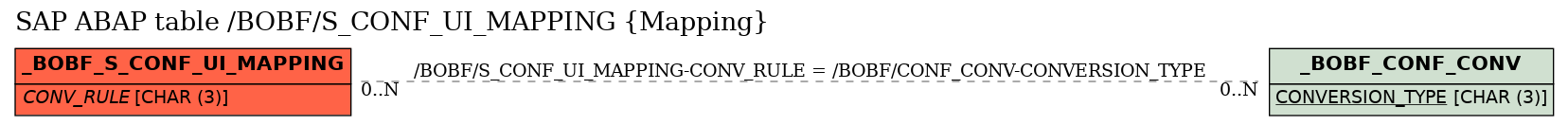

Structure /BOBF/S_CONF_UI_MAPPING   Table Relationship Diagram
Short Description Mapping
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 KEY /BOBF/CONF_UI_KEY   CHAR 32   0   BOPF Element
2 HIERARCHY_KEY /BOBF/CONF_UI_KEY   CHAR 32   0   BOPF Element
3 LEVEL     INT1 3   0
4 FIELDNAME_EXT FIELDNAME FDNAME CHAR 30   0   Field Name *
5 FIELDNAME_INT FIELDNAME FDNAME CHAR 30   0   Field Name *
6 REDUNDANT_ATTR /BOBF/CONF_REDUNDANT_ATTRIBUTE BOOLE CHAR 1   0   Redundant Attribute
7 CONST_INTERFACE SEOITFNAME SEOCLSNAME CHAR 30   0   Interface name
8 CONV_RULE /BOBF/CONF_CONVERSION_TYPE /BOBF/CONF_CONVERSION_TYPE CHAR 3   0   Conversion type for field content conversion Proxy <--> ABAP /BOBF/CONF_CONV
9 CONV_RULE_DESCRIPTION /BOBF/OBM_DESCRIPTION /BOBF/OBM_DESCRIPTION CHAR 40   0   Description
10 NON_REPEATABLE_READ /BOBF/CONF_UI_REPL_FORBIDDEN BOOLE CHAR 1   0   Replication to secondary persistency forbidden
11 DATA_TYPE_PRX TYPENAME OBJECTNAME CHAR 30   0   Name of Dictionary Type
12 DATA_TYPE_INT TYPENAME OBJECTNAME CHAR 30   0   Name of Dictionary Type
13 MAINTENANCE     CHAR 1   0
14 COLOR     CHAR 4   0
15 T_STYLE LVC_T_STYL   TTYP 0   0
16 EXCEPTION     CHAR 1   0
17 HANDLE_DRDN     INT4 10   0
18 POSITION TABFDPOS AS4POS NUMC 4   0   Position of the field in the table
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 /BOBF/S_CONF_UI_MAPPING CONV_RULE /BOBF/CONF_CONV CONVERSION_TYPE
History
Last changed by/on SAP  20130604
SAP Release Created in 702
