SAP ABAP Table WSTN_MAP_STYLE_PLAN (MAP plan at the article level)

Hierarchy

☛ EA-RETAIL (Software Component) SAP Enterprise Extension Retail
   ⤷ LO-MD-MM (Application Component) Material Master
     ⤷ WSTRN (Package) Prepack Allocation Planning Dialog

Basic Data

Table Category	INTTAB	Structure

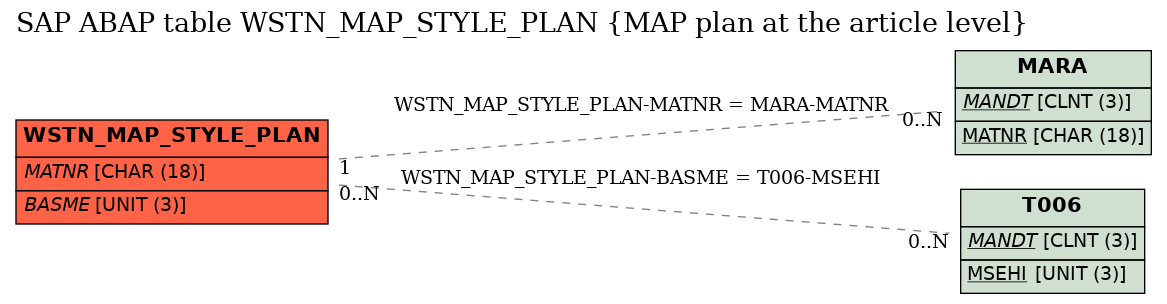

Structure	WSTN_MAP_STYLE_PLAN	Table Relationship Diagram
Short Description	MAP plan at the article level

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number	MARA
2	PLAN_NB_VAR	☐	WSTN_PLAN_NB_VAR	INT4	INT4	10	0	Planned Total Quantity of All Variants (MAP)
3	BASME	☐	MEINS	MEINS	UNIT	3	0	Base Unit of Measure	T006

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	WSTN_MAP_STYLE_PLAN	BASME	T006	MSEHI
2	WSTN_MAP_STYLE_PLAN	MATNR	MARA	MATNR	REF	1	CN

History

Last changed by/on	SAP	20020506
SAP Release Created in	110
