SAP ABAP Table WSRM_DOMAIN_SEQN (WSRM: Assignment of Domain Name, Sequence Name, and SID)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-ESI-WS-ABA-RT (Application Component) WebServices ABAP Runtime
     ⤷ SOAP_WSRM (Package) WSRM: Implementation of WSRM Protocol

Basic Data

Table Category	TRANSP	Transparent table

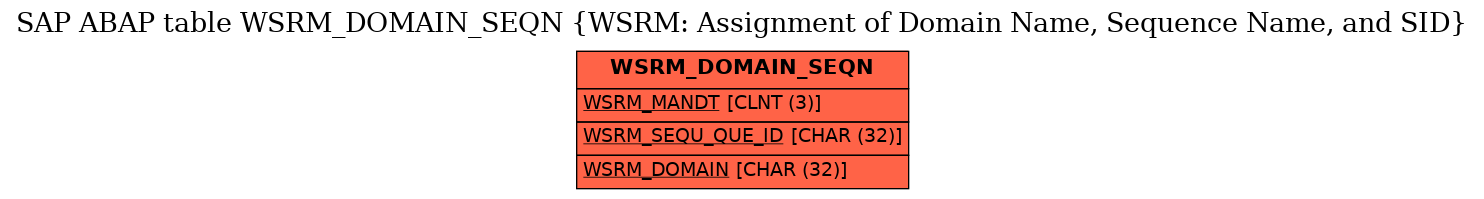

Transparent table	WSRM_DOMAIN_SEQN	Table Relationship Diagram
Short Description	WSRM: Assignment of Domain Name, Sequence Name, and SID

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	WSRM_MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	WSRM_SEQU_QUE_ID	☑	SRT_SEQUENCE_ID	SRT_SEQUENCE_QUEUE_IDENT	CHAR	32	0	Sequence queue ident
3	WSRM_DOMAIN	☑	SRT_SERVICE_DOMAIN	CHAR32	CHAR	32	0	service_domain
4	WSRM_UNAME	☐	SYUNAME	SYCHAR12	CHAR	12	0	User Name
5	WSRM_HOST	☐	SYHOST	HOST_ID	CHAR	32	0	Application Server
6	WSRM_SYSID	☐	SYSYSID	SYCHAR08	CHAR	8	0	Name of SAP System
7	WSRM_DATE	☐	DATS	DATS	DATS	8	0	Field of type DATS
8	WSRM_TIME	☐	TIMS	TIME	TIMS	6	0	Field of type TIMS
9	WSRM_SID	☐	ANYURI	ANYURI	SSTR	255	0	Any URI
10	WSRM_DIRECTION	☐	INT4	INT4	INT4	10	0	Natural number

History

Last changed by/on	SAP	20130604
SAP Release Created in	710
