SAP ABAP Table WFE_S_REQUEST_CRM_OUTTAB (Web Request: Table for ALV Tree)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-ISE-WBF (Application Component) Web Forms
     ⤷ WFE_FORM_EDITORS_REQUEST_CRM (Package) Web Request: XML/Annotation Editor for Request Category

Basic Data

Table Category	INTTAB	Structure

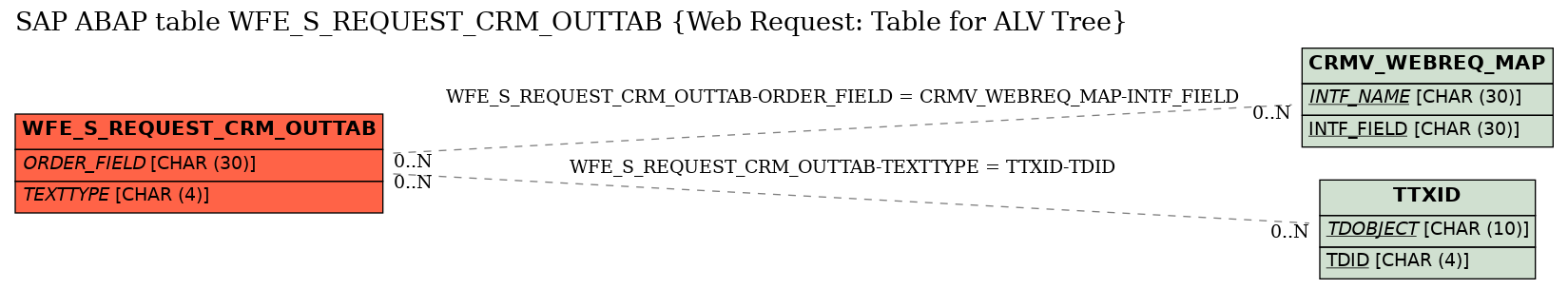

Structure	WFE_S_REQUEST_CRM_OUTTAB	Table Relationship Diagram
Short Description	Web Request: Table for ALV Tree

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	ALV Tree: Generic Fields
2	NKEY	☐	LVC_NKEY		CHAR	12	0	ALV Tree Control: Node Key
3	TAGNAME	☐	WFE_TAGNAME	TEXT30	CHAR	30	0	XML Tag Name
4	NDESCRIPTION	☐	WFE_NODE_DESCR	TEXT100	CHAR	100	0	ALV Tree: Node Description
5	NID	☐	WFE_NODE_ID	TEXT30	CHAR	30	0	ALV Tree: Node ID
6	.INCLUDE	☐				0	0	Web Request: Root Element
7	ROOT_NAME	☐	WFE_ELEMENT_NAME	TEXT100	CHAR	100	0	Web Request: Element Name
8	ELEMENT_NAME	☐	WFE_ELEMENT_NAME	TEXT100	CHAR	100	0	Web Request: Element Name
9	ELEMENT_VALUE	☐	WFE_ELEMENT_VALUE	TEXT100	CHAR	100	0	Web Request: Element Value
10	ANNOT_LABEL	☐	WFE_ANNOT_LABEL	TEXT100	CHAR	100	0	Field Label: User-Defined
11	ANNOT_LABEL_LD	☐	WFE_ANNOT_LABEL_LD	WFE_ANNOT_LABEL_LD	CHAR	1	0	Type of Field Label
12	ANNOT_SIZE	☐	WFE_ANNOT_SIZE		NUMC	3	0	Field Length: User-Defined
13	ANNOT_MAXLENGTH	☐	WFE_ANNOT_MAXLENGTH		NUMC	3	0	Maximum Field Length: User-Defined
14	ANNOT_DECIMALS	☐	WFE_ANNOT_DECIMALS	WFE_DECIMALS	NUMC	1	0	Decimal Places: User-Defined
15	ANNOT_BINDING	☐	WFE_ANNOT_BINDING	OBJECTNAME	CHAR	30	0	Attribute Transfer from Data Type
16	BINDING_LABEL	☐	WFE_BINDING_LABEL	TEXT100	CHAR	100	0	Field Label of Selected Data Type
17	BINDING_SIZE	☐	WFE_BINDING_SIZE		NUMC	3	0	Field Length of Selected Data Type
18	BINDING_MAXLENGTH	☐	WFE_BINDING_MAXLENGTH		NUMC	3	0	Maximum Field Length of Selected Data Type
19	BINDING_DECIMALS	☐	WFE_BINDING_DECIMALS	WFE_DECIMALS	NUMC	1	0	Decimal Places of Selected Data Type
20	ORDER_INTF_NAME	☐	CRMT_INTERFACE_NAME	CRM_INTERFACENAME	CHAR	30	0	Name of Interface Structure
21	ORDER_FIELD	☐	CRMT_INTERFACE_FIELD	CRM_INTERFACEFIELD	CHAR	30	0	Name of Field on User Interface	CRMV_WEBREQ_MAP
22	ORDER_FIELD1	☐	CRMT_INTERFACE_FIELD	CRM_INTERFACEFIELD	CHAR	30	0	Name of Field on User Interface
23	TEXTTYPE	☐	COMT_TEXT_TEXTID	TDID	CHAR	4	0	Text Type	TTXID
24	INPUT_TYPE	☐	WFE_FIELD_TYPE	WFE_FIELD_TYPE	CHAR	1	0	Web Request: Selection of Field Types
25	.INCLUDE	☐				0	0	Web Request: Attribute Tag
26	ATTRIBUTE_NAME	☐	WFE_ATTRIBUTE_NAME	TEXT100	CHAR	100	0	Web Request: Attribute Name
27	ATTRIBUTE_VALUE	☐	WFE_ATTRIBUTE_VALUE	TEXT100	CHAR	100	0	Web Request: Attribute Value
28	.INCLUDE	☐				0	0	Web Request: Element Group
29	GROUP_NAME	☐	WFE_ELEMENT_NAME	TEXT100	CHAR	100	0	Web Request: Element Name
30	XPATH	☐	CRM_ERMS_XPATH	CRM_ERMS_STRING	CHAR	255	0	XPath Expression
31	BRF_RELEVANT	☐	WFE_ANNOT_BRF_RELEVANT		CHAR	1	0	Use in Business Rule Framework
32	ID	☐	WFE_ANNOT_ID		CHAR	10	0	ID of the Path
33	MANDATORY	☐	WFE_ANNOT_MANDATORY		CHAR	1	0	Mandatory

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	WFE_S_REQUEST_CRM_OUTTAB	ORDER_FIELD	CRMV_WEBREQ_MAP	INTF_FIELD
2	WFE_S_REQUEST_CRM_OUTTAB	TEXTTYPE	TTXID	TDID

History

Last changed by/on	SAP	20070309
SAP Release Created in	30A
