SAP ABAP Table WCAE (WCM: Order Operation <-> Approval Group)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PM-WCM (Application Component) Work Clearance Management
     ⤷ WCM (Package) WCM: Work Clearance Management

Basic Data

Table Category	TRANSP	Transparent table

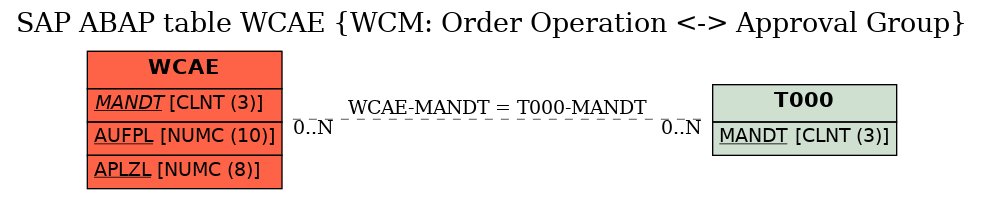

Transparent table	WCAE	Table Relationship Diagram
Short Description	WCM: Order Operation <-> Approval Group

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	AUFPL	☑	CO_AUFPL	AUFPL	NUMC	10	0	Routing number of operations in the order
3	APLZL	☑	CO_APLZL	CO_APLZL	NUMC	8	0	General counter for order	*
4	APRVGRP	☐	WCEAPRVGRP	VORNR	CHAR	4	0	Approval Group
5	.INCLUDE	☐				0	0	WCM: I/O Administration Data (Create)
6	CRNAME	☐	WCECRNAME	USNAM	CHAR	12	0	Created by
7	CRDATE	☐	WCECRDATE	DATUM	DATS	8	0	Date on Which the Object Was Created
8	CRTIME	☐	WCECRTIME	UZEIT	TIMS	6	0	Time at Which Object was Created
9	.INCLUDE	☐				0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	WCAE	MANDT	T000	MANDT

History

Last changed by/on	SAP	20100310
SAP Release Created in	700
