SAP ABAP Table W3FLOWATTR (ITS: Flow Logic Properties)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷ BC-DWB-TOO-WAB (Application Component) Web Application Builder
⤷ SW3_API (Package) ITS: API
⤷ BC-DWB-TOO-WAB (Application Component) Web Application Builder
⤷ SW3_API (Package) ITS: API
Basic Data
Table Category | INTTAB | Structure |
Structure | W3FLOWATTR | Table Relationship Diagram |
Short Description | ITS: Flow Logic Properties |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | .INCLUDE | 0 | 0 | INDX file for HTML templates (cross-language) | |||||
2 | RELID | CHAR | 2 | 0 | |||||
3 | .INCLUDE | 0 | 0 | Structure of Internal Key Template (language-independent) | |||||
4 | SERVICE | IACSERVIC_ | IACSERVICE | CHAR | 14 | 0 | Service name of Internet Application Component | IACS | |
5 | THEME | IACTHEME | IACTHEME | CHAR | 2 | 0 | Theme of Internet Application Component | IACR | |
6 | DYNPRO | IACDYNNR | SYCHAR04 | CHAR | 4 | 0 | Screen number of IAC template | ||
7 | MODULPOOL | IACNAME | IACNAME | CHAR | 20 | 0 | Web object name of Internet Application Component | ||
8 | SRTF2 | INDX_SRTF2 | SYBIN4 | INT4 | 10 | 0 | Next record counter in EXPORT/IMPORT data tables | ||
9 | CHNAME | IACUNAME | SYCHAR12 | CHAR | 12 | 0 | Last processor of IAC object | ||
10 | TDATE | IACCHDATE | SYDATS | DATS | 8 | 0 | Date IAC object changed | ||
11 | TTIME | IACCHTIME | SYTIME | TIMS | 6 | 0 | Time IAC object changed | ||
12 | CLUSTR | INDX_CLSTR | SYBIN2 | INT2 | 5 | 0 | Length field for user data in EXPORT/IMPORT tables | ||
13 | CLUSTD | INDX_CLUST | INDX_CLUST | LRAW | 2886 | 0 | Data field for IMPORT/EXPORT database tables | ||
14 | DEVCLASS | DEVCLASS | DEVCLASS | CHAR | 30 | 0 | Package | * |

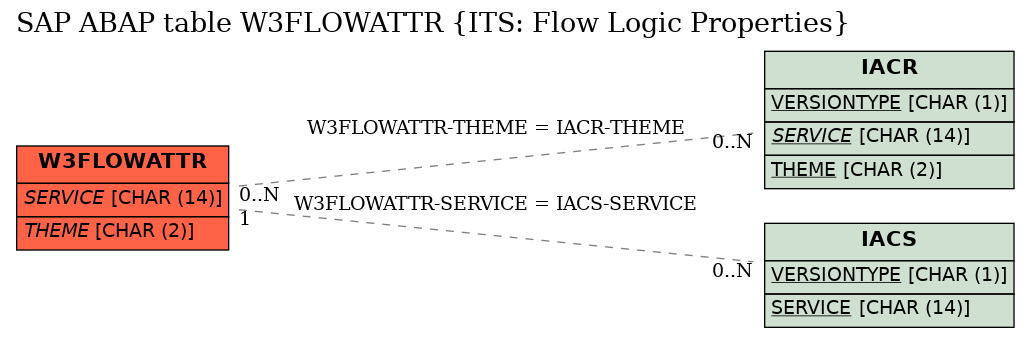

Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | W3FLOWATTR | SERVICE | IACS | SERVICE | KEY | 1 | CN |
2 | W3FLOWATTR | THEME | IACR | THEME |
History
Last changed by/on | SAP | 20110908 |
SAP Release Created in |
