SAP ABAP Table VLOYD_CRD_CARD (Change Document Structure; Generated by RSSCD000)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-LOY-MSH-CRD (Application Component) Loyalty Membership Cards
     ⤷ LOY_CRD (Package) Loyalty Management Cards

Basic Data

Table Category	INTTAB	Structure

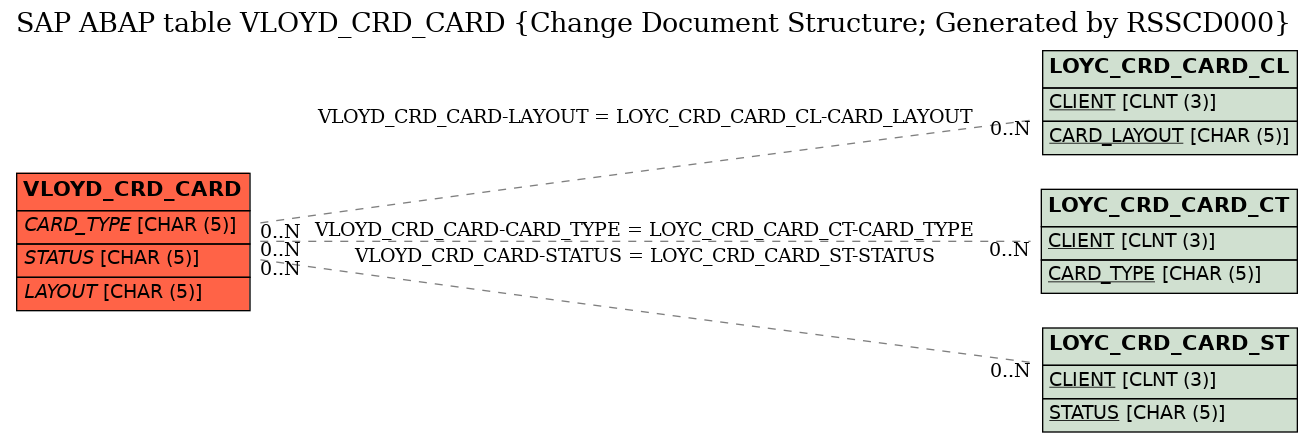

Structure	VLOYD_CRD_CARD	Table Relationship Diagram
Short Description	Change Document Structure; Generated by RSSCD000

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Cards table
2	.INCLUDE	☐				0	0	LOY FRW : Primary key Include
3	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
4	GUID	☐	LOY_FRW_GUID	SYSUUID	RAW	16	0	Object GUID
5	.INCLUDE	☐				0	0	LOY FRW : Administrative Include
6	CREATED_ON	☐	LOY_FRW_CREATED_ON	SYDATS	DATS	8	0	Created On - OBSOLETE !!!
7	CREATED_BY	☐	LOY_FRW_CREATED_BY	UNAME	CHAR	12	0	Created By
8	CREATED_AT	☐	LOY_FRW_CREATED_AT	LOY_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
9	CHANGED_ON	☐	LOY_FRW_CHANGED_ON	SYDATS	DATS	8	0	Changed On - OBSOLETE !!!
10	CHANGED_BY	☐	LOY_FRW_CHANGED_BY	UNAME	CHAR	12	0	Changed By
11	CHANGED_AT	☐	LOY_FRW_CHANGED_AT	LOY_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
12	.INCLUDE	☐				0	0	LOY FRW : Non-Key Framework Include
13	REF_GUID	☐	LOY_FRW_GUID	SYSUUID	RAW	16	0	Object GUID
14	APPLICATION	☐	LOY_FRW_APPLICATION	LOY_FRW_APPLICATION	CHAR	4	0	Application
15	PROCESS_TYPE	☐	LOY_FRW_PROCESS_TYPE	LOY_FRW_PROCESS_TYPE	CHAR	15	0	Process Type
16	OBJECT_ID	☐	LOY_CRD_CARD_ID	LOY_CRD_CARD_ID	CHAR	16	0	Card ID
17	CARD_TYPE	☐	LOY_CRD_CARD_CTYPE	LOY_CRD_CARD_CTYPE	CHAR	5	0	Card Type	LOYC_CRD_CARD_CT
18	STATUS	☐	LOY_CRD_CARD_STATUS	LOY_CRD_CARD_STATUS	CHAR	5	0	Card Status	LOYC_CRD_CARD_ST
19	CARD_VALID_FROM	☐	LOY_CRD_CARD_DATE	DATUM	DATS	8	0	Date
20	CARD_VALID_TO	☐	LOY_CRD_CARD_DATE	DATUM	DATS	8	0	Date
21	CARD_DISP_NAME	☐	LOY_CRD_CARD_DNAME	LOY_CRD_CARD_DNAME	CHAR	25	0	Card Display Name
22	EXTERNAL_CARD_NU	☐	LOY_CRD_CARD_EXT_ID	LOY_CRD_CARD_EXT_ID	CHAR	25	0	External Card ID
23	CARD_TITLE_1	☐	LOY_CRD_CARD_CTITLE	LOY_CRD_CARD_DNAME	CHAR	25	0	Card Title
24	CARD_TITLE_2	☐	LOY_CRD_CARD_CTITLE	LOY_CRD_CARD_DNAME	CHAR	25	0	Card Title
25	LAYOUT	☐	LOY_CRD_CARD_LAYOUT	LOY_CRD_CARD_LAYOUT	CHAR	5	0	Card Layout	LOYC_CRD_CARD_CL
26	MEMB_ID	☐	BU_PARTNER	BU_PARTNER	CHAR	10	0	Business Partner Number	*
27	.INCLUDE	☐				0	0	Extensibility Include Structure for loyalty cards
28	CARD_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
29	.INCLUDE	☐				0	0
30	OLDCARD_REF_GUID	☐	LOY_FRW_GUID	SYSUUID	RAW	16	0	Object GUID
31	CARD_REN_DATE	☐	LOY_CRD_CARD_DATE	DATUM	DATS	8	0	Date
32	CARD_RANK	☐	LOY_CRD_CARD_RANK	LOY_CRD_CARD_RANK	CHAR	2	0	Loyalty Card Rank
33	CARD_PROC	☐	BU_PARTNER	BU_PARTNER	CHAR	10	0	Business Partner Number	*
34	CARD_MAG_STRIP	☐	LOY_CRD_BOOLEAN	LOY_CRD_BOOLEAN	CHAR	1	0	Active
35	CARD_PHOTO	☐	LOY_CRD_BOOLEAN	LOY_CRD_BOOLEAN	CHAR	1	0	Active
36	CARD_PIN	☐	LOY_CRD_BOOLEAN	LOY_CRD_BOOLEAN	CHAR	1	0	Active
37	ORDER_REF_NO	☐	LOY_CRD_ORDER_REF	LOY_CRD_ORDER_REF	CHAR	20	0	Loyalty Card Order Reference
38	ORDERED_AT	☐	LOY_CRD_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Loyalty Card Time Stamp
39	PRINTED_AT	☐	LOY_CRD_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Loyalty Card Time Stamp
40	SHIPPED_AT	☐	LOY_CRD_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Loyalty Card Time Stamp
41	.INCLUDE	☐				0	0	Structure for status in loyalty
42	ISTAT	☐	LOY_FRW_JISTAT	J_ISTAT	CHAR	5	0	Element for System Status	*
43	ESTAT	☐	LOY_FRW_JESTAT	J_ESTAT	CHAR	5	0	User Status	*
44	SRV_CTR_GUID	☐	LOY_FRW_GUID	SYSUUID	RAW	16	0	Object GUID
45	CARD_TITLE_1_UC	☐	LOY_CRD_CARD_CTITLE	LOY_CRD_CARD_DNAME	CHAR	25	0	Card Title
46	CARD_TITLE_2_UC	☐	LOY_CRD_CARD_CTITLE	LOY_CRD_CARD_DNAME	CHAR	25	0	Card Title
47	.INCLUDE	☐				0	0	Structures for generating change document update programs
48	KZ	☐	CDCHNGIND	CDCHNGIND	CHAR	1	0	Change type (U, I, E, D)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	VLOYD_CRD_CARD	CARD_TYPE	LOYC_CRD_CARD_CT	CARD_TYPE
2	VLOYD_CRD_CARD	LAYOUT	LOYC_CRD_CARD_CL	CARD_LAYOUT
3	VLOYD_CRD_CARD	STATUS	LOYC_CRD_CARD_ST	STATUS

History

Last changed by/on	SAP	20130604
SAP Release Created in
