SAP ABAP Table VCMS_CAG_RULES (Change Document Structure; Generated by RSSCD000)

Hierarchy

☛ EA-FINSERV (Software Component) SAP Enterprise Extension Financial Services
   ⤷ FS-CMS-MD (Application Component) Master Data
     ⤷ CMS_CORE (Package) Collateral Management System

Basic Data

Table Category	INTTAB	Structure
Structure	VCMS_CAG_RULES	Table Relationship Diagram
Short Description	Change Document Structure; Generated by RSSCD000

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Rule Details
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	.INCLUDE	☐				0	0	Primary Key for CMS_CAG_RULES
4	CAG_RULES_GUID	☐	CMS_DTE_CAG_RULES_GUID	SYSUUID	RAW	16	0	GUID for Table CMS_CAG_RULES
5	.INCLUDE	☐				0	0	Link to CMS_CAG_POR Table
6	CAG_POR_GUID	☐	CMS_DTE_CAG_POR_GUID	SYSUUID	RAW	16	0	GUID for Table CMS_CAG_POR
7	.INCLUDE	☐				0	0	Rule Details
8	BU_PARTNERID	☐	CMS_DTE_BPID	CMS_BPID	CHAR	32	0	Business Partner Identification Number
9	BPF	☐	CMS_DTE_BPF	CMS_BPF	CHAR	6	0	Business Partner Function	*
10	RBL_CURR	☐	CMS_DTE_CAG_RBL_RBL_CURR	WAERS	CUKY	5	0	Currency of the Receivable Amounts Specified in the Link	TCURC
11	RBL_ORG_UNIT	☐	CMS_DTE_RBL_ORG_UNIT	CMS_RBL_ORG_UNIT	CHAR	10	0	Organization Unit for a Receivable	TCMS_RBL_ORG
12	PRODUCT_SET	☐	CMS_DTE_PRD_SET	CMS_PRD_SET	CHAR	6	0	Identification of a Product Set	TCMS_PRD_SET
13	REMARKS	☐	CMS_DTE_REMARKS	CMS_TEXT	CHAR	60	0	Text for remarks
14	BU_PARTNERID1	☐	CMS_DTE_BPID	CMS_BPID	CHAR	32	0	Business Partner Identification Number
15	.INCLUDE	☐				0	0	Stucture to record history of changes in all application tab
16	CREATED_BY	☐	CMS_DTE_USER	CMS_USER	CHAR	12	0	Login ID of the User who created the Record
17	CREATED_AT	☐	CMS_DTE_CREATED_AT	TZNTSTMPS	DEC	15	0	Creation Timestamp
18	CHANGED_BY	☐	CMS_DTE_LAST_CHNG_USER	CMS_USER	CHAR	12	0	Last Changed By
19	CHANGED_AT	☐	CMS_DTE_CHANGED_AT	TZNTSTMPS	DEC	15	0	Change Timestamp
20	SOURCEOFENTRY	☐	CMS_DTE_SOURCE_OF_ENTRY	CMS_SOURCE	CHAR	32	0	Source of Entry
21	.INCLUDE	☐				0	0	Structures for generating change document update programs
22	KZ	☐	CDCHNGIND	CDCHNGIND	CHAR	1	0	Change type (U, I, E, D)

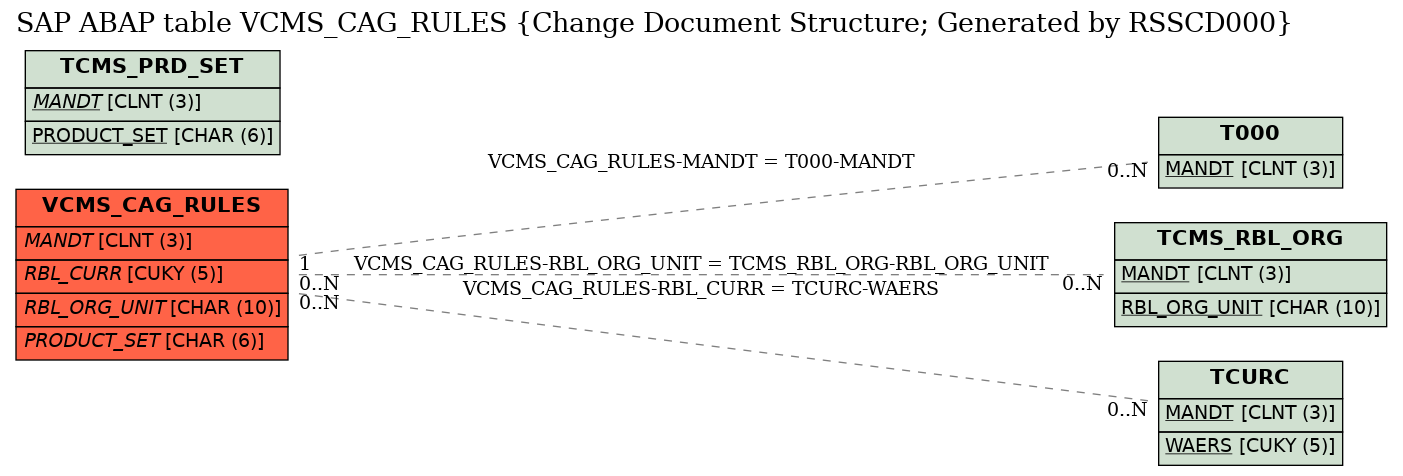

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	VCMS_CAG_RULES	MANDT	T000	MANDT	KEY	1	CN
2	VCMS_CAG_RULES	RBL_CURR	TCURC	WAERS
3	VCMS_CAG_RULES	RBL_ORG_UNIT	TCMS_RBL_ORG	RBL_ORG_UNIT	REF

History

Last changed by/on	SAP	20040826
SAP Release Created in	600
