SAP ABAP Table UMR_RF101 (RMS: Measure-Risk Value Fields Selection Criteria)

Hierarchy

☛ SEM-BW (Software Component) SEM-BW: Strategic Enterprise Management
   ⤷ FIN-SEM-CPM (Application Component) Corporate Performance Monitor
     ⤷ UMR (Package) CPM: Risk Management

Basic Data

Table Category	TRANSP	Transparent table

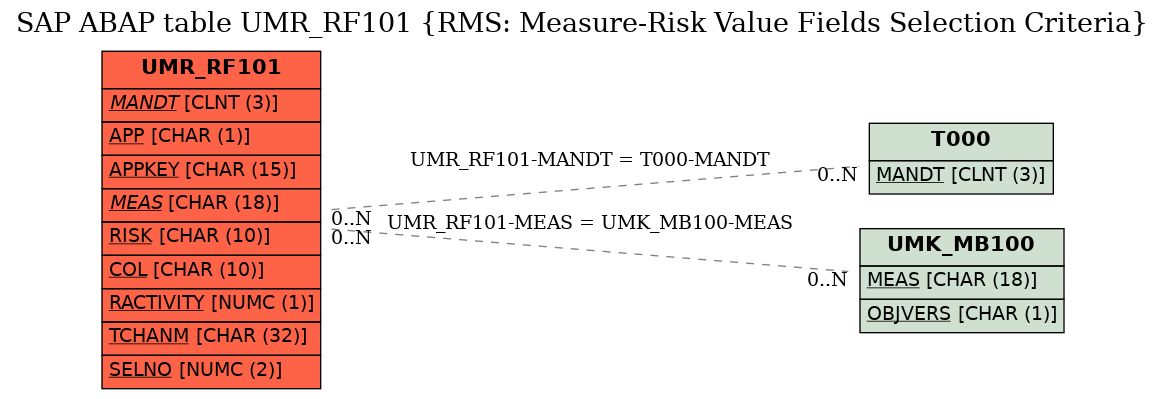

Transparent table	UMR_RF101	Table Relationship Diagram
Short Description	RMS: Measure-Risk Value Fields Selection Criteria

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	APP	☑	UMC_Y_APPLICATION	UMC_D_APPLICATION	CHAR	1	0	Application Key
3	APPKEY	☑	UMC_Y_APPKEY	UMC_D_APPKEY	CHAR	15	0	Technical Name of Application(s)
4	MEAS	☑	UMK_Y_MEAS	UMK_D_MEAS	CHAR	18	0	Measure	UMK_MB100
5	RISK	☑	UMR_Y_RISK	UMR_D_RISK	CHAR	10	0	Risk	*
6	COL	☑	UMB_Y_COL	UMB_D_COL	CHAR	10	0	Technical Name of Value Field	*
7	RACTIVITY	☑	UMR_Y_RACTIVITY	UMR_D_RACTIVITY	NUMC	1	0	Indicator for Use of Risk Activities
8	TCHANM	☑	UMC_Y_TCHANM	UMC_D_TCHANM	CHAR	32	0	Field name dimension (ODBO identifier)
9	SELNO	☑	UMC_Y_SELNO	NUM02	NUMC	2	0	Selection number
10	ICHANM	☐	UMC_Y_ICHANM	UMC_D_ICHANM	CHAR	30	0	Technical Name of Characteristic (BW)
11	SELTYPE	☐	UMB_Y_SELTYPE	UMB_D_SELTYPE	CHAR	1	0	Selection Type
12	CPM_VAR	☐	UMM_Y_VANAME	UMM_D_VANAME	CHAR	15	0	Technical Name of a CPM Variable	*
13	VAR	☐	UMB_Y_VAR	UMB_D_VAR	CHAR	10	0	Technical Name of Time Variable	*
14	PERIOD_SHIFT	☐	UMB_Y_PERIOD_SHIFT	UMB_D_PERIOD_SHIFT	INT4	10	0	Period Offset
15	YEAR_SHIFT	☐	UMB_Y_YEAR_SHIFT	UMB_D_YEAR_SHIFT	INT4	10	0	Fiscal Year Offset
16	AGGFLG	☐	UMC_Y_AGGFLG	UMC_D_AGGFLG	CHAR	1	0	Indicator for Aggregation or Single Values
17	YTD	☐	UMC_Y_YTD	UMC_D_YTD	CHAR	1	0	Aggregation
18	.INCLUDE	☐				0	0	Selection Conditions for Characteristic Values
19	SIGN	☐	UMC_Y_SIGN	UMC_D_SIGN	CHAR	1	0	Sign for selection
20	OPER	☐	UMC_Y_OPER	UMC_D_OPER	CHAR	2	0	Selection operand (EQ, NE, .....)
21	LOW	☐	UMC_Y_LOW	UMC_D_TCHAVAL	CHAR	143	0	Lower interval limit (ODBO)
22	LOWBW	☐	UMC_Y_LOWBW	UMC_D_ICHAVAL	CHAR	60	0	Upper Interval Limit (BW Internal Display)
23	LOWBW_EXT	☐	UMC_Y_LOWBW_EXT	UMC_D_ICHAVALEXT	CHAR	70	0	Lower Interval Limit (BW)
24	HIGH	☐	UMC_Y_HIGH	UMC_D_TCHAVAL	CHAR	143	0	Upper interval limit (ODBO)
25	HIGHBW	☐	UMC_Y_HIGHBW	UMC_D_ICHAVAL	CHAR	60	0	Lower Interval Limit (BW Internal Display)
26	HIGHBW_EXT	☐	UMC_Y_HIGHBW_EXT	UMC_D_ICHAVALEXT	CHAR	70	0	Upper Interval Limit (BW)
27	.INCLUDE	☐				0	0	Selection Conditions for Hierarchy Nodes
28	HINAME	☐	UMC_Y_THINAME	UMC_D_THINAME	CHAR	65	0	Hierarchy (ODBO Name)
29	HINAMEBW	☐	UMC_Y_IHINAME	UMC_D_IHINAME	CHAR	30	0	Hierarchy Name (BW)
30	HINODE	☐	UMC_Y_THINODE	UMC_D_TCHAVAL	CHAR	143	0	Hierarchy Node (ODBO)
31	HINODEBW	☐	UMC_Y_ICHAVAL	UMC_D_ICHAVAL	CHAR	60	0	Field for any Characteristic Value (BW Internal Display)
32	HINODEBW_EXT	☐	UMC_Y_ICHAVALEXT	UMC_D_ICHAVALEXT	CHAR	70	0	Field for any Characteristic Value (BW)
33	HIVERS	☐	UMC_Y_HIVERS	UMC_D_HIVERS	CHAR	3	0	Hierarchy version
34	HIDATE	☐	UMC_Y_HIDATE	DATUM	DATS	8	0	Hierarchy: Key date

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	UMR_RF101	MANDT	T000	MANDT
2	UMR_RF101	MEAS	UMK_MB100	MEAS

History

Last changed by/on	SAP	20060703
SAP Release Created in	320
