SAP ABAP Table UCONHTTPSTATHEAD (UCON: HTTP State Header Table)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷
BC-MID-ICF (Application Component) Internet Communication Framework
⤷
S_UNIFIED_CON_DT_HTTP_SERVER (Package) Designtime HTTP Server
SAP_BASIS (Software Component) SAP Basis Component⤷
BC-MID-ICF (Application Component) Internet Communication Framework⤷
S_UNIFIED_CON_DT_HTTP_SERVER (Package) Designtime HTTP Server
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | UCONHTTPSTATHEAD |

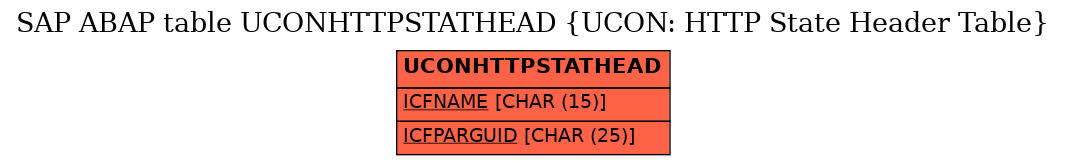

Table Relationship Diagram
|
| Short Description | UCON: HTTP State Header Table |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | C | Customizing table, maintenance only by cust., not SAP import |
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  ICFNAME |
ICFNAME | ICFNAME | CHAR | 15 | 0 | Name of a Service in Internet Communication Framework | ||
| 2 | ICFPARGUID |
ICFPARGUID | SYSUUID_25 | CHAR | 25 | 0 | GUID of Parent Node | ||
| 3 | CURRENT_PHASE |
UCONRFCPHASE | UCONRFCPHASE | CHAR | 1 | 0 | Phase of an RFC Function module in CA fill process | ||
| 4 | SPAU_RELEVANT |
UCONSPAURELEVANT | UCONSPAURELEVAN | CHAR | 1 | 0 | RFC Service should apear in SPAU | ||
| 5 | DURATION_DAYS |
INT4 | INT4 | INT4 | 10 | 0 | Natural number | ||
| 6 | END_PHASE |
AS4DATE | AS4DATE | DATS | 8 | 0 | Date of Last Change |
History
| Last changed by/on | SAP | 20141013 |
| SAP Release Created in | 740 |
