SAP ABAP Table UCONHTTPLOGGING (Logging for UCON HTTP Requests)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-MID-ICF (Application Component) Internet Communication Framework
     ⤷ S_UNIFIED_CON_DDIC (Package) DDIC elements for S_UNIFIED_CON and subpackages

Basic Data

Table Category	TRANSP	Transparent table

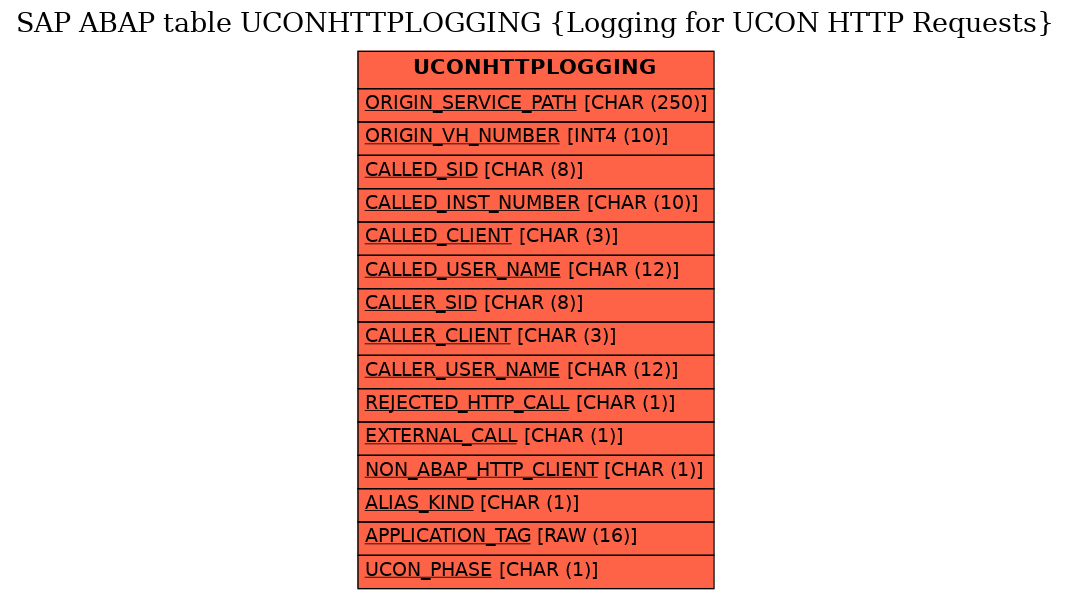

Transparent table	UCONHTTPLOGGING	Table Relationship Diagram
Short Description	Logging for UCON HTTP Requests

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	ORIGIN_SERVICE_PATH	☑			CHAR	250	0
2	ORIGIN_VH_NUMBER	☑			INT4	10	0
3	CALLED_SID	☑			CHAR	8	0
4	CALLED_INST_NUMBER	☑			CHAR	10	0
5	CALLED_CLIENT	☑			CHAR	3	0
6	CALLED_USER_NAME	☑			CHAR	12	0
7	CALLER_SID	☑			CHAR	8	0
8	CALLER_CLIENT	☑			CHAR	3	0
9	CALLER_USER_NAME	☑			CHAR	12	0
10	REJECTED_HTTP_CALL	☑			CHAR	1	0
11	EXTERNAL_CALL	☑			CHAR	1	0
12	NON_ABAP_HTTP_CLIENT	☑	HTTP_CLIENT_KIND	HTTP_CLIENT_KIND	CHAR	1	0	Kind of HTTP Client
13	ALIAS_KIND	☑			CHAR	1	0
14	APPLICATION_TAG	☑			RAW	16	0
15	UCON_PHASE	☑			CHAR	1	0
16	ORIGIN_PATH_WO_SUFFIX	☐			CHAR	250	0
17	ENDPOINT_SERVICE_PATH	☐			CHAR	250	0
18	ENDPOINT_VH_NUMBER	☐			INT4	10	0
19	ENDPOINT_ICFNAME	☐			CHAR	15	0
20	ENDPOINT_ICFPARGUID	☐			CHAR	25	0
21	EXECUTING_INSTANCE	☐			CHAR	40	0
22	CALLER_DESTINATION	☐			CHAR	32	0
23	CALLER_PROGRAM	☐			CHAR	40	0
24	PRE_COMPONENT	☐	UCONPRECOMPONENT	CHAR32	CHAR	32	0	Pre-Component
25	PARTNER_IP_ADDRESS	☐			CHAR	64	0
26	FORWARDED_IP_ADDRESSES	☐			CHAR	128	0
27	ROOT_CONTEXT_ID	☐			CHAR	32	0
28	CONNECTION_ID	☐			CHAR	32	0
29	STATUS_CODE	☐			INT2	5	0
30	USER_AGENT	☐			RAW	16	0
31	TSTMP_FIRST_CALL	☐			CHAR	16	0
32	TSTMP_PREVIOUS_CALL	☐			CHAR	16	0
33	TSTMP_LAST_CALL	☐			CHAR	16	0
34	COUNTER_SAME_SYSTEM	☐			INT4	10	0
35	COUNTER_OTHER_SYSTEM	☐			INT4	10	0
36	COUNTER_INTERNAL_CALL	☐			INT4	10	0

History

Last changed by/on	SAP	20141013
SAP Release Created in	740
