SAP ABAP Table U_16701 (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

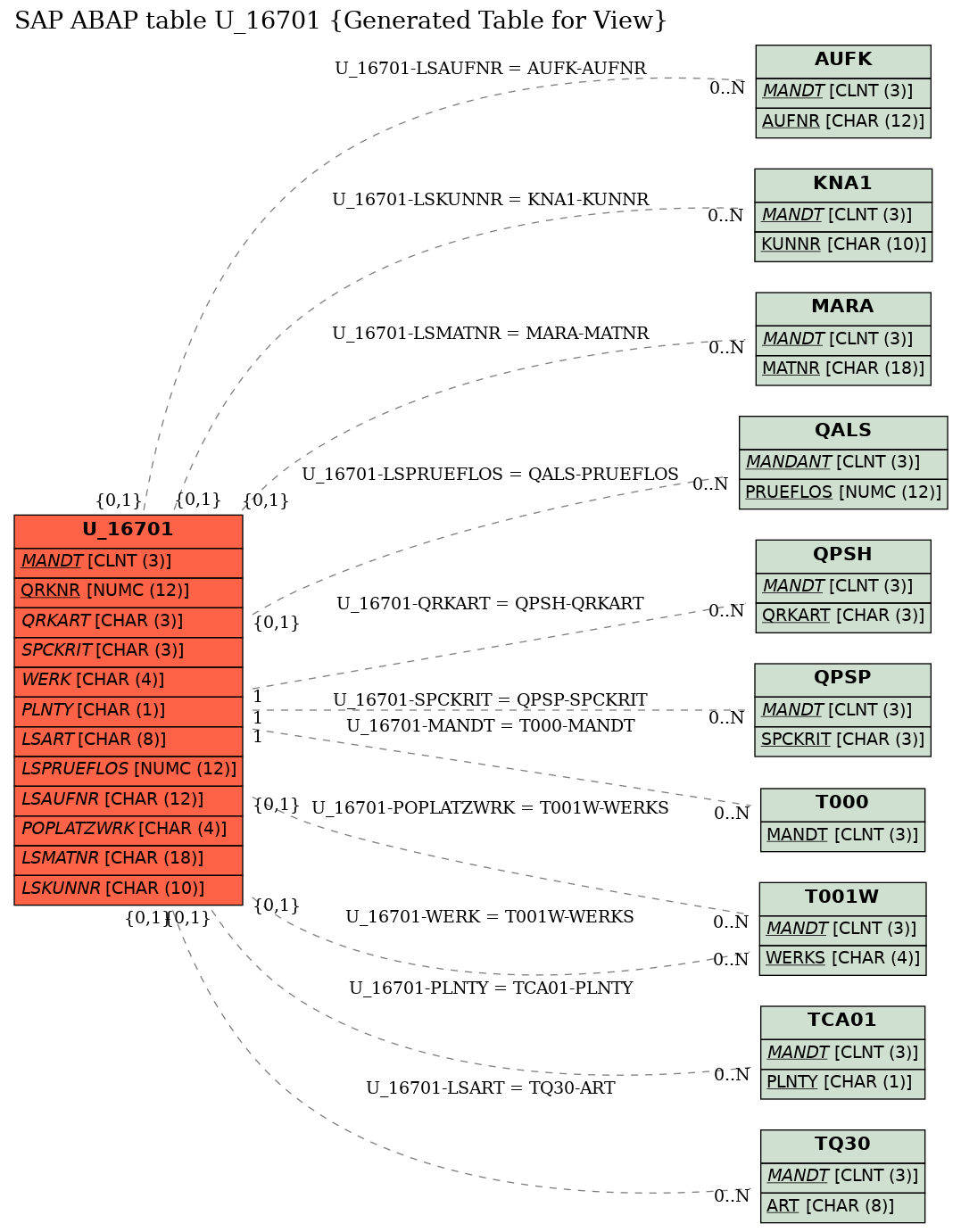

General view structure	U_16701	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster	QASH
Delivery Class
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	QRKNR	☑	QQRKNR	QQRKNR	NUMC	12	0	Control Chart Number
3	QRKART	☐	QQRKART	QQRKART	CHAR	3	0	Control Chart Type	QPSH
4	SPCKRIT	☐	QSPCKRIT	QSPCKRIT	CHAR	3	0	SPC Criterion	QPSP
5	WERK	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
6	PLNTY	☐	PLNTY	PLNTY	CHAR	1	0	Task List Type	TCA01
7	PLNNR	☐	PLNNR	PLNNR	CHAR	8	0	Key for Task List Group
8	PLNAL	☐	PLNAL	ALTNR	CHAR	2	0	Group Counter
9	PLNFL	☐	PLNFOLGE	PLNFOLGE	CHAR	6	0	Sequence
10	PLNKN	☐	PLNKN	KNTNR	NUMC	8	0	Number of the task list node
11	PLMKNR	☐	QMERKNRP	QMERKNRP	NUMC	4	0	Inspection Characteristic Number
12	LSART	☐	QPART	QPART	CHAR	8	0	Inspection Type	TQ30
13	LSHERKUNFT	☐	QHERK	QHERK	CHAR	2	0	Inspection Lot Origin
14	LSPRUEFLOS	☐	QPLOS	QPLOS	NUMC	12	0	Inspection Lot Number	QALS
15	LSAUFNR	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	AUFK
16	POPLATZ	☐	QPRPLATZ	ARBPL	CHAR	8	0	Work Center
17	POPLATZWRK	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
18	LSMATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number	MARA
19	LSKUNNR	☐	QKUNWE	KUNNR	CHAR	10	0	Customer (Ship-To Party)	KNA1
20	KURZTEXT	☐	QKURZTEXT	QKURZTEXT	CHAR	40	0	Short Text
21	STATUS	☐	QQRKSTATUS	QQRKSTATUS	NUMC	1	0	Control Chart Status
22	ENAME	☐	ERNAM	USNAM	CHAR	12	0	Name of Person who Created the Object
23	EDATUM	☐	ERDAT	DATUM	DATS	8	0	Date on which the record was created
24	EZEIT	☐	QZEITERSTL	QZEIT	TIMS	6	0	Time at which data record was created
25	ANAME	☐	AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
26	ADATUM	☐	AEDAT	DATUM	DATS	8	0	Last Changed On
27	SOLLWERT	☐	QSOLLWERTE	QSOLLWERTE	FLTP	16	16	Target Value for a Quantitative Characteristic
28	TOLERANZOB	☐	QTOLOB	QSOLLWERTE	FLTP	16	16	Upper Specification Limit
29	TOLERANZUN	☐	QTOLUN	QSOLLWERTE	FLTP	16	16	Lower Tolerance Limit
30	GRENZEOB1	☐	QGRENZOB1	QSOLLWERTE	FLTP	16	16	First Upper Specification Limit
31	GRENZEUN1	☐	QGRENZUN1	QSOLLWERTE	FLTP	16	16	First Lower Specification Limit
32	GRENZEOB2	☐	QGRENZOB2	QSOLLWERTE	FLTP	16	16	Second Upper Specification Limit
33	GRENZEUN2	☐	QGRENZUN2	QSOLLWERTE	FLTP	16	16	Second Lower Specification Limit
34	STELLEN	☐	QSTELLEN	QSTELLEN	INT1	3	0	Number of Places to the Right of a Decimal Point (Accuracy)
35	SOLLWNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
36	TOLOBNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
37	TOLUNNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
38	GRENZOB1NI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
39	GRENZUN1NI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
40	GRENZOB2NI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
41	GRENZUN2NI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
42	DUMMY10	☐	QTXT10	QTXT10	CHAR	10	0	Text Line for Additional Information
43	DUMMY20	☐	QTXT20	QTXT20	CHAR	20	0	Text Line for Additional Information
44	DUMMY40	☐	QTXT40	QTXT40	CHAR	40	0	Text Line for Additional Information

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	U_16701	LSART	TQ30	ART	REF	C	CN
2	U_16701	LSAUFNR	AUFK	AUFNR	REF	C	CN
3	U_16701	LSKUNNR	KNA1	KUNNR	REF	C	CN
4	U_16701	LSMATNR	MARA	MATNR	REF	C	CN
5	U_16701	LSPRUEFLOS	QALS	PRUEFLOS	REF	C	CN
6	U_16701	MANDT	T000	MANDT	KEY	1	CN
7	U_16701	PLNTY	TCA01	PLNTY	REF	C	CN
8	U_16701	POPLATZWRK	T001W	WERKS	REF	C	CN
9	U_16701	QRKART	QPSH	QRKART	REF	1	CN
10	U_16701	SPCKRIT	QPSP	SPCKRIT	REF	1	CN
11	U_16701	WERK	T001W	WERKS	REF	C	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
