SAP ABAP Table TSOCM_SBITM_CHCK (Sample Lower-Level Change Items)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-CM (Application Component) Change Request Management
     ⤷ AI_SOLAR_CHM_BASE (Package) Integration with SAP Change Manager (Basis Package)

Basic Data

Table Category	TRANSP	Transparent table

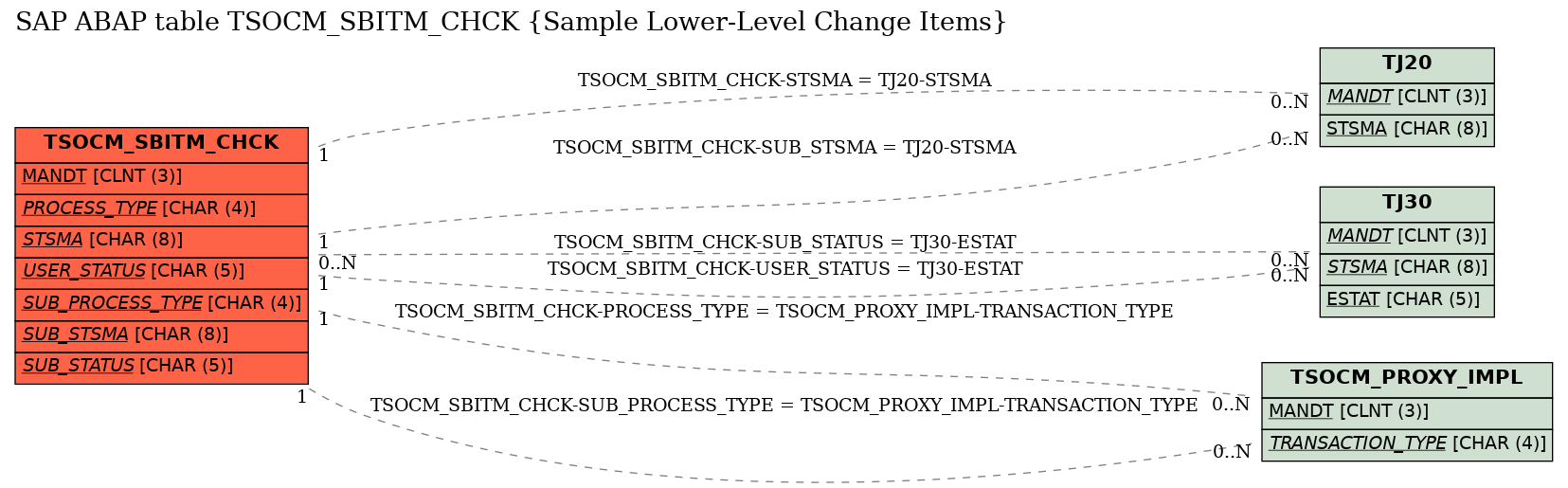

Transparent table	TSOCM_SBITM_CHCK	Table Relationship Diagram
Short Description	Sample Lower-Level Change Items

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	PROCESS_TYPE	☑	CRMT_PROCESS_TYPE	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	TSOCM_PROXY_IMPL
3	STSMA	☑	J_STSMA	J_STSMA	CHAR	8	0	Status Profile	TJ20
4	USER_STATUS	☑	J_ESTAT	J_ESTAT	CHAR	5	0	User Status	TJ30
5	SUB_PROCESS_TYPE	☑	CRMT_PROCESS_TYPE	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	TSOCM_PROXY_IMPL
6	SUB_STSMA	☑	J_STSMA	J_STSMA	CHAR	8	0	Status Profile	TJ20
7	SUB_STATUS	☑	J_ESTAT	J_ESTAT	CHAR	5	0	User Status	TJ30

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	TSOCM_SBITM_CHCK	PROCESS_TYPE	TSOCM_PROXY_IMPL	TRANSACTION_TYPE	KEY	1	CN
2	TSOCM_SBITM_CHCK	STSMA	TJ20	STSMA	KEY	1	CN
3	TSOCM_SBITM_CHCK	SUB_PROCESS_TYPE	TSOCM_PROXY_IMPL	TRANSACTION_TYPE	KEY	1	CN
4	TSOCM_SBITM_CHCK	SUB_STATUS	TJ30	ESTAT
5	TSOCM_SBITM_CHCK	SUB_STSMA	TJ20	STSMA	KEY	1	CN
6	TSOCM_SBITM_CHCK	USER_STATUS	TJ30	ESTAT	KEY	1	CN

History

Last changed by/on	SAP	20111123
SAP Release Created in	320
