SAP ABAP Table TSOCM_CON_ACTION (Actions in CHARM Context for User Status)
Hierarchy
ST (Software Component) SAP Solution Manager Tool
   SV-SMG-CM (Application Component) Change Request Management
     AI_SOLAR_CHM_CONTEXT_TYPE_POOL (Package) Solution Manager Context (Types and Interfaces)
Basic Data
Table Category TRANSP    Transparent table

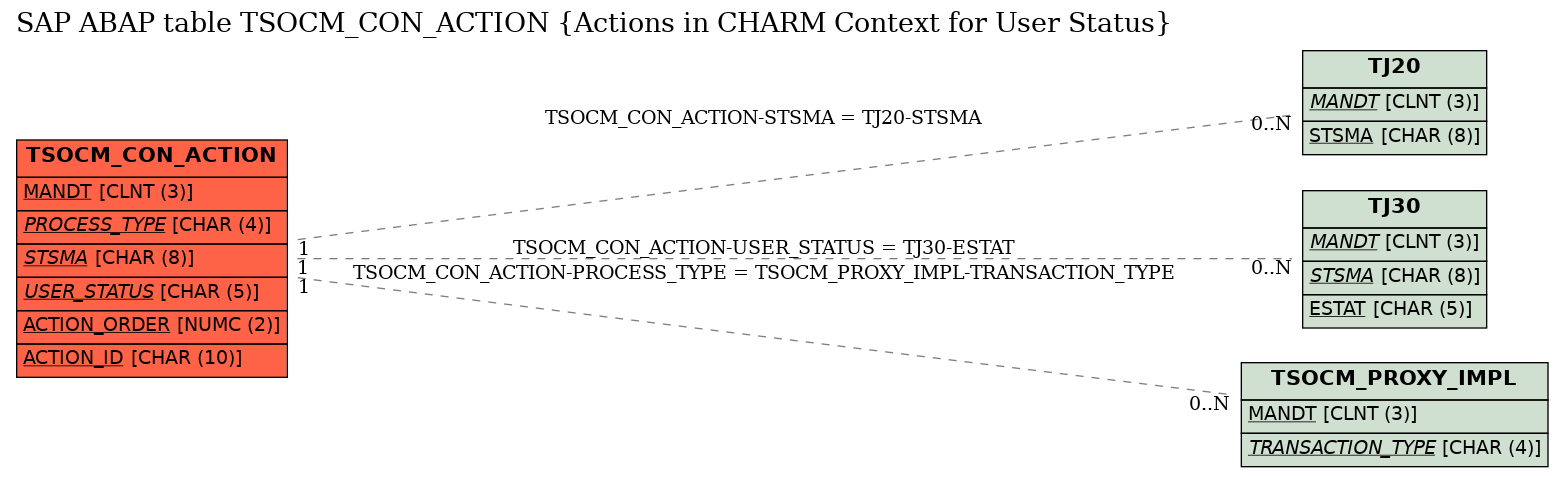

Transparent table TSOCM_CON_ACTION   Table Relationship Diagram
Short Description Actions in CHARM Context for User Status
Delivery and Maintenance
Pool/cluster
Delivery Class E   Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance X   Display/Maintenance Allowed
Components

Field Key Data Element Domain Data
Type
Length Decimal
Places
Short Description Check
table
1 MANDT MANDT MANDT CLNT 3   0   Client *
2 PROCESS_TYPE CRMT_PROCESS_TYPE CRM_PROCESS_TYPE CHAR 4   0   Business Transaction Type TSOCM_PROXY_IMPL
3 STSMA J_STSMA J_STSMA CHAR 8   0   Status Profile TJ20
4 USER_STATUS J_ESTAT J_ESTAT CHAR 5   0   User Status TJ30
5 ACTION_ORDER CHM_ACTION_ORDER_SOCM NUM2 NUMC 2   0   Sequence of Actions
6 ACTION_ID AGS_SOCM_CONT_ACTIONS AGS_SOCM_CONT_ACTIONS CHAR 10   0   Activity in the "Context" Tab of a Transaction
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 TSOCM_CON_ACTION PROCESS_TYPE TSOCM_PROXY_IMPL TRANSACTION_TYPE KEY 1 CN
2 TSOCM_CON_ACTION STSMA TJ20 STSMA KEY 1 CN
3 TSOCM_CON_ACTION USER_STATUS TJ30 ESTAT KEY 1 CN
History
Last changed by/on SAP  20111123
SAP Release Created in 400
