SAP ABAP Table TGSUO (SAP Structural Graphics: User-Specific Settings)
Hierarchy
☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-FES-GRA (Application Component) Graphic
     ⤷ SGRP (Package) ABAP Graphics Development
Basic Data
Table Category TRANSP    Transparent table

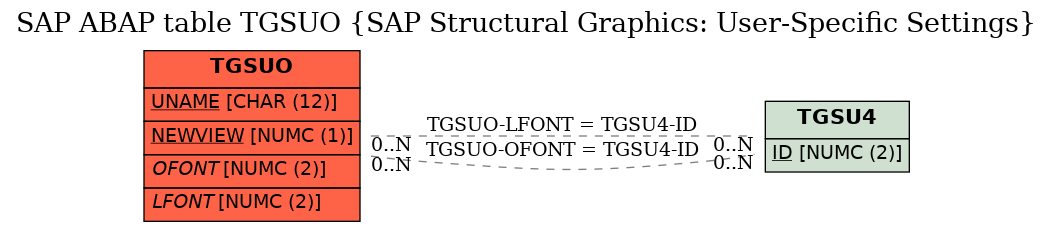

Transparent table TGSUO   Table Relationship Diagram
Short Description SAP Structural Graphics: User-Specific Settings
Delivery and Maintenance
Pool/cluster
Delivery Class C   Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance X   Display/Maintenance Allowed
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 UNAME UNAME UNAME CHAR 12   0   User Name
2 NEWVIEW OPTVIEW NUM1 NUMC 1   0   Other view
3 DEPTH OPTDEPTH NUM02 NUMC 2   0   Display depth
4 DISPLAY OPTDISPLAY NUM01 NUMC 1   0   Display mode overview/detail
5 KNOCKON OPTKNOCKON NUM01 NUMC 1   0   Subsequent mode
6 REPRESENT OPTREPRES NUM1 NUMC 1   0   Display mode
7 PROFILE OPTPROFILE CHAR3 CHAR 3   0   Start profile
8 DIRECTION OPTDIRECT NUM1 NUMC 1   0   Alignment of structure (before rotation)
9 ROTATION OPTROTATE NUM3 NUMC 3   0   Rotation of the structure
10 GRID OPTGRID CHAR1_X CHAR 1   0   Auxiliary grid
11 ALIGNMENT OPTALIGN NUM1 NUMC 1   0   Alignment of text for object
12 OFONT OPTOFONT GSUFONTID NUMC 2   0   Font for object texts TGSU4
13 OUTERSCALX OPTOUTSCX NUMC3 NUMC 3   0   Scaling the horizontal, outer object frame (in percent)
14 OUTERSCALY OPTOUTSCY NUMC3 NUMC 3   0   Scaling the vertical, outer object frame (in percent)
15 INNERSCALX OPTINNSCX NUMC3 NUMC 3   0   Scaling the horizontal, inner object frame (in percent)
16 INNERSCALY OPTINNSCY NUMC3 NUMC 3   0   Scaling the inner, vertical object frame (in percent)
17 SHADOW OPTSHADOW CHAR1_X CHAR 1   0   Display objects with shadow
18 SOLID OPTSOLID CHAR1_X CHAR 1   0   Display objects filled
19 LINEWRAP OPTLINEWRP CHAR1_X CHAR 1   0   Line break for object text in overview mode
20 LINKLOOK OPTLNKLOOK NUM1 NUMC 1   0   Display of linking lines (straight/slanted)
21 LFONT OPTLFONT GSUFONTID NUMC 2   0   Font for link texts TGSU4
22 LBUTTON OPTBUTTON CHAR1_X CHAR 1   0   Mark links with button
23 LTEXT OPTLTEXT CHAR1_X CHAR 1   0   Mark links with text
24 ARROWS OPTARROWS CHAR1_X CHAR 1   0   Mark links with arrows
25 GROUPTEXTS OPTGROUPTX CHAR1_X CHAR 1   0   Combine link texts that are the same
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 TGSUO LFONT TGSU4 ID ID   CN
2 TGSUO OFONT TGSU4 ID ID   CN
History
Last changed by/on SAP  19950403
SAP Release Created in
