SAP ABAP Table TGN_SYS_VAL (relates a DB System to a Validation Class)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-GEN (Application Component) Generation
     ⤷ SMWGEN (Package) Middleware Generation

Basic Data

Table Category	TRANSP	Transparent table

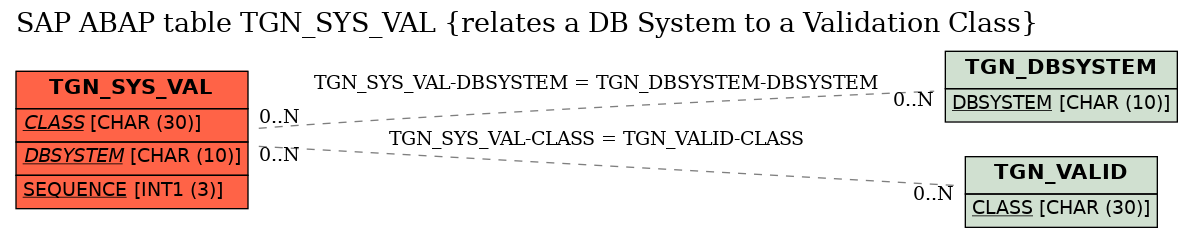

Transparent table	TGN_SYS_VAL	Table Relationship Diagram
Short Description	relates a DB System to a Validation Class

Delivery and Maintenance

Pool/cluster
Delivery Class	S	System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLASS	☑	TGN_VALCLASS		CHAR	30	0	Validation Class Name	TGN_VALID
2	DBSYSTEM	☑	TGN_DBSYST		CHAR	10	0	DB System (for Index Generation)	TGN_DBSYSTEM
3	SEQUENCE	☑	TGN_VAL_SEQU		INT1	3	0	sequence of the validation

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	TGN_SYS_VAL	CLASS	TGN_VALID	CLASS
2	TGN_SYS_VAL	DBSYSTEM	TGN_DBSYSTEM	DBSYSTEM

History

Last changed by/on	SAP	20020829
SAP Release Created in	400
