SAP ABAP Table TCRM_EWA_EL_GEOR (EEWA auxiliary data for GenIL object relation)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-WA (Application Component) Waste Management
     ⤷ CRM_EEWA_BASE (Package) SAP Waste and Recycling CRM Basis

Basic Data

Table Category	TRANSP	Transparent table

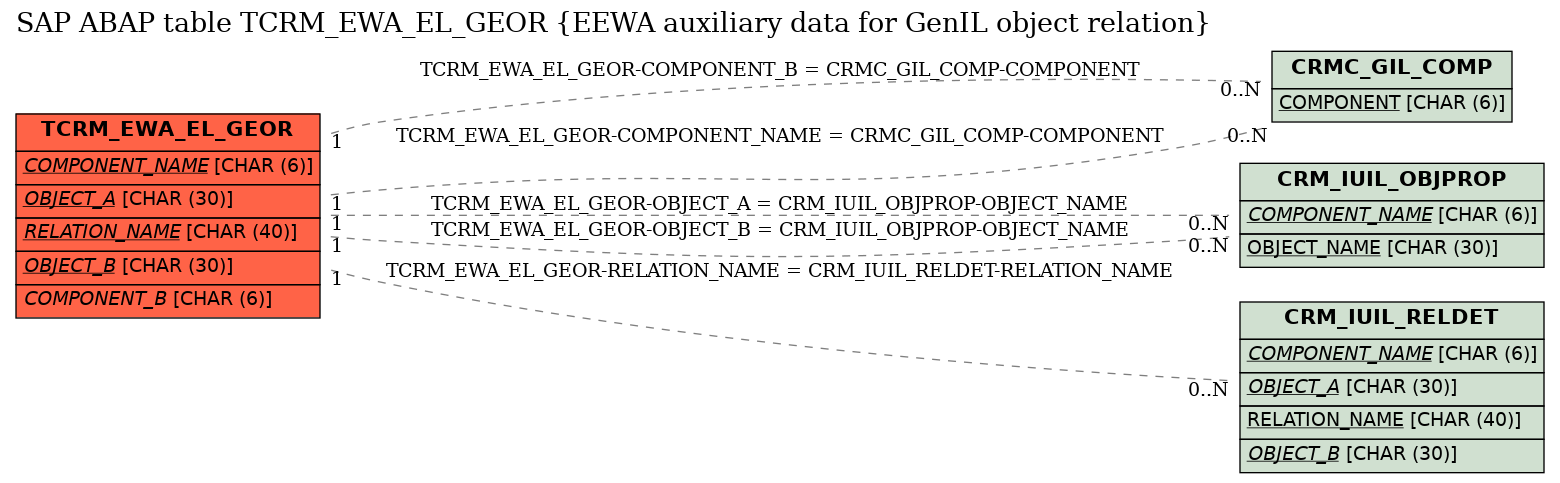

Transparent table	TCRM_EWA_EL_GEOR	Table Relationship Diagram
Short Description	EEWA auxiliary data for GenIL object relation

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	COMPONENT_NAME	☑	CRMT_COMPONENT_NAME	CRM_COMPONENT_NAME	CHAR	6	0	Component Name	CRMC_GIL_COMP
2	OBJECT_A	☑	CRMT_EXT_OBJ_A_NAME	CRM_OBJEXT_NAME	CHAR	30	0	External Name of Source Object	CRM_IUIL_OBJPROP
3	RELATION_NAME	☑	CRMT_RELATION_NAME	CRM_RELATION_NAME	CHAR	40	0	Relation Name	CRM_IUIL_RELDET
4	OBJECT_B	☑	CRMT_EXT_OBJ_B_NAME	CRM_OBJEXT_NAME	CHAR	30	0	External Name of Assigned Object	CRM_IUIL_OBJPROP
5	COMPONENT_B	☐	CRMT_COMPONENT_NAME	CRM_COMPONENT_NAME	CHAR	6	0	Component Name	CRMC_GIL_COMP
6	RELATIONNAME	☐	CRM_EWAEL_SHORTNAME	CHAR30	CHAR	30	0	EEWA Short name
7	KEYMAPPING	☐	CRM_EWAEL_DRELATIONKEYMAPPING	CHAR255	CHAR	255	0	EEWA Description for key field mapping (s1=d1,s2=d2,...)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	TCRM_EWA_EL_GEOR	COMPONENT_B	CRMC_GIL_COMP	COMPONENT	KEY	1	CN
2	TCRM_EWA_EL_GEOR	COMPONENT_NAME	CRMC_GIL_COMP	COMPONENT	KEY	1	CN
3	TCRM_EWA_EL_GEOR	OBJECT_A	CRM_IUIL_OBJPROP	OBJECT_NAME	KEY	1	CN
4	TCRM_EWA_EL_GEOR	OBJECT_B	CRM_IUIL_OBJPROP	OBJECT_NAME	KEY	1	CN
5	TCRM_EWA_EL_GEOR	RELATION_NAME	CRM_IUIL_RELDET	RELATION_NAME	KEY	1	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	701
