SAP ABAP Table TCNCT (Network/Hierarchy Graphics: Texts on Frame Profiles)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷
BC-FES-GRA (Application Component) Graphic
⤷
SGRC (Package) ABAP Graphics Development: Network, Bar Chart
SAP_BASIS (Software Component) SAP Basis Component⤷
BC-FES-GRA (Application Component) Graphic⤷
SGRC (Package) ABAP Graphics Development: Network, Bar Chart
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | TCNCT |

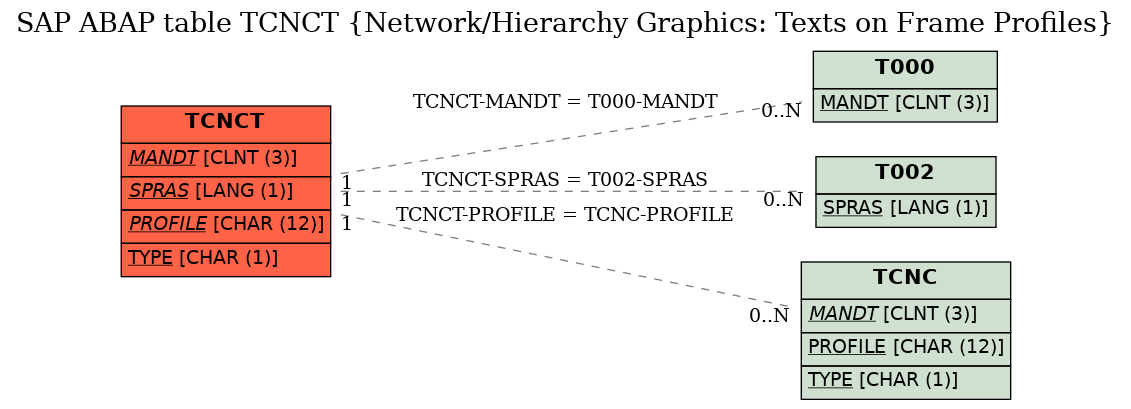

Table Relationship Diagram
|
| Short Description | Network/Hierarchy Graphics: Texts on Frame Profiles |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | E | Control table, SAP and customer have separate key areas |
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  MANDT |
MANDT | MANDT | CLNT | 3 | 0 | Client | T000 | |
| 2 | SPRAS |
SPRAS | SPRAS | LANG | 1 | 0 | Language Key | T002 | |
| 3 | PROFILE |
NETCLUSPRO | NETCLUSPRO | CHAR | 12 | 0 | Frame group for network/hierarchy graphics | TCNC | |
| 4 | TYPE |
NETTYPE | NETTYPE | CHAR | 1 | 0 | Type for identifying objects | ||
| 5 | KTEXT |
TEXT40 | TEXT40 | CHAR | 40 | 0 | Text, 40 Characters Long |
Foreign Keys
| |
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right |
|---|---|---|---|---|---|---|---|
 |
|
|
|
|
|
|
|
| 1 | TCNCT | MANDT |  T000 |
MANDT |
KEY | 1 | CN |
| 2 | TCNCT | PROFILE | TCNC |
PROFILE |
TEXT | 1 | CN |
| 3 | TCNCT | SPRAS | T002 |
SPRAS |
KEY | 1 | CN |
History
| Last changed by/on | SAP | 20130604 |
| SAP Release Created in |
