SAP ABAP Table T7KWLORIPR (T7KW: LOIO Ingoing Relationship Attributes)

Hierarchy

☛ SAP_ABA (Software Component) Cross-Application Component
   ⤷ CA-GTF-XF (Application Component) SAP Expert Finder
     ⤷ PWPC_KWF_01 (Package) HR Interface to SKWF

Basic Data

Table Category	TRANSP	Transparent table

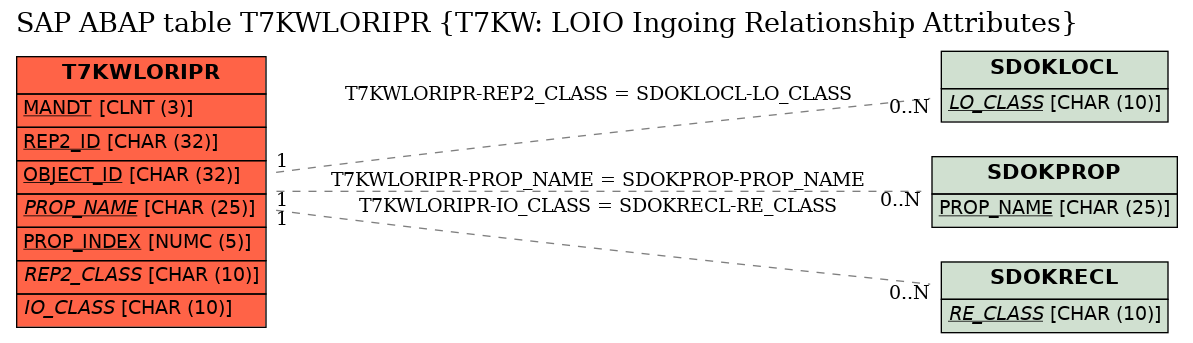

Transparent table	T7KWLORIPR	Table Relationship Diagram
Short Description	T7KW: LOIO Ingoing Relationship Attributes

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	REP2_ID	☑	SDOK_LOID	SDOK_DOCID	CHAR	32	0	Logical document
3	OBJECT_ID	☑	SDOK_REID	SDOK_DOCID	CHAR	32	0	Relationship between logical and physical documents
4	PROP_NAME	☑	SDOK_PROPN	SDOK_PROPN	CHAR	25	0	Attribute of a document or a relationship	SDOKPROP
5	PROP_INDEX	☑	SDOK_INDX	SYNUM05	NUMC	5	0	KPro: General counter (uniqueness in DB)
6	REP2_CLASS	☐	SDOK_CLASS	SDOK_CLASS	CHAR	10	0	Document class	SDOKLOCL
7	IO_CLASS	☐	SDOK_RECL	SDOK_CLASS	CHAR	10	0	Relationship class	SDOKRECL
8	PROP_VALUE	☐	SDOK_PROPV	SDOK_PROPV	CHAR	64	0	Attribute Value
9	PROP_SECI	☐	SDOK_PROPI	SDOK_PROPI	CHAR	12	0	Attribute feature (shortened)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	T7KWLORIPR	IO_CLASS	SDOKRECL	RE_CLASS	REF	1	CN
2	T7KWLORIPR	PROP_NAME	SDOKPROP	PROP_NAME	KEY	1	CN
3	T7KWLORIPR	REP2_CLASS	SDOKLOCL	LO_CLASS	REF	1	CN

History

Last changed by/on	SAP	20040312
SAP Release Created in	110
