SAP ABAP Table Field SXMSMSGREF-FILTERGUID (Filter ID)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷
BC-XI-IS-IEN (Application Component) Integration Engine
⤷
SXMSJOB (Package) XI: Time-Driven Message Processing
SAP_BASIS (Software Component) SAP Basis Component⤷
BC-XI-IS-IEN (Application Component) Integration Engine⤷
SXMSJOB (Package) XI: Time-Driven Message Processing
Basic Data
| Table | SXMSMSGREF | Message Reference Storage |
| Field | FILTERGUID | Filter ID |
| Position | 20 |
Field Attributes
| Key | ||
| Mandatory | ||
| Data Element | SXMSFILTERGUID | Filter ID |

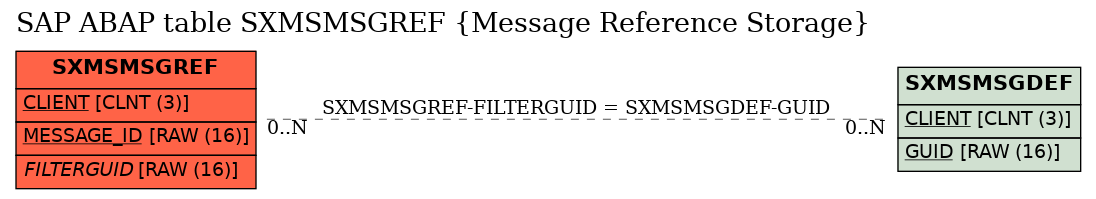

| Check Table | SXMSMSGDEF | Message Definition |
| Nesting depth for includes | 0 | |
| Internal ABAP Type | X | Byte Seq. (heXadecimal), in DDIC metadata also for INT1/2/4 |
| Internal Length in Bytes | 16 | |
| Reference table | ||
| Name of Include | ||
| Reference Field (CURR or QTY) | ||
| Check module | ||
| NOT NULL forced | X | NOT NULL forced |
| Data Type in ABAP Dictionary | RAW | Uninterpreted sequence of bytes |
| Length (No. of Characters) | 16 | |
| Number of Decimal Places | 0 | |
| Domain name | SYSUUID | Universal Unique Identifier |
| Origin of an input help (F4) | P | Input help implemented with check table |
| DD: Flag if it is a table | No / FALSE | |
| DD: Depth for structured types | 0 | |
| DD: Component Type | E | Data element |
| Type of Object Referenced | No Information | |
| DD: Indicator for a Language Field | Not selected as language field | |
| Position of the field in the table | 0 |
Contained in Index
| Table Name | Index Name | Position | Field Name | DESC Flag |
|---|---|---|---|---|
| SXMSMSGREF | 004 | 2 | FILTERGUID | |
History
| Last changed by/on | SAP | 20110908 |
| SAP Release Created in | 640 |
