SAP ABAP Table STU3COTABC (Definition of DB2 OS/390 and OS/390 Commands(Customer Table))
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷
BC-DB-DB2 (Application Component) DB2 for z/OS
⤷
STU3 (Package) Development Class for Database Monitor
SAP_BASIS (Software Component) SAP Basis Component⤷
BC-DB-DB2 (Application Component) DB2 for z/OS⤷
STU3 (Package) Development Class for Database Monitor
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | STU3COTABC |

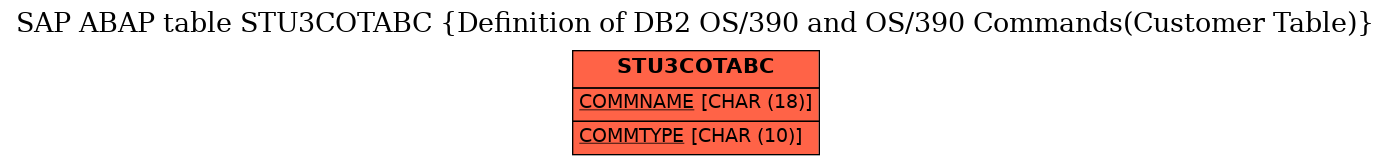

Table Relationship Diagram
|
| Short Description | Definition of DB2 OS/390 and OS/390 Commands(Customer Table) |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | C | Customizing table, maintenance only by cust., not SAP import |
| Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  COMMNAME |
STU3NAME | CHAR18 | CHAR | 18 | 0 | Logical name of DB2/390 or OS/390 command | ||
| 2 | COMMTYPE |
STU3TYPE | CHAR010 | CHAR | 10 | 0 | Type of DB2/390 or OS/390 command | ||
| 3 | COMMUSERS |
STU3USERS | CHAR010 | CHAR | 10 | 0 | User of logical DB2/OS390 command | ||
| 4 | COMMOWNER |
STU3OWNER | DB2CHAR04 | CHAR | 4 | 0 | Owner of the DB2 command | ||
| 5 | COMMTEXT1 |
STU3TEXT | CHAR72 | CHAR | 72 | 0 | Text of logical command for DB2/390 or OS/390 | ||
| 6 | COMMTEXT2 |
STU3TEXT | CHAR72 | CHAR | 72 | 0 | Text of logical command for DB2/390 or OS/390 | ||
| 7 | COMMTEXT3 |
STU3TEXT | CHAR72 | CHAR | 72 | 0 | Text of logical command for DB2/390 or OS/390 | ||
| 8 | COMMTEXT4 |
STU3TEXT | CHAR72 | CHAR | 72 | 0 | Text of logical command for DB2/390 or OS/390 | ||
| 9 | COMMTEXT5 |
STU3TEXT | CHAR72 | CHAR | 72 | 0 | Text of logical command for DB2/390 or OS/390 | ||
| 10 | COMMTEXT6 |
STU3TEXT | CHAR72 | CHAR | 72 | 0 | Text of logical command for DB2/390 or OS/390 | ||
| 11 | COMMLENGTH |
STU3LENGTH | INT4 | 10 | 0 | Length of DB2/390 or OS/390 command | |||
| 12 | CREATEDBY |
SYUNAME | SYCHAR12 | CHAR | 12 | 0 | User Name | ||
| 13 | CREATEDATE |
SYDATUM | SYDATS | DATS | 8 | 0 | System Date | ||
| 14 | CREATETIME |
SYUZEIT | SYTIME | TIMS | 6 | 0 | System Time | ||
| 15 | CHANGEDBY |
SYUNAME | SYCHAR12 | CHAR | 12 | 0 | User Name | ||
| 16 | CHANGEDATE |
SYDATUM | SYDATS | DATS | 8 | 0 | System Date | ||
| 17 | CHANGETIME |
SYUZEIT | SYTIME | TIMS | 6 | 0 | System Time |
History
| Last changed by/on | SAP | 20130604 |
| SAP Release Created in |
