SAP ABAP Table SRT_RTC_WSIL (SOAP Runtime Cache: WSIL Data)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-ESI-WS-ABA-CFG (Application Component) WebServices ABAP Configuration
     ⤷ SOAP_CONFIG (Package) SOAP Configuration Framework

Basic Data

Table Category	TRANSP	Transparent table

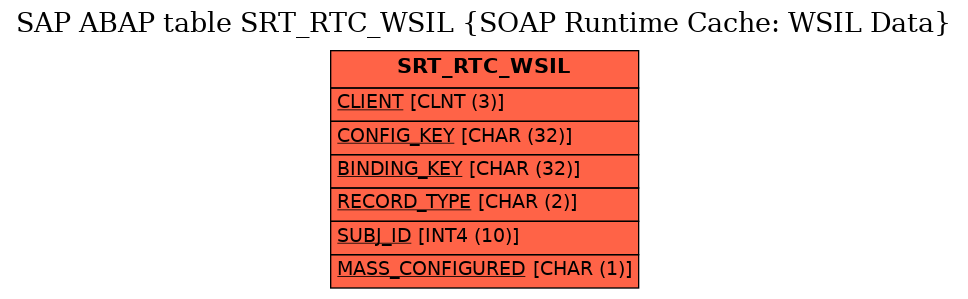

Transparent table	SRT_RTC_WSIL	Table Relationship Diagram
Short Description	SOAP Runtime Cache: WSIL Data

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	CONFIG_KEY	☑	GUID_32	SYSUUID_C	CHAR	32	0	GUID in 'CHAR' Format in Uppercase
3	BINDING_KEY	☑	GUID_32	SYSUUID_C	CHAR	32	0	GUID in 'CHAR' Format in Uppercase
4	RECORD_TYPE	☑	SRT_WSP_RTC_WSIL_REC_TYPE	SRT_WSP_RTC_WSIL_REC_TYPE	CHAR	2	0	WSP Runtime Cache WSIL Record Type
5	SUBJ_ID	☑			INT4	10	0
6	MASS_CONFIGURED	☑	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
7	INT_NAME	☐	SRT_WSP_DB_WSIL_ENTITY	SRT_WSP_DB_WSIL_ENTITY	CHAR	255	0	WSIL Entity for Database
8	EXT_NAMESPACE	☐	SRT_WSP_DB_WSIL_ENTITY	SRT_WSP_DB_WSIL_ENTITY	CHAR	255	0	WSIL Entity for Database
9	LONG_VALUE_NS	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
10	EXT_NAME	☐	SRT_WSP_DB_WSIL_ENTITY	SRT_WSP_DB_WSIL_ENTITY	CHAR	255	0	WSIL Entity for Database
11	LONG_VALUE_NAME	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
12	DESCRIPTION	☐	SRT_WSP_DESCRIPTION	SRT_WSP_DESCRIPTION	CHAR	120	0	WSP Description
13	WSDL_PATH	☐	SRT_WSP_DB_WSIL_ENTITY	SRT_WSP_DB_WSIL_ENTITY	CHAR	255	0	WSIL Entity for Database
14	ATTRIB_1	☐	SRT_WSP_DB_WSIL_ENTITY	SRT_WSP_DB_WSIL_ENTITY	CHAR	255	0	WSIL Entity for Database
15	LONG_VALUE_1	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
16	ATTRIB_2	☐	SRT_WSP_DB_WSIL_ENTITY	SRT_WSP_DB_WSIL_ENTITY	CHAR	255	0	WSIL Entity for Database
17	LONG_VALUE_2	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
18	ATTRIB_3	☐	SRT_WSP_DB_WSIL_ENTITY	SRT_WSP_DB_WSIL_ENTITY	CHAR	255	0	WSIL Entity for Database
19	LONG_VALUE_3	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
20	ATTRIB_4	☐	SRT_WSP_DB_WSIL_ENTITY	SRT_WSP_DB_WSIL_ENTITY	CHAR	255	0	WSIL Entity for Database
21	LONG_VALUE_4	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)

History

Last changed by/on	SAP	20100420
SAP Release Created in	710
