SAP ABAP Table SRMCONT_UN (SRM: Table for Document Contents (Import/Export))

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-SRV-RM (Application Component) SAP Records Management
     ⤷ SRM_GENERIC_SP (Package) Records Management Generic Service Provider

Basic Data

Table Category	TRANSP	Transparent table

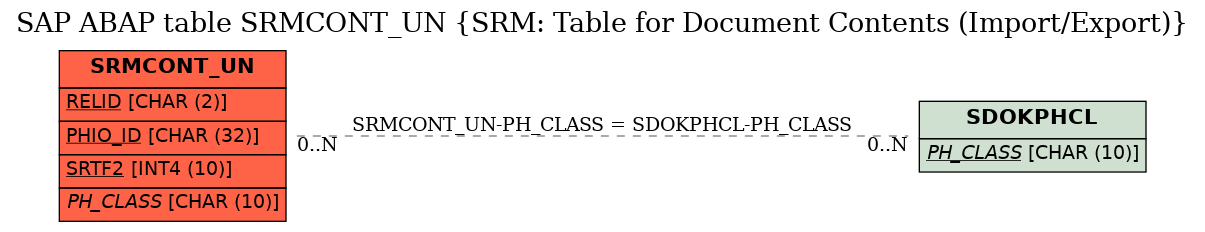

Transparent table	SRMCONT_UN	Table Relationship Diagram
Short Description	SRM: Table for Document Contents (Import/Export)

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	RELID	☑	INDX_RELID	SYCHAR02	CHAR	2	0	Region in IMPORT/EXPORT Data Table
2	PHIO_ID	☑	SDOK_PHID	SDOK_DOCID	CHAR	32	0	Physical document
3	SRTF2	☑	INDX_SRTF2	SYBIN4	INT4	10	0	Next record counter in EXPORT/IMPORT data tables
4	PH_CLASS	☐	SDOK_PHCL	SDOK_CLASS	CHAR	10	0	Physical document class	SDOKPHCL
5	CLUSTR	☐	INDX_CLSTR	SYBIN2	INT2	5	0	Length field for user data in EXPORT/IMPORT tables
6	CLUSTD	☐	INDX_CLUST	INDX_CLUST	LRAW	2886	0	Data field for IMPORT/EXPORT database tables

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SRMCONT_UN	PH_CLASS	SDOKPHCL	PH_CLASS	KEY	CN

History

Last changed by/on	SAP	20040312
SAP Release Created in	50A
