SAP ABAP Table SQLMZM (SQL Monitor: Measurements)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-DWB-TOO-RTA (Application Component) Runtime Analysis
     ⤷ SQLM_CORE (Package) SQL Monitor Core

Basic Data

Table Category	TRANSP	Transparent table

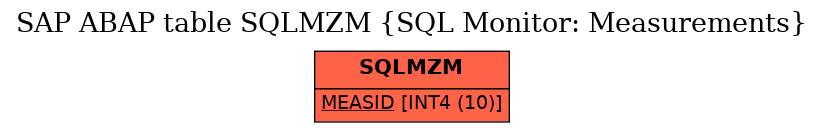

Transparent table	SQLMZM	Table Relationship Diagram
Short Description	SQL Monitor: Measurements

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MEASID	☑			INT4	10	0
2	KIND	☐	SQLMMEASURMENTKIND	SQLMMEASURMENTKIND	CHAR	1	0	Type of the measurment
3	SYSID	☐	SYST_SYSID	SYCHAR08	CHAR	8	0	ABAP System Field: Name of SAP System
4	CREATEDON	☐			INT4	10	0
5	CREATEDBY	☐	SYST_UNAME	SYCHAR12	CHAR	12	0	ABAP System Field: Name of Current User
6	PERIODSIZE	☐	SQLMPERIODSIZE		INT4	10	0	SQLM Size of History Time Period in Seconds
7	AGGRMEASID	☐			INT4	10	0
8	ROOTIDKIND	☐	SQLMROOTIDKIND	SQLMROOTIDKIND	CHAR	1	0	SQL Monitor Rootid Kind
9	PARAMVALUE	☐	SQLMPARAMVALUE		CHAR	255	0	RTM Kernel Test Parameter
10	MISSINGXCNT	☐	SQLMZMISSINGEXECNT	SQLMINTEGER	DEC	31	0	SQL Monitor: Missing Number of Executions
11	CURRRECCNT	☐	SQLMZCURRRECCNT	SQLMINTEGER	DEC	31	0	SQL Monitor: Number of Current Records
12	TIMERECCNT	☐	SQLMZTIMERECCNT	SQLMINTEGER	DEC	31	0	SQL Monitor: Number of Time Series Records
13	CURREXECNT	☐	SQLMZCURREXECNT	SQLMINTEGER	DEC	31	0	SQL Monitor: Number of Current Executions
14	TIMEEXECNT	☐	SQLMZTIMEEXECNT	SQLMINTEGER	DEC	31	0	SQL Monitor: Number of Time Series Executions

History

Last changed by/on	SAP	20141013
SAP Release Created in	740
