SAP ABAP Table SQLMSQ (SQL Monitor: Request / Snapshot)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷
BC-DWB-TOO-RTA (Application Component) Runtime Analysis
⤷
SQLM_CORE (Package) SQL Monitor Core
SAP_BASIS (Software Component) SAP Basis Component⤷
BC-DWB-TOO-RTA (Application Component) Runtime Analysis⤷
SQLM_CORE (Package) SQL Monitor Core
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | SQLMSQ |

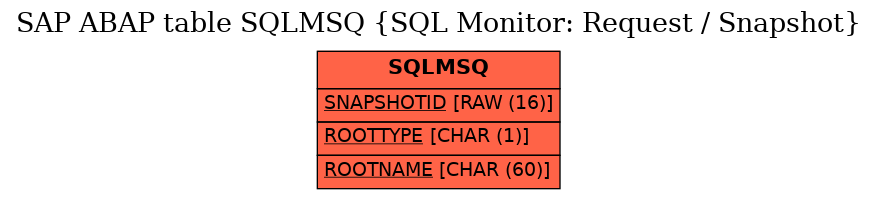

Table Relationship Diagram
|
| Short Description | SQL Monitor: Request / Snapshot |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | L | Table for storing temporary data, delivered empty |
| Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  SNAPSHOTID |
SQLMSNAPSHOTID | SYSUUID | RAW | 16 | 0 | SQL Monitor: Snapshot ID | ||
| 2 | .INCLUDE |
0 | 0 | SQL Monitor: Request Key | |||||
| 3 | ROOTTYPE |
SQLMROOTTYPE | SQLMROOTTYPE | CHAR | 1 | 0 | SQL Monitor: Request Type | ||
| 4 | ROOTNAME |
SQLMROOTNAME | CHAR | 60 | 0 | SQL Monitor: Request Entry Point (Transaction, etc.) | |||
| 5 | .INCLUDE |
0 | 0 | SQL Monitor: Request Payload | |||||
| 6 | WPTIMESUM |
SQLMREQWPTIMESUM | SQLMRUNTIME | DEC | 31 | 3 | SQL Monitor: Total Time in Workprocesses [ms] | ||
| 7 | DBTIMESUM |
SQLMREQDBTIMESUM | SQLMRUNTIME | DEC | 31 | 3 | SQL Monitor: Total Database Execution Time [ms] | ||
| 8 | ROLLAREACNT |
SQLMREQROLLAREACNT | INT4 | 10 | 0 | SQL Monitor: Number of Internal Sessions |
History
| Last changed by/on | SAP | 20141013 |
| SAP Release Created in | 740 |
